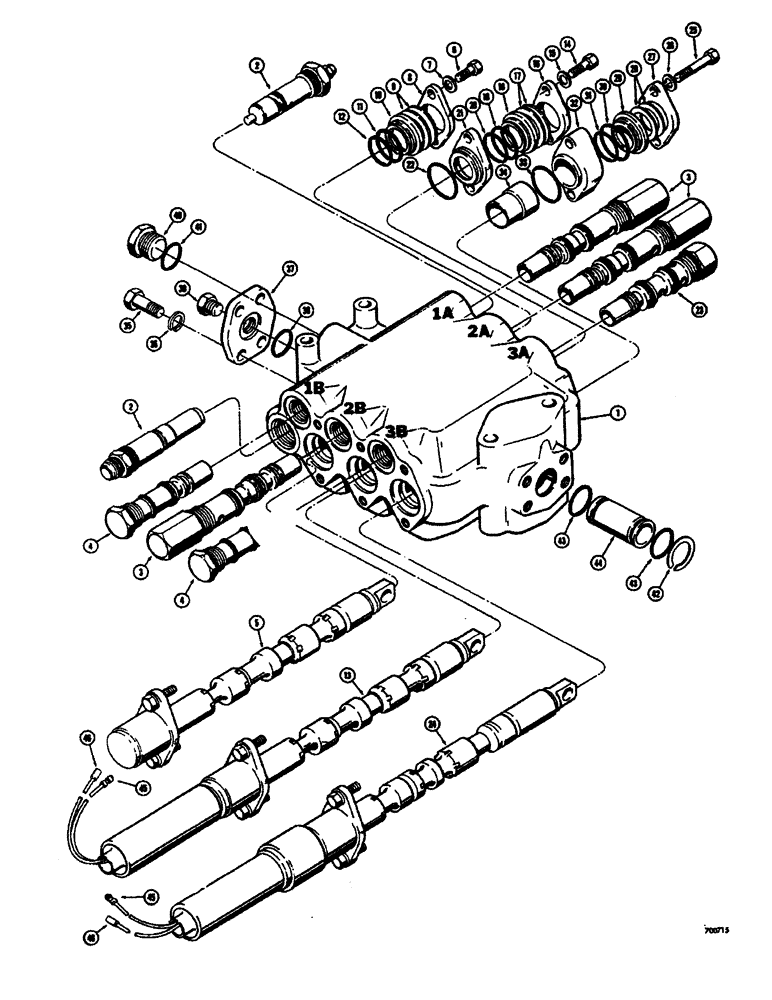

Запчасти Case W26B (436) - L46162 LOADER CONTROL VALVE (3 SPOOL) BEFORE TRACTOR SN. 9110116 (08) - HYDRAULICS

L46162

VALVE - loader control, 3 spool, Includes: Ref. 1 - 44

1шт.

i

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

2

L32872

LOCK VALVE

VALVE - man relief (Parts list figure 444)

1шт.

3

L32023

VALVE

- secondary relief (Parts list figure 446) Ports 1A, 2A & 2B

3шт.

4

L32021

VALVE - check (Parts list figure 358) Ports IB & 3B

2шт.

5

L32301

SPOOL

- clam (Parts list figure 444)

1шт.

5

L32302

SPOOL

- clam (Parts list figure 444)

1шт.

5

L32303

SPOOL

- clam (Parts list figure 444)

1шт.

5

L32304

SPOOL

- clam (Parts list figure 444)

1шт.

NSS

NOT SOLD SEPARAT

SEAL ASSEMBLY - Drott clam spool, Includes: Ref. 6 - 12

1шт.

6

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

7

92-5

LOCK WASHER,5/16"

med sect. 5/16"

2шт.

8

A15546

RETAINER

- wiper

1шт.

9

A25584

WIPER

- spool

2шт.

10

L32169

RETAINER

- seal

1шт.

11

L32171

O-RING

SEAL - "O" ring

1шт.

12

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

13

L32305

SPOOL

- loader tilt (Parts list figure 442)

1шт.

13

L32306

SPOOL

- loader tilt (Parts list figure 442)

1шт.

13

L32307

SPOOL

- loader tilt (Parts list figure 442)

1шт.

13

L32308

COIL ASSY.

SPOOL - loader tilt (Parts list figure 442)

1шт.

NSS

NOT SOLD SEPARAT

SEAL ASSEMBLY - tilt spool, Includes: Ref. 14 - 22

1шт.

14

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

15

92-5

LOCK WASHER,5/16"

med sect. 5/16"

2шт.

16

A15546

RETAINER

- wiper

1шт.

17

A25584

WIPER

- spool

2шт.

18

L32169

RETAINER

- seal

1шт.

19

L32171

O-RING

SEAL "O" ring

1шт.

20

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

21

L32170

HOUSING - retainer

1шт.

22

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

23

L32118

VALVE - check, regeneration (Parts list figure 446) Port 3A

1шт.

24

L33401

SPOOL

- loader lift (Parts list figure 440)

1шт.

NSS

NOT SOLD SEPARAT

SEAL ASSEMBLY - lift spool, Includes: Ref. 25 - 34

1шт.

25

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

2шт.

26

92-5

LOCK WASHER,5/16"

med sect. 5/16"

2шт.

27

A15546

RETAINER

- wiper

1шт.

28

A25584

WIPER

- spool

2шт.

29

L32169

RETAINER

- wiper

1шт.

30

L32171

O-RING

SEAL - "O" ring

1шт.

31

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

32

L31315

EXTENSION - seal

1шт.

33

A15529

O-RING,0.103" Thk x 1.925" ID, -135, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

34

L31291

SLEEVE - seal

1шт.

35

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

4шт.

36

92-7

LOCK WASHER,7/16"

med. sect. 7/16"

4шт.

37

A15548

COVER - valve port, L.H. side

1шт.

38

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

SEAL - "O" ring

1шт.

39

221-662

PLUG,Hex Hd, 1/4"-18

- pipe, hex. head

1шт.

40

9841223

PLUG,1-1/16" - 12 ORB

Valve housing, LH side, Incl. Ref 41 Hex Soc, 1 1/16"-12 ORB

1шт.

41

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

L32028

CARRIER

CARRY OVER - high pressure, Includes: Ref. 42 - 44

1шт.

42

L31814

RING - sleeve retaining

1шт.

43

D26819

O-RING,1.299" ID x 1.505" OD

SEAL - "O" ring

2шт.

44

L31816

SLEEVE

- high pressure cary over

1шт.

45

R18653

TERMINAL STRIP

CONNECTOR - electrical, male bullet (Short taper) If used

2шт.

46

A30366

CABLE

CONNECTOR - electrical, female bullet (If used)

2шт.

47

L10051

TERMINAL CONNECTOR,Male

CONNECTOR - electrical, bullet (Long taper) If used (Not shown) Male

4шт.
