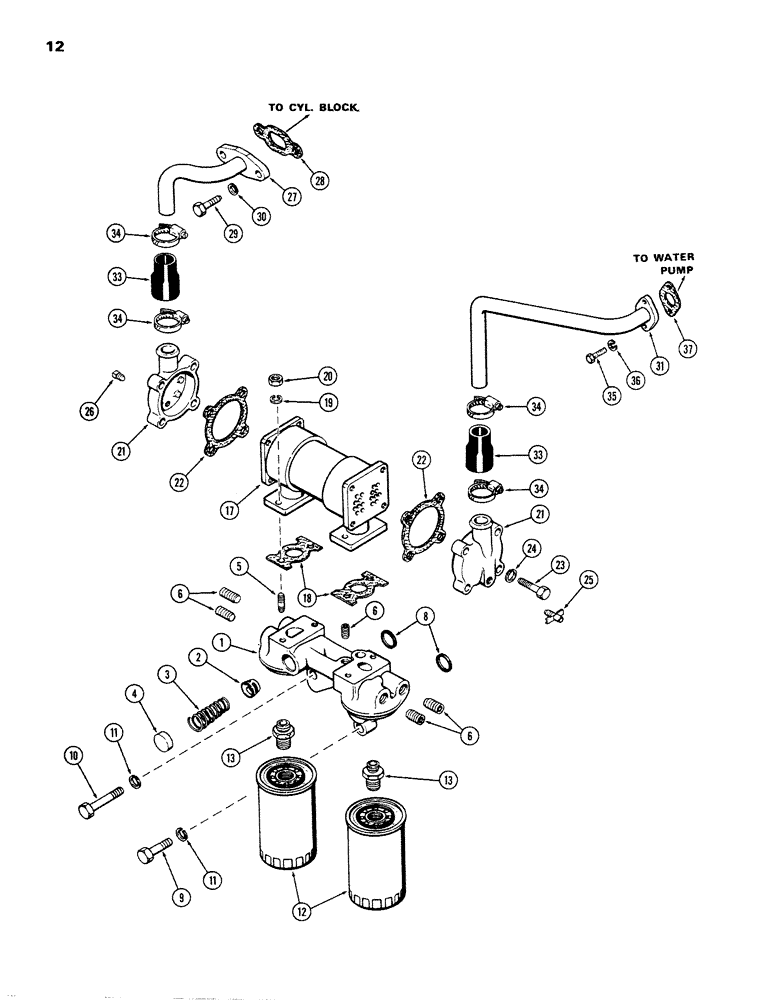

Запчасти Case W26B (012) - OIL FILTER & HEAT EXCHANGER, (504 BDT) DIESEL ENGINE, 1ST USED ENG. SER. NO. 2523871 (02) - ENGINE

1

A64107

BASE

ASSY. - oil filter, Includes: Ref. 2 - 6

1шт.

2

A21090

VALVE

- relief, filter

1шт.

3

A58669

SPRING

- Relief valve

1шт.

4

41-1020

PLUG,Cup, 1 1/4"

- (1-1/4" cup type)

1шт.

5

G11204

STUD

- (3/8" N.C. x 1-1/2") (Replaced A62234)

4шт.

6

221-844

PLUG,Hex Soc, 1/2"-14

- (1/2" P.T. square socket head)

5шт.

8

A64434

O-RING,0.93" ID x 1.142" x 0.106"

"O" RING - base to block (15/16 x 1-1/8 x 3/32")

2шт.

9

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

10

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- (1/2 x 3" N.C. hex)

1шт.

11

195-33

WASHER,1/2"

- (1/2 x 1-1/16 x 13 ga.)

2шт.

12

A64453

ENGINE OIL FILTER

ELEMENT - oil filter

2шт.

13

A64454

ADAPTER

-, Serial Range: filter-base

2шт.

17

A63917

COOLER

HEAT EXCHANGER - oil

1шт.

18

A65359

GASKET

- heat exchanger to filter base

2шт.

19

92-6

LOCK WASHER,3/8"

4шт.

20

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

4шт.

21

A64349

HOOD

BONNET - heat exchanger ends

2шт.

22

A63920

GASKET

- bonnet

2шт.

23

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- (3/8 x 1-1/2" N.C. hex.)

8шт.

24

92-6

LOCK WASHER,3/8"

8шт.

25

217-107

VALVE

DRAINCOCK - heat exchanger

1шт.

26

221-11

PLUG,Sq Hd, 1/8"-27

- (1/8" P.T. square head)

1шт.

27

A64350

TUBE

- heat, Serial Range: exchanger-block

1шт.

28

A58670

GASKET

- tube

1шт.

29

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

30

92-8

LOCK WASHER,1/2"

2шт.

31

A66714

TUBE

- heat exchanger water outlet to water pump (Replaces A64445)

1шт.

33

A64353

HOSE

- bonnets to water tubes

2шт.

34

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose (1-3/16" to 1-3/4")

4шт.

35

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

36

92-6

LOCK WASHER,3/8"

2шт.

37

A58680

OIL PAN GASKET SET

- tube

1шт.
