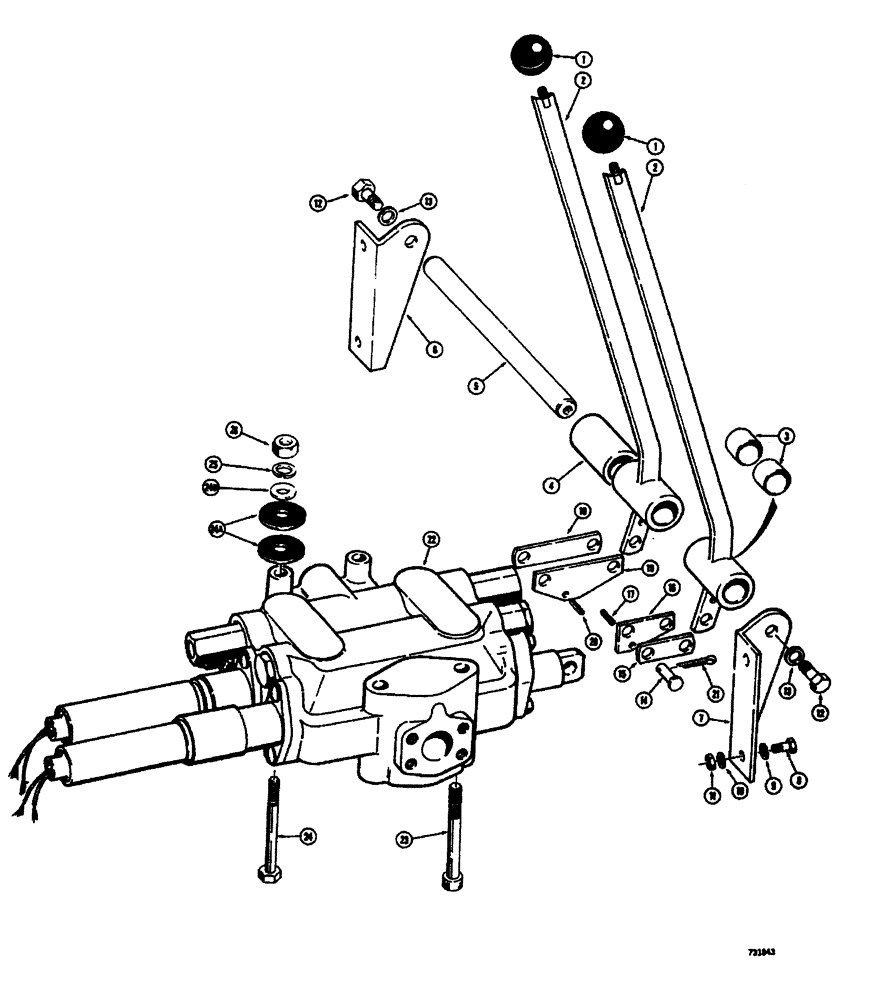

Запчасти Case W26B (426) - LOADER CONTROL VALVE AND LEVERS (2 SPOOL) (08) - HYDRAULICS

1

CAS31375

KNOB

- control lever, Includes: Ref. 2

2шт.

2

L13119

LEVER

- control, lift nad tilt (Handle from 3/8" ( mm) bar stock)

2шт.

2

L53556

LEVER

- control, lift and tilt (Handle from 1" (25 mm) tubing), Includes: Ref. 3

2шт.

3

A31172

BUSHING

- lever

2шт.

4

L13125

SPACER - control lever

1шт.

5

L13124

AXLE PIN

PIN - pivot, control lever

1шт.

6

L13118

BRACKET - lever mounting, L.H.

1шт.

7

L13117

BRACKET - lever mounting, R.H.

1шт.

8

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

9

95-6

WASHER,3/8"

- plain () 3/8"

4шт.

10

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

11

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

12

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

Pivot pin to mounting bracket Hex, 1/2"-13 x 1", G5, Full Thd

2шт.

13

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

2шт.

14

L13129

CLEVIS PIN,15.77mm OD x 41.15mm L

PIN - link to lever and valve

4шт.

15

L13130

LINK - lift control (used as outer link only before tractor Sn. 9110116, used as both inner & outer links on tractors Sn. 9110116 and after)

1-2шт.

L13131

LINK

ASSEMBLY - lift control, inner (used before tractor Sn. 9110116 only), Includes: Ref. 16 and 17

1шт.

16

NSS

NOT SOLD SEPARAT

LINK - lift control

1шт.

17

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

18

L13126

LINK - tilt control (used as outer link only before tractor Sn. 9110116, used as both inner & outer links on tractors Sn. 9110116 and after)

1-2шт.

L13127

LINK ASSEMBLY - tilt control, inner (Used before tractor Sn. 9110116 only), Includes: Ref. 19 and 20

1шт.

19

NSS

NOT SOLD SEPARAT

LINK - tilt control

1шт.

20

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

21

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

4шт.

22

REF

INSTRUCTION

VALVE - loader control, 2 spool (See figures 434 - 448 for proper valve)

1шт.

23

61-896

CAP SCREW - hex. socket head (1/2" - 13 NC x 6")

2шт.

24

13-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

2шт.

24a

L57117

WASHER

- rubber, valve mounting

8шт.

24b

95-8

WASHER,1/2"

plain 1/2"

4шт.

25

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

4шт.

26

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.
