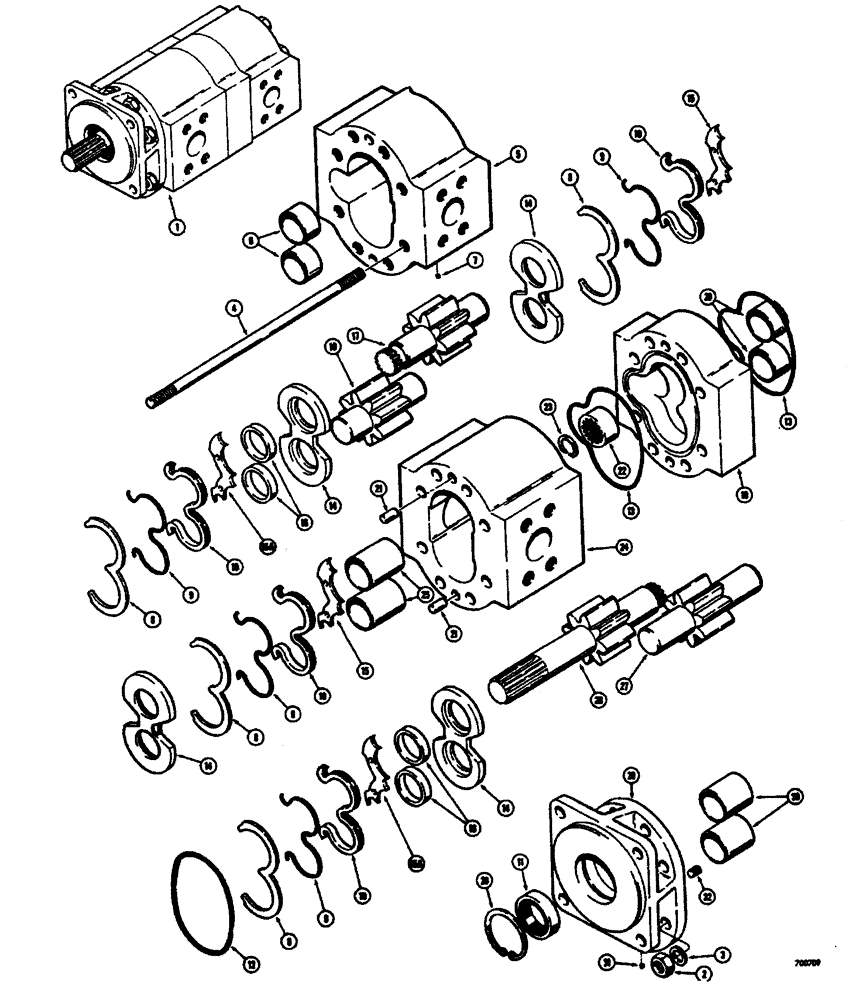

Запчасти Case W26B (422) - L40077 LOADER AND STEERING PUMP TYRONE # TP 20400-250-MD-1 (08) - HYDRAULICS

1

L40077

PUMP ASSEMBLY - hydraulic, loader and steering, Includes: Ref. 2 - 32

1шт.

2

L32823

NUT - hex., special (1/2" - 20 NF)

8шт.

3

A39046

WASHER,13.11mm ID x 22.23mm OD x 3.34mm Thk

- special

8шт.

4

L32831

BOLT

STUD - special, pump body (1/2" -20 NF)

8шт.

L32847

VALVE BODY

COVER ASSEMBLY - closed end, Includes: Ref. 5 and 6

1шт.

5

NSS

NOT SOLD SEPARAT

COVER - closed end

1шт.

6

L32840

BUSHING

- pump gear

2шт.

7

211-5

BALL,3/16" Dia

- steel (.) 3/16" Dia

1шт.

L32838

KIT

- repair, pump seal, Includes: Ref. 8 - 13

1шт.

8

D44102

RING

RETAINER - ring

4шт.

9

L32845

O-RING

- "O" ring, pump body

4шт.

10

D44099

RING

- back up

4шт.

11

D41418

SEAL

- pump drive shaft

1шт.

12

D43797

SEAL

- "O" ring, pump front cover

1шт.

13

L32861

O-RING

SEAL - "O" ring, bearing plate

2шт.

14

D42856

PLATE

- thrust

4шт.

15

D44100

PLATE

- isolation, bottom

2шт.

15a

D44101

PLATE

- isolation, top

2шт.

16

D43796

SPACER

RING - steel

4шт.

L32843

GEAR WHEEL

GEAR SET - drive and driven, closed end, Includes: Ref. 17 - 18

1шт.

17

NSS

NOT SOLD SEPARAT

GEAR - drive

1шт.

18

NSS

NOT SOLD SEPARAT

GEAR - driven

1шт.

L32848

PLATE ASSY.

PLATE ASSEMBLY - bearing, Includes: Ref. 19 - 20

1шт.

19

NSS

NOT SOLD SEPARAT

PLATE - bearing

1шт.

20

L32840

BUSHING

- pump shaft

2шт.

21

D41414

PIN

DOWEL - pump cover to body and bearing plate

6шт.

22

L32844

COUPLING

- pump drive shaft to drive gear

1шт.

23

L32860

RING, SNAP

SNAP RING - coupling

1шт.

L32841

BODY

ASSEMBLY - pump, Includes: Ref. 24 and 25

1шт.

24

NSS

NOT SOLD SEPARAT

BODY - pump

1шт.

25

L32840

BUSHING

- pump shaft

2шт.

L32842

GEAR-SET

GEAR SET - drive and driven, shaft end, Includes: Ref. 26 and 27

1шт.

26

NSS

NOT SOLD SEPARAT

GEAR AND SHAFT - drive

1шт.

27

NSS

NOT SOLD SEPARAT

GEAR - driven

1шт.

28

D41419

RING

SNAP RING - shaft retaining

1шт.

L32832

KIT

COVER ASSEMBLY - shaft end, Includes: Ref. 29 - 32

1шт.

29

NSS

NOT SOLD SEPARAT

COVER - pump, shaft end

1шт.

30

L32840

BUSHING

- pump shaft

2шт.

31

211-7

BALL,1/4" Dia

- steel 1/4" Dia

1шт.

32

221-849

PLUG,Hex Soc, 1/8"-27

- pipe, hex. socket head (1/8" NPT)

1шт.
