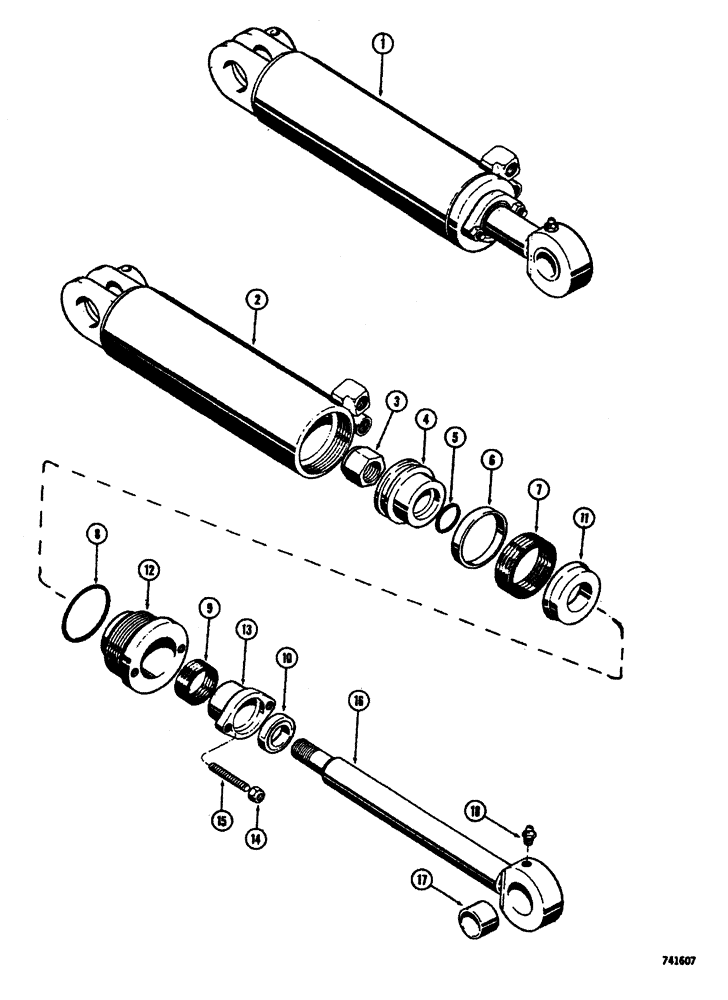

Запчасти Case W26B (420) - L32047 CLAM CYLINDER (08) - HYDRAULICS

1

L32047

CYLINDER - hydraulic, clam, 5-1/4" I.D. x 12" stroke (133 mm dia. x 304 mm stroke), Includes: Ref. 2 - 18

2шт.

2

L32048

CYLINDER,21.437" L

TUBE - cylinder

1шт.

3

131-27

NUT

- hex., lock (1-1/2" - 12 NF)

1шт.

4

L32056

PISTON

- half, nut end

1шт.

L32049

SEAL ASSY.

KIT - packing, gland type cylinder, Includes: Ref. 5 - 10

1шт.

5

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

SEAL - "O" ring, piston half

1шт.

6

L32050

RING

- wear piston

1шт.

7

L32052

RING

PACKING - piston

1шт.

8

L32053

O-RING,0.275" Thk x 5" ID, -429, Cl 5, 70 Duro

SEAL - "O" ring, gland

1шт.

9

L32054

RING

PACKING - gland

1шт.

10

L32055

RING

SEAL - rod wiper

1шт.

11

L32057

PISTON

- half, rod eye end

1шт.

12

L32058

GLAND - cylinder

1шт.

13

L32059

FLANGE

RETAINER - packing, gland

1шт.

14

131-28

LOCK NUT,1/2"-20, GB

NUT - hex., lock (1/2" - 20 NF)

2шт.

15

L32060

STUD

- flange mounting

2шт.

L32061

ROD ASSEMBLY - cylinder piston, Includes: Ref. 16 and 17

1шт.

16

NSS

NOT SOLD SEPARAT

ROD - cylinder piston

1шт.

17

L32062

BUSHING - rod eye

1шт.

18

219-11

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight (1/4" - 28 NF)

1шт.
