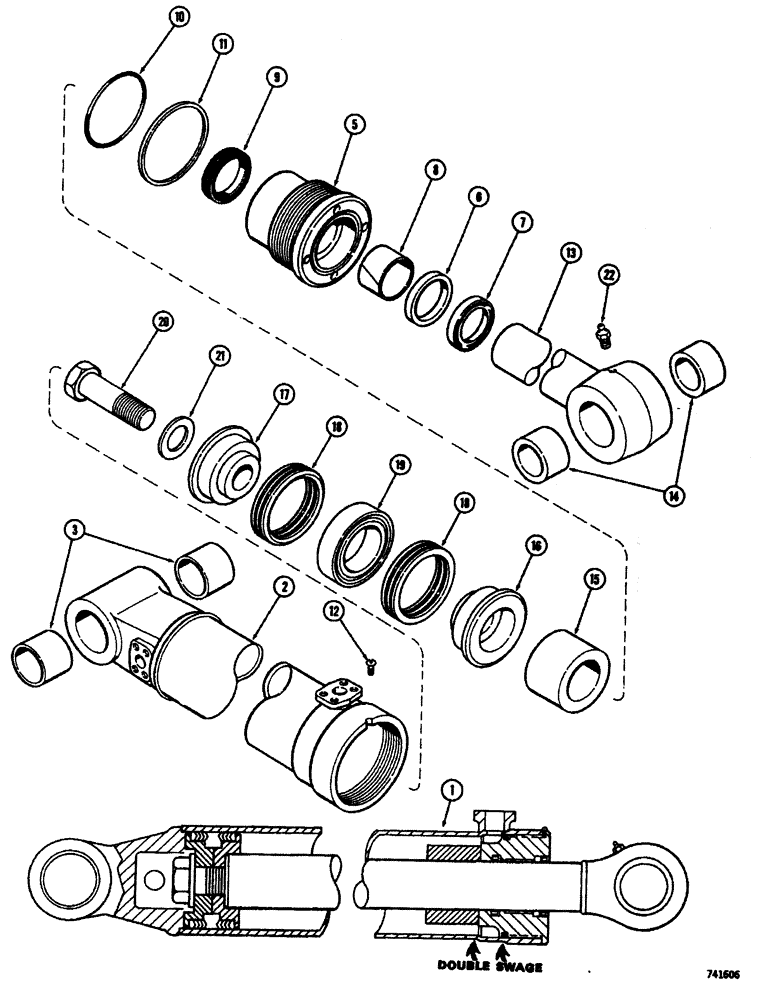

Запчасти Case W26B (418) - G34742 AND G34743 LOADER TILT CYLINDERS GLAND IS STAMPED WITH CYLINDER PART NUMBER (08) - HYDRAULICS

1

G34743

CYLINDER

ASSEMBLY - tilt, L.H. 5" dia. x 31-1/2" stroke (127 mm dia. x 800 mm stroke), Includes: Ref. 2 - 22

1шт.

1

G34742

CYLINDER BLOCK

CYLINDER ASSEMBLY - tilt, R.H. 5" dia. x 31-1/2" stroke (127 mm dia. x 800 mm stroke), Includes: Ref. 2 - 22

1шт.

2

G34745

TUBE ASSY. - cyl. body, left hand (double swage), Includes: Ref. 3

1шт.

2

G34744

TUBE

ASSY. - cyl. body, right hand (double swage), Includes: Ref. 3

1шт.

3

D49312

BUSHING

- tube

2шт.

G34751

SPARE PART

GLAND ASSEMBLY - cylinder, Includes: Ref. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND

1шт.

6

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

7

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

WIPER - piston rod, outer

1шт.

Part of Seal Kit, P/N G34537

1шт.

8

G34307

BEARING - center

1шт.

Part of Seal Kit, P/N G34537

1шт.

9

D45571

ROD

SEAL - piston rod

1шт.

Part of Seal Kit, P/N G34537

1шт.

10

238-5248

O-RING,0.139" Thk x 4.734" ID, -248, Cl 5, 75 Duro

0-RING - gland, Use with 468795-822924-823256-824039

1шт.

Part of Seal Kit, P/N G34537

1шт.

11

S92639

RING

- gland ""0"" ring back-up

1шт.

Part of Seal Kit, P/N G34537

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

13

G34142

ROD ASSEMBLY - piston, 2-1/2" dia. (63 mm), Includes: Ref. 14

1шт.

14

D49312

BUSHING

- piston rod

2шт.

15

D49333

SPACER - piston

1шт.

16

S220006

PISTON

- split (rod end)

1шт.

17

D49335

PISTON

- split (bolt end)

1шт.

18

D47206

PACKING

ASSY. - piston ("V" type)

2шт.

Part of Seal Kit, P/N G34537

1шт.

19

D47211

BEARING WASHER,95.28mm ID x 126.69mm OD x 19mm Thk

RING - center bearing

1шт.

20

28-2456

BOLT,Hex, 1-1/2" - 12 x 3-1/2", Gr 8

- piston

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.)

1шт.

G34537

SEAL

KIT - cylinder repair, Includes: Ref. 7 - 11 and 18

1шт.

G100800

SEAL

- piston rod (Service option -extreme heat or cold)

1шт.
