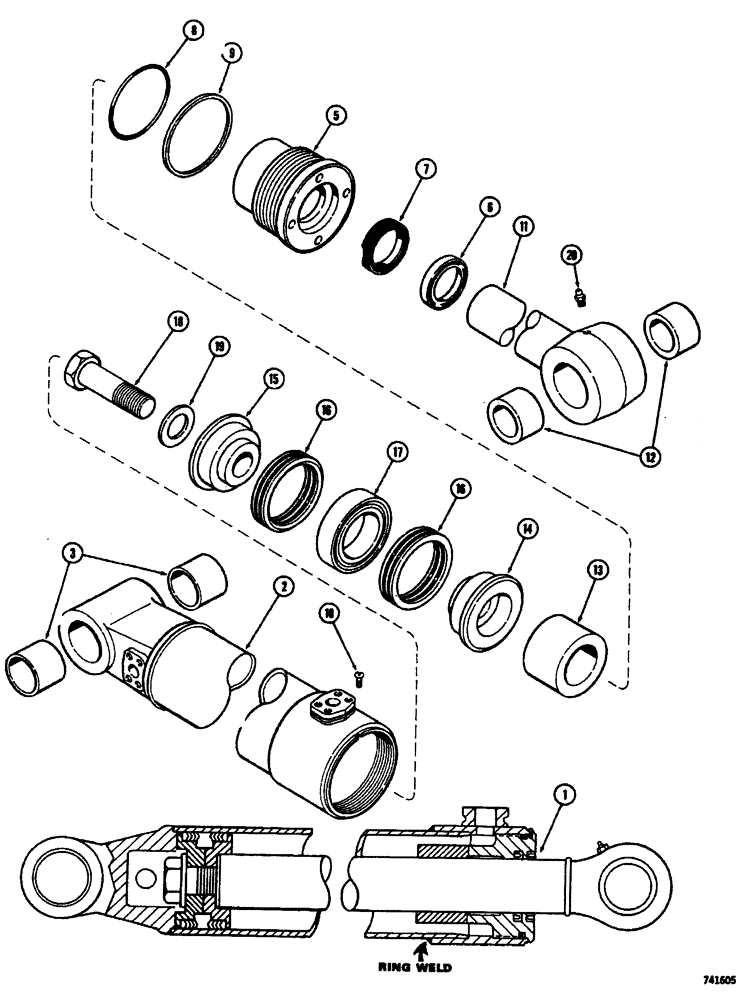

Запчасти Case W26B (416) - G32783 AND G32784 LOADER TILT CYLINDERS GLAND HAS U-TYPE OUTER ROD WIPER (08) - HYDRAULICS

1

G32783

CYLINDER

ASSEMBLY - tilt, L.H. 5" dia. x 31-1/2" stroke (127 mm dia. x 800 mm stroke)

1шт.

1

G32784

CYLINDER ASSEMBLY - tilt, R.H. 5" dia. x 31-1/2" stroke (127 mm dia. x 800 mm stroke)

1шт.

2

D49336

CYLINDER

TUBE ASSY. - cyl. body, left hand (ring weld)

1шт.

2

D49337

CYLINDER

TUBE ASSY. - cyl. body, right hand (ring weld)

1шт.

3

D49312

BUSHING

- cylinder tube

2шт.

G32742

GLAND

ASSEMBLY - cylinder

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND

1шт.

6

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

WIPER - piston rod, outer

1шт.

Part of Seal Kit, P/N G32184

1шт.

7

D45571

ROD

SEAL - piston rod

1шт.

Part of Seal Kit, P/N G32184

1шт.

8

G10347

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

0-RING - gland

1шт.

Part of Seal Kit, P/N G32184

1шт.

9

G32105

RING,126.42mm ID x 132.52mm OD x 1.4mm Thk

- gland "O" ring back-up

1шт.

Part of Seal Kit, P/N G32184

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self-tapping)

1шт.

11

D49327

ROD ASSEMBLY - piston, 2-1/2" dia. (63 mm)

1шт.

12

D49312

BUSHING

- piston rod

2шт.

13

D49333

SPACER - piston

1шт.

14

D49334

PISTON

- split (rod end)

1шт.

15

D49335

PISTON

- split (bolt end)

1шт.

16

D47206

PACKING

ASSY. - piston ("V" type)

2шт.

Part of Seal Kit, P/N G32184

1шт.

17

D47211

BEARING WASHER,95.28mm ID x 126.69mm OD x 19mm Thk

RING - center bearing

1шт.

18

28-2456

BOLT,Hex, 1-1/2" - 12 x 3-1/2", Gr 8

- piston

1шт.

19

NLS

NO LONGER SERVICED

- hardened

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.)

1шт.

G32184

REPAIR KIT

SEAL KIT - cylinder repair, Includes: Ref. 6 - 9 and 16

1шт.

G100800

SEAL

- piston rod (Service option -extreme heat or cold)

1шт.
