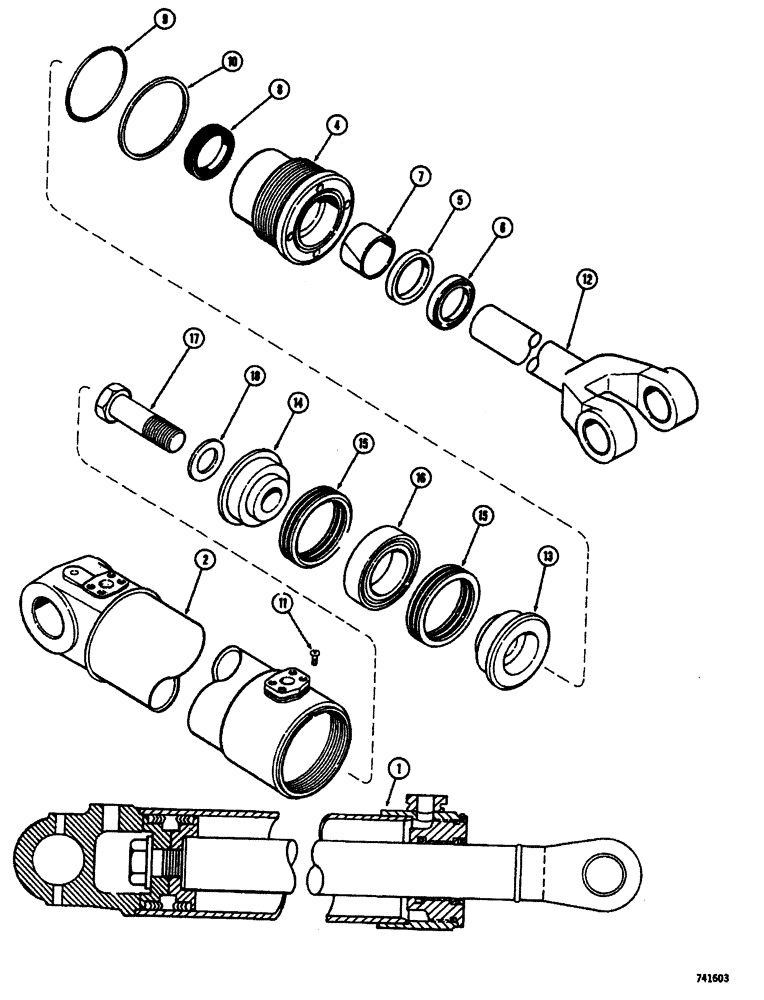

Запчасти Case W26B (412) - G34650 LOADER LIFT CYLINDER GLAND IS STAMPED WITH CYLINDER PART NUMBER (08) - HYDRAULICS

1

G34650

CYLINDER BLOCK

CYLINDER ASSEMBLY - lift, 6" dia. X 34 - 7/8" stroke (152 mm dia. x 885 mm stroke), Includes: Ref. 2 - 18

2шт.

2

G34761

TUBE,46.12" L

- cylinder body

1шт.

G34568

GLAND

ASSEMBLY - cylinder, Includes: Ref. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND

1шт.

5

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

6

D95148

WIPER SEAL

WIPER - piston rod, outer

1шт.

Part of Seal Kit, P/N G34569

1шт.

7

G34313

BEARING

- center

1шт.

Part of Seal Kit, P/N G34569

1шт.

8

D45572

ROD

SEAL - piston rod

1шт.

Part of Seal Kit, P/N G34569

1шт.

9

A28239

O-RING,0.139" Thk x 5.984" ID, -258, Cl 5, 75 Duro

0-RING - gland

1шт.

Part of Seal Kit, P/N G34569

1шт.

10

G32649

WASHER

RING - gland "O" ring back-up

1шт.

Part of Seal Kit, P/N G34569

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

12

G34759

ROD

- piston, 3" dia. (76 mm)

1шт.

13

D49317

PISTON ASSY.

PISTON - split (rod end)

1шт.

14

D49318

PISTON

- split (bolt end)

1шт.

15

D49321

PACKING

ASSY. - piston ("V" type)

2шт.

Part of Seal Kit, P/N G34569

1шт.

16

D49320

RING

- center bearing

1шт.

17

28-2456

BOLT,Hex, 1-1/2" - 12 x 3-1/2", Gr 8

- piston

1шт.

18

G32666

WASHER

- hardened

1шт.

G34569

SEAL

KIT - cylinder repair, Includes: Ref. 6 - 10 and 15

1шт.

G100802

SEAL

- piston rod (Service option -extreme heat or cold)

1шт.
