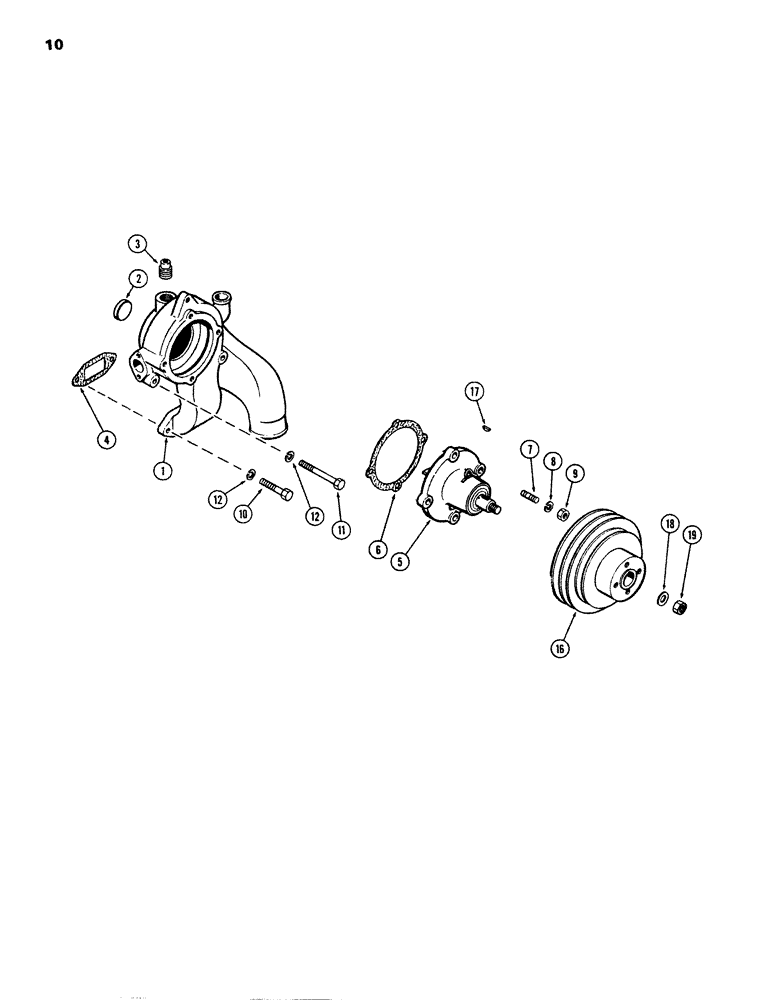

Запчасти Case W26B (010) - WATER PUMP, (504 BDT) DIESEL ENGINE (02) - ENGINE

1

A58856

HOUSING

BODY ASSY. - water pump, Includes: Ref. 2

1шт.

2

A58568

PLUG,Cup, 1 3/8", Stainless

PLUG - (1-3/8" cup type)

1шт.

3

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - (1/2" P.T., sq. hd.)

1шт.

4

A58649

GASKET

GASKET -, Serial Range: body-block

1шт.

5

A152153

PUMP

PUMP ASSY. - water

1шт.

5

1342818C1R

REMAN-WATER PUMP

Remanufactured Water Pump

1шт.

5

A48335

CORE-WATER PUMP

Return Part Number, Water Pump

1шт.

6

A58646

GASKET

GASKET -, Serial Range: pump-body

1шт.

7

A62234

STUD

STUD - pump to body (3/8" N.C. x 1-5/16")

4шт.

8

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

9

25-146

JAM NUT,Jam, 3/8"-16, G5

NUT - jam, 3/8" N.C hex.

4шт.

10

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

BOLT, Hex, 3/8"-16 x 1 1/8", G5, Full Thd

2шт.

11

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

BOLT - 3/8 x 3-3/4" N.C. hex.

2шт.

12

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

16

A58650

PULLEY

PULLEY - drive belt, water pump

1шт.

17

126-116

WOODRUFF KEY,#9, 3/16" x 3/4", HT

WOODRUFF KEY, , Pulley to pump shaft #9, 3/16" x 3/4", HT

1шт.

18

A58651

WASHER

WASHER - pulley nut (1/2 x 1-1/16 x 1/8")

1шт.

19

131-1106

LOCK NUT,1/2"-20, GB

NUT, LOCK, , Pulley 1/2"-20, GB

1шт.
