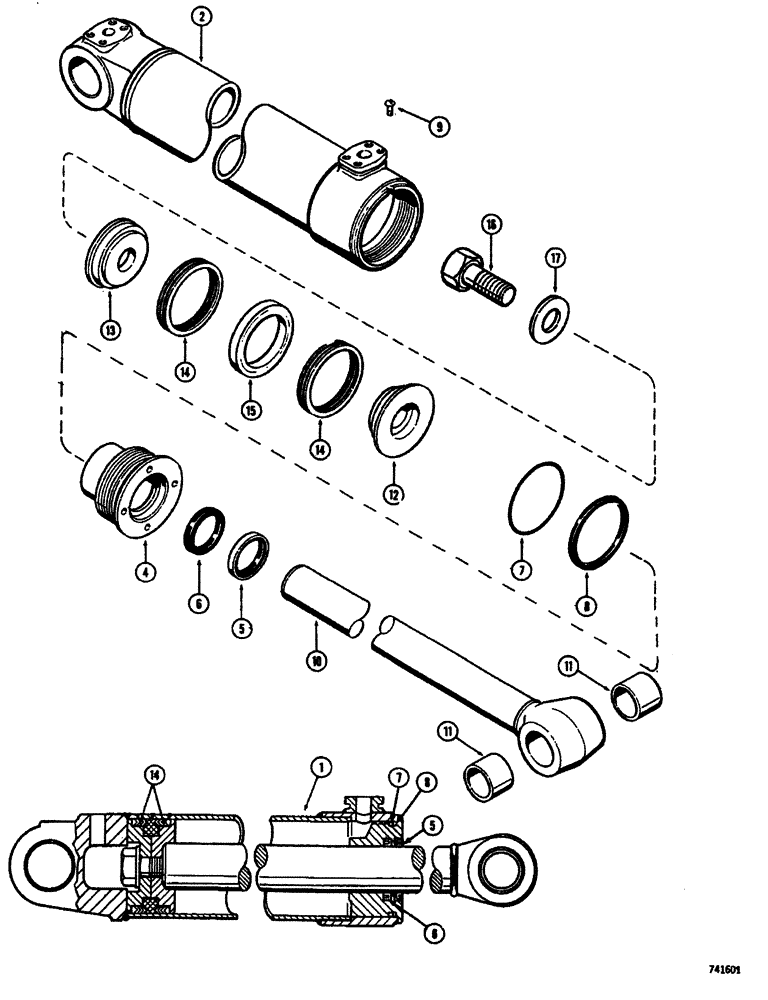

Запчасти Case W26B (408) - G32830 LOADER LIFT CYLINDER GLAND HAS SOLID OUTER ROD WIPER-NO IDENTIFICATION RING (08) - HYDRAULICS

1

G32830

CYLINDER BLOCK

CYLINDER ASSEMBLY - lift, 6" dia. x 34 - 67/8" stroke (152 mm dia.x 885 mm stroke), Includes: Ref. 2 - 17

2шт.

2

G32833

TUBE - cylinder body

1шт.

G32796

GLAND

ASSEMBLY - with bushing, Includes: Ref. 4 - 8

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND

1шт.

5

D95148

WIPER SEAL

WIPER - piston rod, outer

1шт.

Part of Seal Kit, P/N G32667

1шт.

6

D45572

ROD

SEAL - piston rod

1шт.

Part of Seal Kit, P/N G32667 and Service option - extreme heat or cold, P/N G100802

1шт.

7

A28239

O-RING,0.139" Thk x 5.984" ID, -258, Cl 5, 75 Duro

0-RING - gland

1шт.

Part of Seal Kit, P/N G32667

1шт.

8

G32649

WASHER

RING - gland "O" ring backup

1шт.

Part of Seal Kit, P/N G32667

1шт.

9

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self-tapping)

1шт.

10

D49309

SPARE PART

ROD ASSEMBLY - piston, 3" dia. (76 mm), Includes: Ref. 11

1шт.

11

D49312

BUSHING

- piston rod

2шт.

12

D49317

PISTON ASSY.

PISTON - split (rod end)

1шт.

13

D49318

PISTON

- split (bolt end)

1шт.

14

D49321

PACKING

ASSY. - piston ("V" type)

2шт.

Part of Seal Kit, P/N G32667

1шт.

15

D49320

RING

- center bearing

1шт.

16

28-2456

BOLT,Hex, 1-1/2" - 12 x 3-1/2", Gr 8

- piston

1шт.

17

G32666

WASHER

- hardened

1шт.

G32667

CYLINDER

SEAL KIT - cylinder repair, Includes: Ref. 5 - 8 and 14

1шт.

G100802

SEAL

- piston rod (Service option - extreme heat or cold)

1шт.
