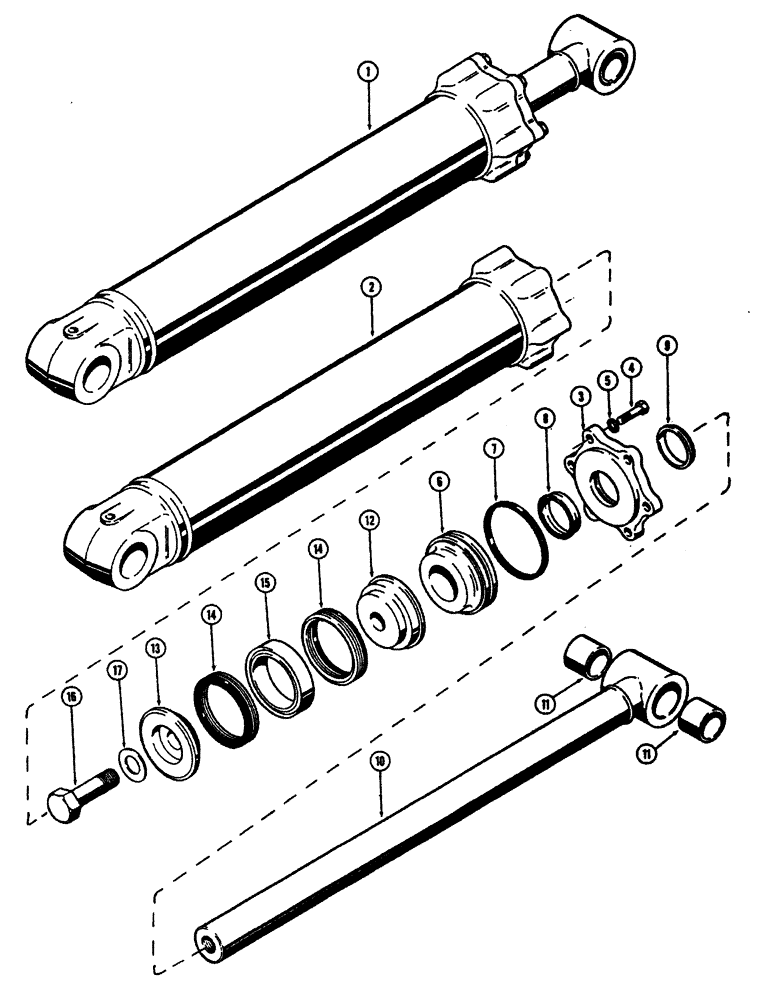

Запчасти Case W26B (406) - D49308 LOADER LIFT CYLINDER WITH BOLT ON TYPE GLAND BEFORE TRACTOR SN 9107499 (08) - HYDRAULICS

1

D49308

CYLINDER

ASSEMBLY - lift, 6" dia. x 34-7/8" stroke (152 mm dia. x 885 mm stroke), Includes: Ref. 2 - 17

2шт.

2

D49322

TUBE - cylinder body

1шт.

3

D49314

CAP - cylinder, gland retaining

1шт.

4

14-1244

BOLT,Hex, 3/4" - 16 x 2-3/4", Gr 5

- cyl. cap (3/4 x 2-3/4" N.F. hex.)

6шт.

5

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

6шт.

6

D49316

GLAND

ASSY. - packing

1шт.

7

D49315

SEAL ASSY.

RING - gland sealing

1шт.

Part of Seal Kit, P/N G32456

1шт.

8

D45572

ROD

SEAL - piston rod

1шт.

Part of Seal Kit, P/N G32456

1шт.

9

D46180

WIPER

- piston rod, outer (step type)

1шт.

Part of Seal Kit, P/N G32456

1шт.

10

D49309

SPARE PART

ROD ASSEMBLY - piston, 3" dia. (76 mm), Includes: Ref. 11

1шт.

11

D49312

BUSHING

- piston rod

2шт.

12

D49317

PISTON ASSY.

PISTON - split (rod end)

1шт.

13

D49318

PISTON

- split (bolt end)

1шт.

14

D49321

PACKING

PACKNG ASSY. - piston ("V" type)

2шт.

Part of Seal Kit, P/N G32456

1шт.

15

D49320

RING

- center bearing

1шт.

16

D36104

BOLT

- piston (1-1/2 x 3-1/2" N.F. hex.)

1шт.

17

D36478

WASHER

- hardened

1шт.

G32456

PACKAGE, REPAIR

SEAL KIT - cylinder repair, Includes: Ref. 7, 8, 9 and 14

1шт.

G100802

SEAL

- piston rod (Service option -extreme heat or cold)

1шт.
