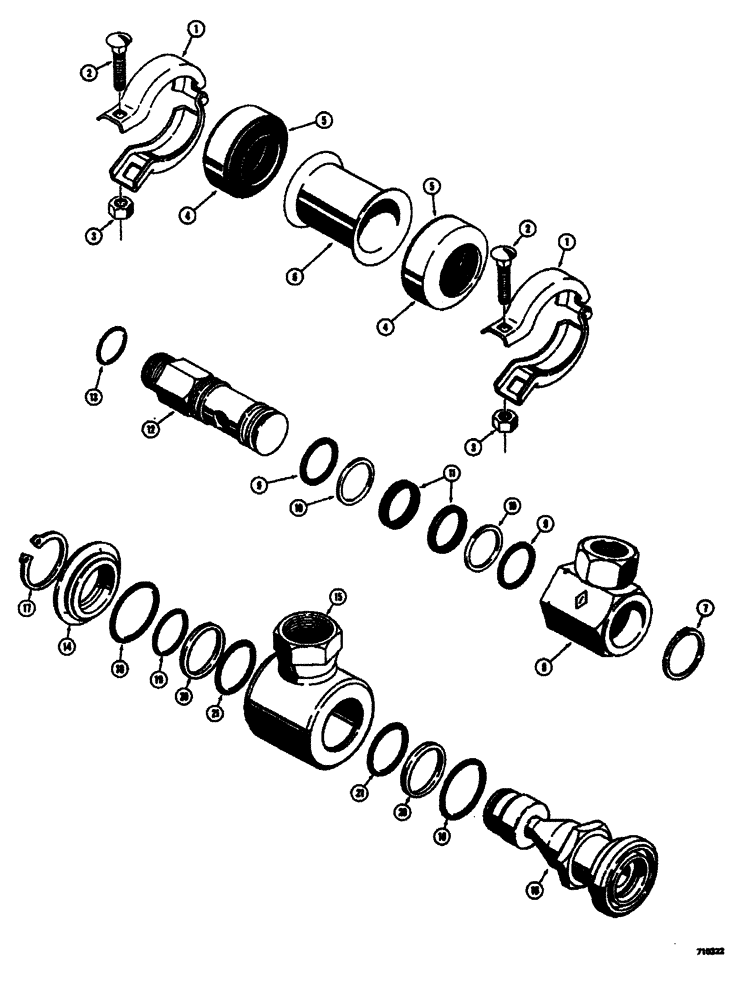

Запчасти Case W26B (404) - MARMAN TUBE COUPLINGS AND SWIVEL JOINTS L12284 MARMAN TUBE COUPLING (STRAIGHT) (08) - HYDRAULICS

L12284

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - Marman, tube joint (Straight), Includes: Ref. 1 - 6

1шт.

1

L32240

COUPLING - Marman, tube joint

2шт.

2

111-207

CARRIAGE BOLT,Short NK, 5/16"-18 x 2", G2

BOLT - carriage (5/16" - 18 NC x 2")

2шт.

3

231-1445

NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

2шт.

4

L32241

RETAINER

- gasket

2шт.

5

L32242

GASKET

- coupling

2шт.

6

NSS

NOT SOLD SEPARAT

SLEEVE - coupling

1шт.

L13139

JOINT TURNING

JOINT ASSEMBLY - swivel, L13139, Includes: Ref. 7 - 13

1шт.

7

R13338

SNAP RING,#150, Ext

Ring, Snap, , L13139 swivel joint #150, Ext

1шт.

8

NSS

NOT SOLD SEPARAT

HOUSING - swivel joint, L13139

1шт.

L32159

SEAL KIT

SEAL KIT - swivel joint, L13139, Includes: Ref. 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - dust, L13139 swivel joint

2шт.

10

NSS

NOT SOLD SEPARAT

WASHER - teflon, L13139 swivel joint

2шт.

11

NSS

NOT SOLD SEPARAT

RING - quad type, L13139 swivel joint

2шт.

12

NSS

NOT SOLD SEPARAT

SHAFT - swivel joint, L13139

1шт.

13

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O" ring, L13139 swivel joint

1шт.

L13140

SPARE PART

JOINT ASSEMBLY - swivel, L13140, Includes: Ref. 7 - 13

1шт.

7

D23191

SNAP RING,#200, Ext

Ring, Snap, , L13140 swivel joint #200, Ext

1шт.

8

NSS

NOT SOLD SEPARAT

HOUSING - swivel joint, L13140

1шт.

L32160

SEAL KIT

SEAL KIT - swivel joint, L13140, Includes: Ref. 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - dust, L13140 swivel joint

2шт.

10

NSS

NOT SOLD SEPARAT

WASHER - teflon, L13140 swivel joint

2шт.

11

NSS

NOT SOLD SEPARAT

RING - quad type, L13140 swivel joint

2шт.

12

NSS

NOT SOLD SEPARAT

SHAFT - swivel joint, L13140

1шт.

13

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

SEAL - "O" ring, L13140 swivel joint

1шт.

L13160

COUPLING, BREAK AWAY

JOINT ASSEMBLY - swivel, L13160 and L15238, Includes: Ref. 8 - 13

6шт.

L15238

JOINT ASSEMBLY - swivel, L13160 and L15238, Includes: Ref. 8 - 13

2шт.

8

NSS

NOT SOLD SEPARAT

HOUSING - swivel joint (Not illustrated), L13160 and L15238

1шт.

L32158

SEAL KIT

SEAL KIT - swivel joint, L13160 and L15238, Includes: Ref. 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - dust, L13160 and L15238 swivel joints

2шт.

10

NSS

NOT SOLD SEPARAT

WASHER - teflon, L13160 and L15238 swivel joints

2шт.

11

NSS

NOT SOLD SEPARAT

RING - quad type, L13160 and L15238 swivel joints

2шт.

12

NSS

NOT SOLD SEPARAT

SHAFT - swivel joint (Not illustrated), L13160 and L15238

1шт.

13

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

SEAL - "O" ring (Used in L13160 joint only), L13160 and L15238 swivel joints

1шт.

L50217

HYDRAULIC SWIVEL

JOINT ASSEMBLY - swivel, L50217, Includes: Ref. 14 - 21

6шт.

14

NSS

NOT SOLD SEPARAT

CAP - protection, L50217 swivel joint

1шт.

15

NSS

NOT SOLD SEPARAT

HOUSING - swivel joint, L50217

1шт.

16

NSS

NOT SOLD SEPARAT

SHAFT - swivel joint, L50217

1шт.

L33801

KIT

SEAL KIT - swivel joint, L50217, Includes: Ref. 17 - 21

1шт.

17

NSS

NOT SOLD SEPARAT

RING - retaining, protection cap, L50217 swivel joint

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL - "O" ring, external, L50217 swivel joint

2шт.

19

NSS

NOT SOLD SEPARAT

SEAL - "O" ring, internal (Protection cap), L50217 swivel joint

1шт.

20

NSS

NOT SOLD SEPARAT

RING - backup, pressure seal, L50217 swivel joint

2шт.

21

NSS

NOT SOLD SEPARAT

SEAL - "O" ring, internal pressure, L50217 swivel joint

2шт.
