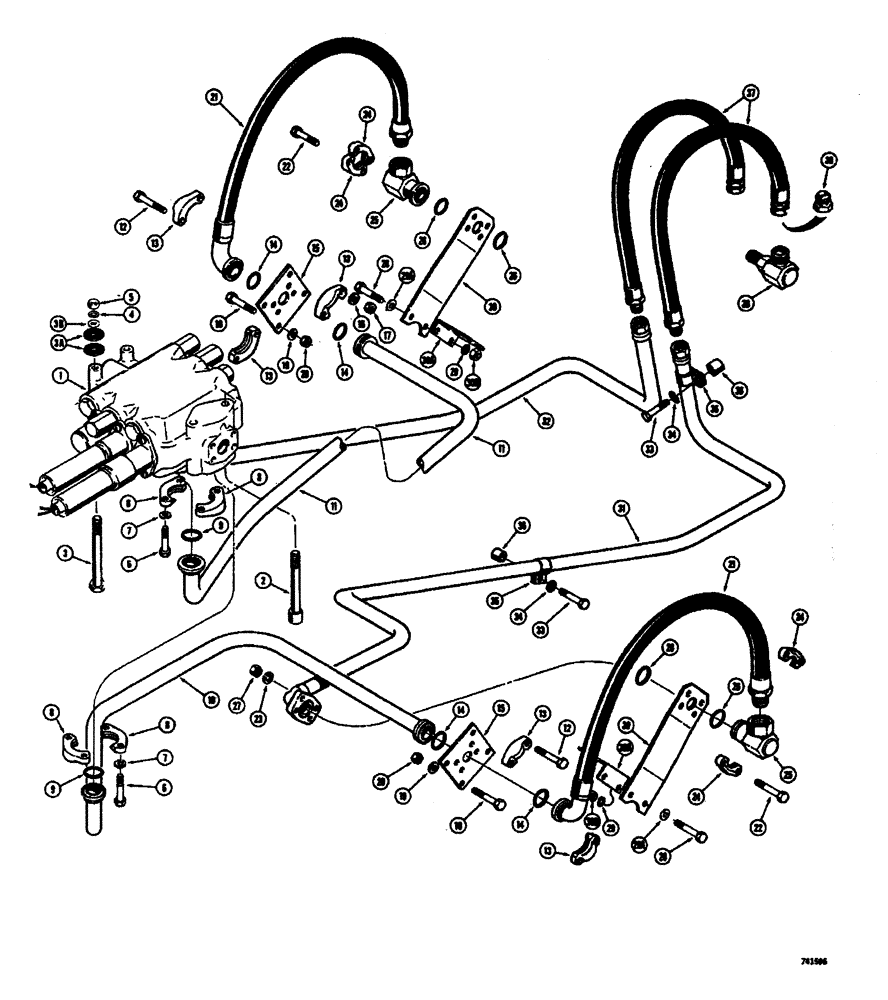

Запчасти Case W26B (402) - LOADER CLAM BUCKET HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - Idr. control, 3 spool (See figures 436 and 438 or figure 450 for proper valve)

1шт.

2

61-896

CAP SCREW - hex. socket head (1/2" - 13 NC x 6")

2шт.

3

13-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

2шт.

3a

L57117

WASHER

- rubber, valve mounting

8шт.

3b

95-8

WASHER,1/2"

plain 1/2"

4шт.

4

92-8

LOCK WASHER,1/2"

4шт.

5

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

6

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

8шт.

7

92-7

LOCK WASHER,7/16"

8шт.

8

A12301

CLAMP,Half

- split, 1-1/4" (31 mm)

4шт.

9

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

SEAL - "O" ing

2шт.

10

L13170

TUBE

- valve to clam cylinder, R.H. (At valve)

1шт.

L15086

TUBE

- valve to clam cylinder, L.H. (At valve) When stock is exhausted, order L52570 tube for service

1шт.

11

L52570

TUBE,1.25" OD

- valve to clam cylinder, L.H. (At valve)

1шт.

12

13-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

8шт.

13

A12306

FLANGE

- split, 1" (25 mm)

8шт.

14

A7560

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

SEAL - "O" ring

4шт.

15

L13171

BRACKET - hose mountng

2шт.

16

92-6

LOCK WASHER,3/8"

8шт.

17

25-106

NUT,3/8"-16, G5

- hex. (3/8 " - 16 NC)

8шт.

18

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

8шт.

19

92-6

LOCK WASHER,3/8"

8шт.

20

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

8шт.

21

L13163

HOSE

- valve to clam cylinder, intermediate

2шт.

22

13-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

8шт.

23

92-6

LOCK WASHER,3/8"

8шт.

24

A12306

FLANGE

- split, 1" (25 mm)

4шт.

25

L13160

COUPLING, BREAK AWAY

SWIVEL - hose to tilt cylinder (Without external seals) Parts list figure 404 (Order L50217 for service)

2шт.

25

L50217

HYDRAULIC SWIVEL

SWIVEL - hose to tilt cylinder (With external seals) Not shown (Parts list figure 404)

2шт.

26

A7560

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

SEAL - "O" ring

4шт.

27

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

8шт.

28

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

29

92-8

LOCK WASHER,1/2"

4шт.

29a

95-8

WASHER,1/2"

flat 1/2"

4шт.

30

L15233

BRACKET - hose, intermediate hose to lift frame

2шт.

30a

L59717

BRACKET - hose bracket to lift arm

2шт.

308

25-108

NUT,1/2"-13, G5

- hex., 1/2" - 13 NC

4шт.

31

L15236

TUBE - valve to clam cylinder, R.H. (Intermediate)

1шт.

32

L15237

TUBE - valve to clam cylinder, L.H. (Intermediate)

1шт.

33

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

HHCS - 3/8" - 16 NC x 3/8"

4шт.

34

92-6

LOCK WASHER,3/8"

4шт.

35

A14183

CLAMP - tube

4шт.

36

L15232

SPACER - tube clamp

4шт.

37

L15235

HOSE - valve to clam cylinder, at cylinder, 54" long (1371 mm)

2шт.

38

L15238

FITTING - swivel type, 90 degrees (Parts list figure 404)

2шт.

39

218-779

PLUG,1 5/16"-12, 37 Degree

Hose end (Used with Clam bucket removed) 1 5/16"-12, 37º

2шт.
