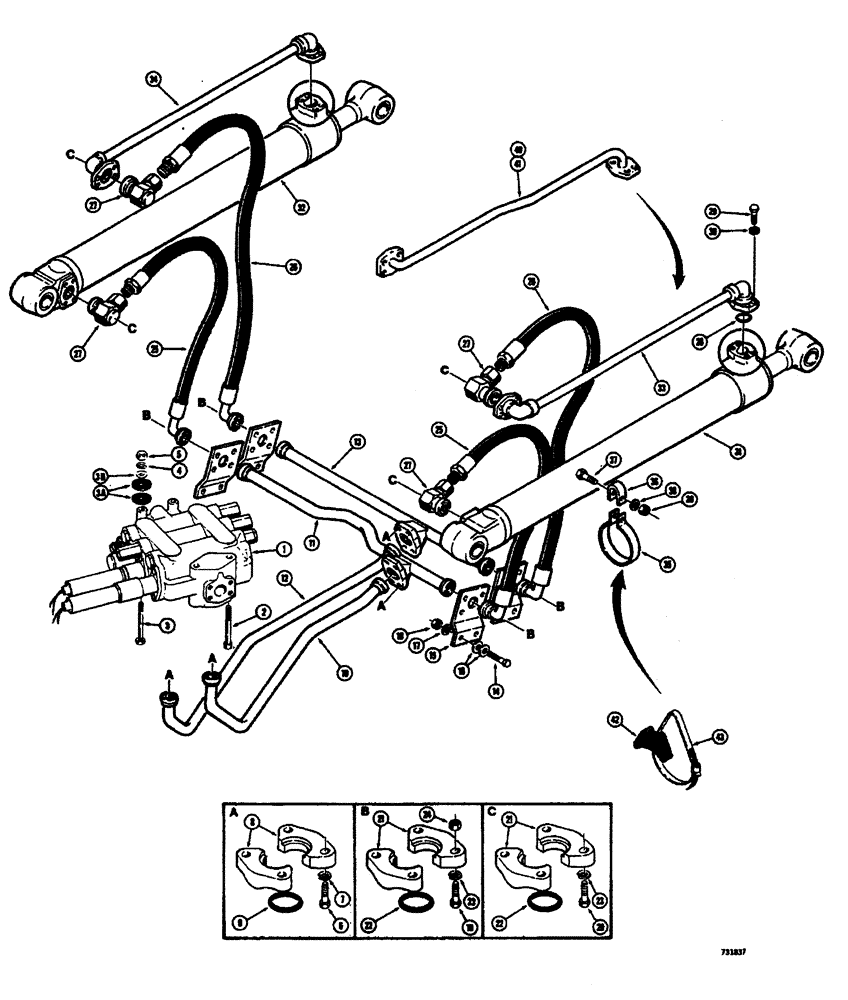

Запчасти Case W26B (398) - LOADER BUCKET HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - hydraulic, loader control (See figures 434 - 438 and 448 - 450 for proper valve)

1шт.

2

61-896

CAP SCREW - hex. socket head (1/2" - 13 NC x 6")

2шт.

3

13-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

2шт.

3a

L57117

WASHER

- rubber, valve mounting

8шт.

3b

95-8

WASHER,1/2"

plain 1/2"

4шт.

4

92-8

LOCK WASHER,1/2"

4шт.

5

25-108

NUT,1/2"-13, G5

- hex. (1/2"- 13 NC)

4шт.

6

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

16шт.

7

92-7

LOCK WASHER,7/16"

16шт.

8

A12301

CLAMP,Half

- split, 1-1/4" (31 mm)

8шт.

9

A41162

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

SEAL - "O" ring

4шт.

10

L13990

TUBE

- valve to tilt cylinder manifold, closed end

1шт.

11

L13991

TUBE - manifold, tilt cylinder (Closed end) 32.12, 1.5" L

1шт.

12

L13992

TUBE

- valve to tilt cylinder manifold, rod end

1шт.

13

L13993

TUBE - manifold, tilt cyhlinder (Rod end)

1шт.

14

13-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

8шт.

15

L13164

BRACKET

- mountng, manifold tube to cylinder hose

4шт.

16

195-26

WASHER

WASHER - plain (3/8")

16шт.

17

92-6

LOCK WASHER,3/8"

8шт.

18

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

8шт.

19

13-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

16шт.

20

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

16шт.

21

A12306

FLANGE

- split, 1" (25 mm)

24шт.

22

F13297

HARDWARE

SEAL - "O" ring

12шт.

23

92-6

LOCK WASHER,3/8"

32шт.

24

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

16шт.

25

L53584

HOSE

- manifold to tilt cylinder, closed end

2шт.

26

L13163

HOSE

- manifold to tilt cylinder, rod end

2шт.

27

L13160

COUPLING, BREAK AWAY

SWIVEL - hose to tilt cylinder (Without external seals) Parts list figure 404 (Order L50217 for service)

4шт.

27

L50217

HYDRAULIC SWIVEL

SWIVEL - hose to tilt cylinder (With external seals) Not shown (Parts list figure 404)

4шт.

28

F13297

HARDWARE

SEAL - "O" ring

2шт.

29

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

8шт.

30

92-6

LOCK WASHER,3/8"

8шт.

31

REF

INSTRUCTION

CYLINDER - bucket, R.H. (See figures 414 - 418 for proper cylinder)

1шт.

32

REF

INSTRUCTION

CYLINDER - bucket, L.H. (See figures 414 - 418 for proper cylinder)

1шт.

33

L40156

TUBE

- swivel to R.H. tilt cyl., rod end (Order L53514 tube), before tractor sn. 9110004 and sn. 9110005, 9110007 and 9110010

1шт.

34

L40155

SPARE PART,35" L

TUBE - swivel to L.H. tilt cyl., rod end (Order L53513 tube), before tractor sn. 9110004 and sn. 9110005, 9110007 and 9110010

1шт.

35

L42998

STRAP

BAND - cylinder tube clamp, before tractor sn. 9110004 and sn. 9110005, 9110007 and 9110010

2шт.

36

L13027

CLAMP

- tube to band, before tractor sn. 9110004 and sn. 9110005, 9110007 and 9110010

2шт.

37

13-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Before tractor S/N 9110004 and S/N 9110005, 9110007 and 9110010 Hex, 3/8"-16 x 2", G5

2шт.

38

92-6

LOCK WASHER,3/8"

before tractor S/N 9110004 and S/N 9110005, 9110007 and 9110010 3/8"

2шт.

39

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC), before tractor sn. 9110004 and sn. 9110005, 9110007 and 9110010

2шт.

40

L51697

TUBE ASSY.,1.25" OD x 34.1, 1.43" L

TUBE - swivel to R.H. tilt cylinder, rod end (When stock is exhausted, order L53514 tube for service, before tractor sn. 9110004 and after, except 91100058, 9110007 and 9110010

1шт.

40

L53514

TUBE,1.25" OD x 34.1, 2.06" L

- swivel to R.H. tilt cylinder, rod end, before tractor sn. 9110004 and after, except 91100058, 9110007 and 9110010

1шт.

41

L51658

TUBE - swivel to L.H. tilt cylinder, rod end (When stock is exhausted, order L53513 tube for servic, before tractor sn. 9110004 and after, except 91100058, 9110007 and 9110010

1шт.

41

L53513

TUBE,1.25" OD x 34.1, 2.06" L

- swivel to L.H. tilt cyhlinder, rod end, before tractor sn. 9110004 and after, except 91100058, 9110007 and 9110010

1шт.

42

D46440

SADDLE

- tube clamp, before tractor sn. 9110004 and after, except 91100058, 9110007 and 9110010

2шт.

43

214-277

HOSE CLAMP,#100, 5.88" - 6.75", Type F Worm

CLAMP - tube to cylinder, before tractor sn. 9110004 and after, except 91100058, 9110007 and 9110010

2шт.
