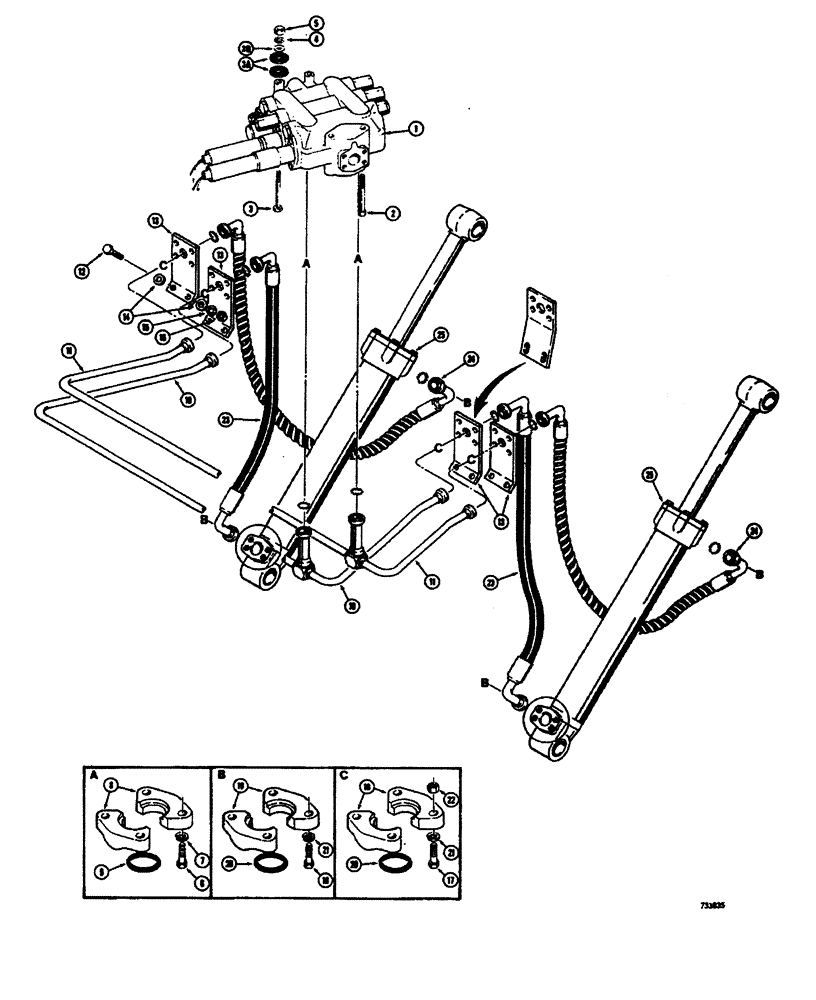

Запчасти Case W26B (394) - LOADER LIFT HYDRAULIC CIRCUIT ONE PIECE TUBE MANIFOLDS (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - hydraulic, loader control (See figures 434 - 438 and 448 - 450 valve)

1шт.

2

61-896

CAP SCREW - hex. socket head (1/2" - 13 NC 6")

2шт.

3

13-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

2шт.

3a

L57117

WASHER

- rubber, valve mounting

8шт.

3b

95-8

WASHER,1/2"

- plain (1/4")

4шт.

4

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

4шт.

5

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

6

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

8шт.

7

92-7

LOCK WASHER,7/16"

med. sect. 7/16"

8шт.

8

A12301

CLAMP,Half

- split, 1-1/4" (31 mm)

4шт.

9

A41162

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

SEAL - "O" ring

2шт.

10

L13961

MANIFOLD

TUBE - manifold, lift cylinder (Closed end) (Reapir requirements may be filled by ordering L53673 hose, L53648 manifold, (4) A12306 clamps, (2) F13297 seals, (8) 13 - 632 bolts and (8) 92 - 6 lockwashers for service) (See figure 396), Serial Range: -9107495

1шт.

10

L50587

TUBE - manifold, lift cylinder (Closed end) (Repair requirements may be filled by ordering L53673 hose, L53648 manifold, (4) A12306 clamps, (2) F13297 seals, (8) 13 - 632 bolts and (8) 92 - 6 lockwashers for service) See figure 396, Start Serial: 9107495

1шт.

11

L13962

MANIFOLD

TUBE - manifold, lift cylinder (Rod end) Repair requirements may be filled by ordering L53674 hose, L53676 hose, L53648 manifold, (4) A12306 clamps, (2) F13297 seals, (8) 13 - 632 bolts and (8) 92 - 6 lockwashers for service) See figure 396

1шт.

12

13-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

8шт.

13

L13156

BRACKET

- mounting, manifold tube to cylinder hose (All models except rollover protection models) When stock is exhausted, order L50748 bracket for service, Serial Range: -9113537

4шт.

13

L50748

BRACKET

- mounting, manifold tube to cylinder hose (All models except rollover protection models), Serial Range: -9113537

4шт.

13

L50212

BRACKET - mounting, manifold tube to cylinder hose (Rollover protection models), Serial Range: -9113537

4шт.

14

195-30

WASHER

- plain (7/16")

16шт.

15

92-7

LOCK WASHER,7/16"

med. sect. 7/16"

8шт.

16

25-107

NUT,7/16"-14, G5

- hex. (7/16" - 14 NC)

8шт.

17

13-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

16шт.

18

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

16шт.

19

A12306

FLANGE

- split, 1" (25 mm)

24шт.

20

F13297

HARDWARE

SEAL - "O" ring

12шт.

21

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

32шт.

22

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

16шт.

23

L13153

HOSE - manifold tube to lift cylinder, closed end, 44-7/8" long (1139 mm)

2шт.

24

L40205

HOSE ASSY.

HOSE - manifold tube to lift cyinder rod end, 62" long (1574 mm) If used

2шт.

24

L50009

HOSE ASSY.

HOSE - manifold tube to lift cylinder rod end, 45" long (1143 mm) If used

2шт.

25

REF

INSTRUCTION

CYLINDER - hydraulic, loader lift, see figures 406 and 412 for proper cylinder

2шт.
