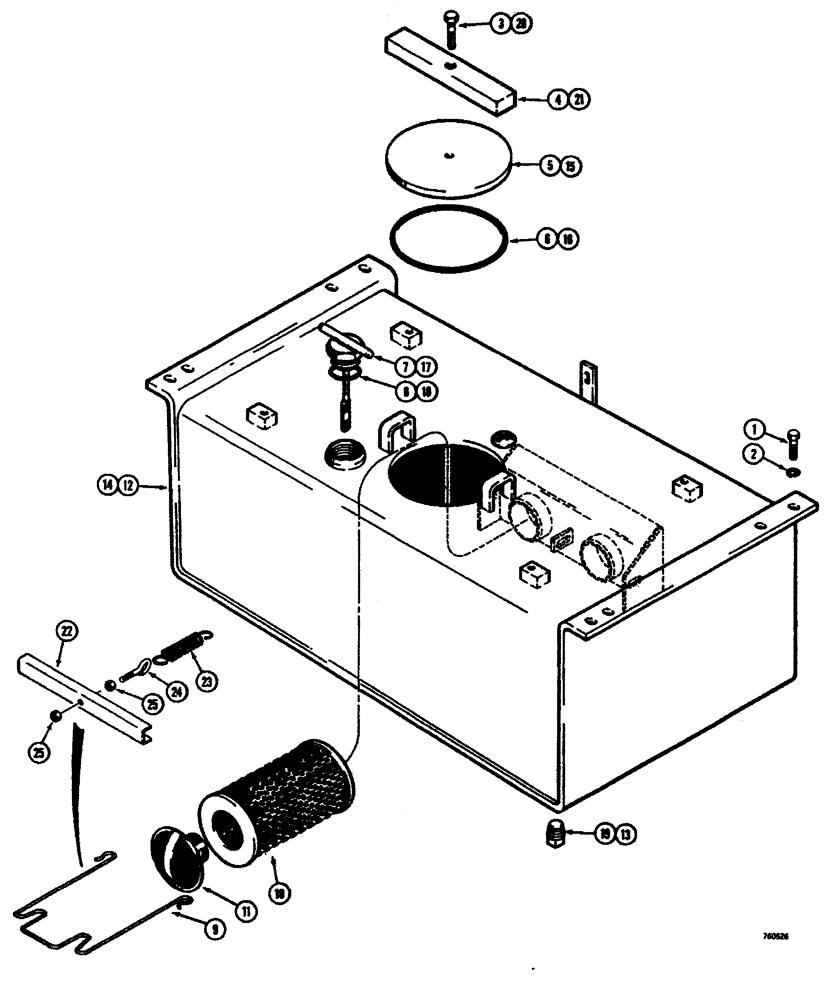

Запчасти Case W26B (284) - HYDRUALIC TANK AND REALTED PARTS TRACTOR SN 9110100 AND AFTER (08) - HYDRAULICS

1

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Tank mounting Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

2

92-6

LOCK WASHER,3/8"

4шт.

3

113-419

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5, Full Thd

Hex, 1/2"-13 x 2 1/2", G5, Full Thd, Cover holddown

1шт.

4

L50741

BAR

- cover hold down

1шт.

5

L55406

COVER

- hydraulic tank, Includes: Ref. 6

1шт.

6

L55410

O-RING,0.275" Thk x 7.22" ID, -442, Cl 5, 75 Duro

SEAL -" O"ring, cover

1шт.

7

L53215

GAUGE ASSY.

GAUGE - oil level

1шт.

8

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

9

L52759

VALVE SPRING

y SPRING - filter retaining (Order L73686 bracket, L74001 spring, L73685 eye and (2) 25-104 bolts)

2шт.

10

L72877

FILTER, ELEMENT

ELEMENT - filter, hydraulic tank

2шт.

11

L59847

VALVE

- relief, filter

2шт.

12

L52745

TANK

- hydraulic oil (Uses L52759 spring)

1шт.

13

221-35

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

PLUG - pipe, tank drain (3/4" NPT)

1шт.

14

L74109

TANK

- hydraulic oil (Uses L73686 bracket, L74001 spring & L73685 bolt eye), Includes: Ref. 15 - 21

1шт.

15

L55406

COVER

- hydraulic tank

1шт.

16

L55410

O-RING,0.275" Thk x 7.22" ID, -442, Cl 5, 75 Duro

SEAL - "O" ring, cover

1шт.

17

L53215

GAUGE ASSY.

GAUGE - oil level

1шт.

18

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

19

221-35

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

PLUG - pipe, tank drain (3/4" NPT)

1шт.

20

113-419

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5, Full Thd

Hex, 1/2"-13 x 2 1/2", G5, Full Thd, Cover holddown

1шт.

21

L50741

BAR

- cover holddown

1шт.

22

L73686

BRACKET

- filter retaining

1шт.

23

L74001

VALVE SPRING

SPRING - filter retaining

1шт.

24

L73685

BOLT

EYE - bolt, 1/4" - 20 NC

1шт.

25

25-104

NUT,1/4"-20, G5

2шт.
