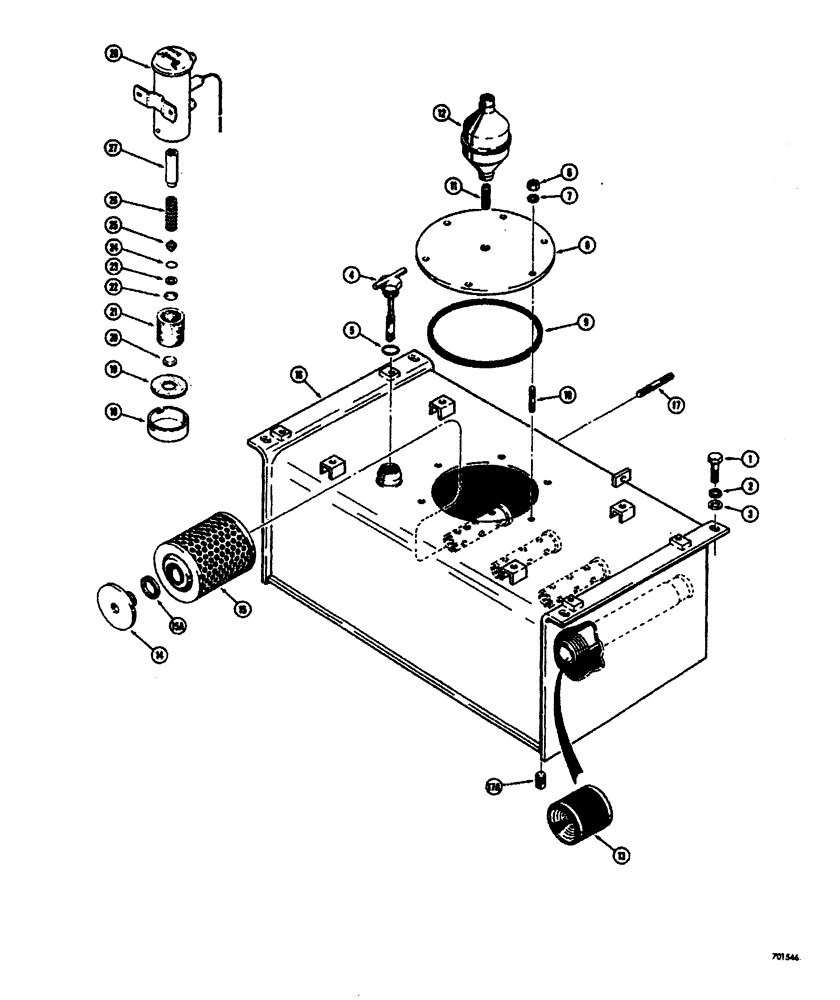

Запчасти Case W26B (282) - HYDRAULICS TANK AND RELATED PARTS BEFORE TRACTORS SN. 9110100 (08) - HYDRAULICS

1

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

2

92-8

LOCK WASHER,1/2"

4шт.

3

95-8

WASHER,1/2"

plain 1/2"

4шт.

4

L40050

GAUGE - oil level

1шт.

5

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

SEAL - "0" ring, gauge

1шт.

6

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

6шт.

7

92-6

LOCK WASHER,3/8"

6шт.

8

L40047

COVER - hydraulic tank

1шт.

9

L12680

SEAL

- tank cover

1шт.

10

L13023

STUD

- cover to hydraulic tank

6шт.

11

221-1185

FITTING

NIPPLE - pipe - (1/2" NPT x 1-1/8" long)

2шт.

12

L14842

BREATHER

ASSEMBLY - hydraulic tank

1шт.

13

L12669

SCREEN - hydraulic tank

1шт.

14

L12682

LOCK VALVE

RELIEF VALVE - filter

3шт.

51200336

FILTER, ELEMENT

ELEMENT KIT - filter, hydraulic oil, Includes: Ref. 15 and 15A

1шт.

15

NSS

NOT SOLD SEPARAT

ELEMENT - filter

1шт.

15a

NLS

NO LONGER SERVICED

- element

1шт.

16

L40048

TANK - hydraulic oil

1шт.

17

L14422

STUD - hydraulic tank

4шт.

17a

221-35

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

PLUG - pipe, tank drain (3/4" NPT)

1шт.

L14569

PUMP

- fuel transfer (When stock is exhuasted, order L52634 pump for service), L14569, Includes: Ref. 18 - 28

1шт.

L52634

PUMP

- fuel transfer, L14569 and L52634 pumps, Includes: Ref. 18 - 28

1шт.

18

A40312

COVER

- fuel pump, L14569 and L52634

1шт.

19

A40315

GASKET

- cover, L14569 and L52634 Fuel pumps

1шт.

20

A40311

MAGNET

- plunger, L14569 and L52634 Fuel pumps

1шт.

21

A40314

FILTER CARTRIDGE

FILTER - fuel (L14569 pump), L14569 and L52634

1шт.

21

L33210

FILTER SCREEN

SCREEN - filtering (L52634 pump), L14569 and L52634 Fuel

1шт.

22

A40316

RETAINER

- seal, ""0"" ring, L14569 and L52634 Fuel pumps

1шт.

23

A40317

WASHER

- special, retainer, L14569 and L52634 Fuel pumps

1шт.

24

A40318

O-RING,0.429" ID x 0.106"

SEAL - ""0"" ring, valve, L14569 and L52634 Fuel pumps

1шт.

25

A40313

CUP

VALVE - cup, L14569 and L52634 Fuel pumps

1шт.

26

L32394

VALVE SPRING

SPRING - plunger (When stock is exhausted, order L35316 spring for service, L14569 and L52634 Fuel pumps

1шт.

26

L35316

SPRING

- plunger, L14569 and L52634 Fuel pumps

1шт.

27

A40310

PLUNGER

- fuel pump, L14569 and L52634

1шт.

28

NSS

NOT SOLD SEPARAT

BODY - pump, fuel transfer, L14569 and L52634

1шт.
