Заказать запчасти

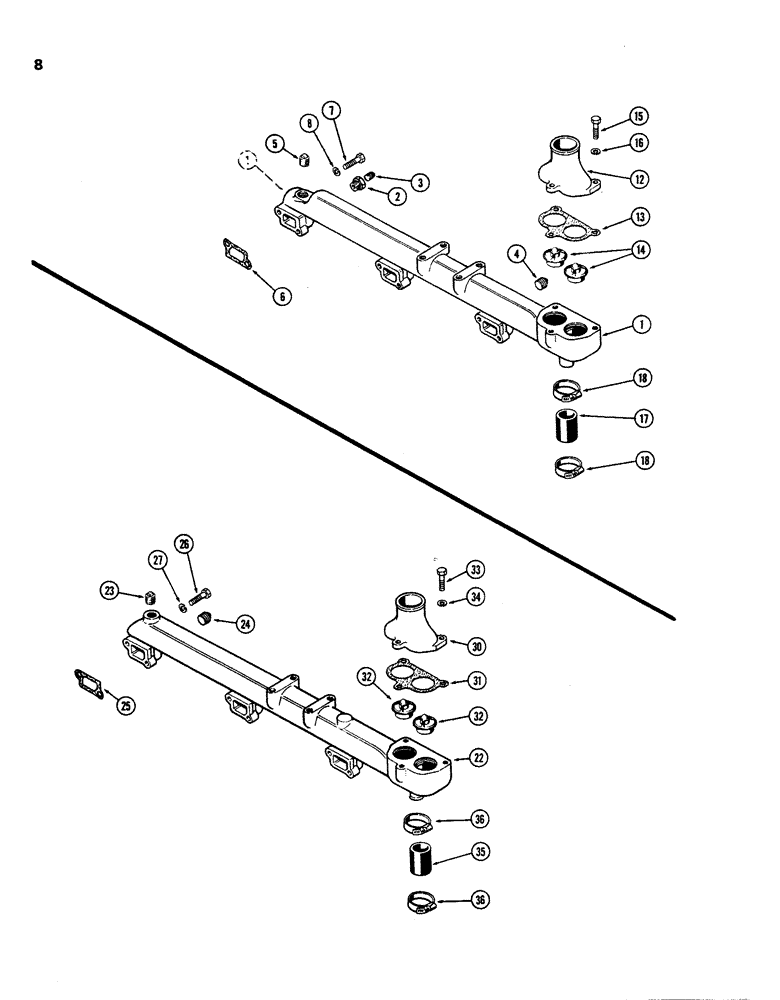

Запчасти Case W26B (008) - WATER MANIFOLD AND THERMOSTAT, (504BDT) DIESEL ENGINE, ALUMINUM (02) - ENGINE
№
Артикул
Название
Примечание
Количество
A44088
MANIFOLD
KIT, Includes: Ref. 1 - 4
1шт.
1
NSS
NOT SOLD SEPARAT
MANIFOLD - water
1шт.
2
221-92
REDUCER,Hex, 3/4" x 3/8" NPT
BUSHING - reducing (3/4" to 3/8")
1шт.
3
221-843
PLUG,Hex Soc, 3/8"-18
- 3/8" P.T. hex sckt. hd.
1шт.
4
221-845
PLUG,Hex Soc, 3/4"-14
- 3/4" P.T. hex sckt. hd.
1шт.
5
221-4
DRAIN PLUG,Sq Hd, 1/2"-14 NPTF
PLUG - 1/2" P.T. sq. hd.
1шт.
6
A58637
MANIFOLD GASKET
-, Serial Range: manifold-head
1шт.
7
413-632
BOLT,Hex, 3/8" - 16 x 2", Gr 5
6шт.
8
92-6
LOCK WASHER,3/8"
6шт.
12
A58638
HOUSING
- thermostat
1шт.
13
A58639
GASKET
-, Serial Range: housing-manifold
1шт.
14
A57641
THERMOSTAT
- 180 degrees
1шт.
15
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
3шт.
16
92-6
LOCK WASHER,3/8"
3шт.
17
A58640
HOSE
- water by-pass (1-1/4" I.D. x 2-3/8")
1шт.
18
214-256
HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm
CLAMP - hose (1-3/16" to 1-3/4")
2шт.
22
A58909
MANIFOLD
- water, cast iron
1шт.
23
221-4
DRAIN PLUG,Sq Hd, 1/2"-14 NPTF
PLUG - 1/2" P.T., sq.hd., cast iron
1шт.
24
221-1845
DRAIN PLUG,Hex Soc, 3/4"-14, NPTF
PLUG - 3/4" P.T., hex. sckt. hd.., cast iron
3шт.
25
A58637
MANIFOLD GASKET
- manifold to head, cast iron
3шт.
26
13-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
- 3/8 x 1-1/2" N.C. hex., cast iron
3шт.
26
413-632
BOLT,Hex, 3/8" - 16 x 2", Gr 5
Cast iron Hex, 3/8"-16 x 2", G5
3шт.
27
92-6
LOCK WASHER,3/8"
cast iron 3/8"
6шт.
30
A58638
HOUSING
- thermostat, cast iron
1шт.
31
A58639
GASKET
- housing to manifold, cast iron
1шт.
32
A57641
THERMOSTAT
- 180 degrees, cast iron
2шт.
33
13-618
BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5
Cast iron Hex, 3/8"-16 x 1 1/8", G5, Full Thd
3шт.
34
92-6
LOCK WASHER,3/8"
cast iron 3/8"
3шт.
35
A58640
HOSE
- water by-pass (1-1/4" I.D. x 2-3/8"), cast iron
1шт.
36
214-256
HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm
CLAMP - hose (1-3/16" to 1-3/4"), cast iron
2шт.
Выбрано товаров: 30
