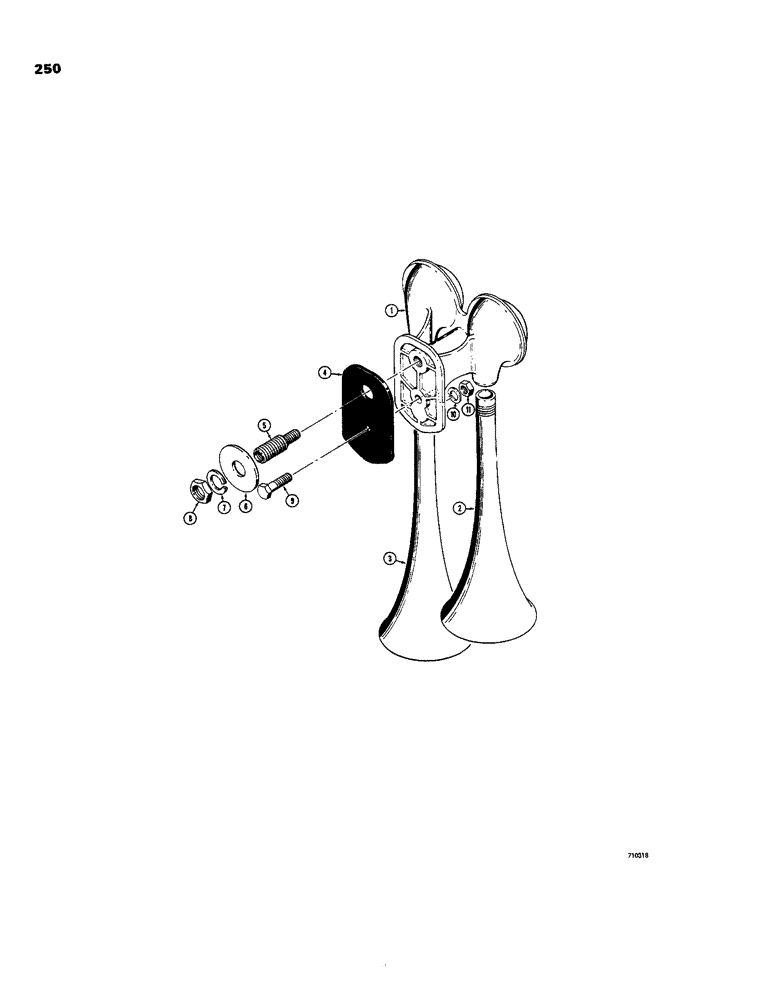

Запчасти Case W26B (250) - BRAKE SYSTEM, L50225 HORN (07) - BRAKES

L50225

HORN

ASSEMBLY - air, Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

MOTOR AND BODY - horn

1шт.

2

L33784

HORN

- high pitch, 10-3/4" long (273 mm)

1шт.

3

L33785

HORN

- low pitch, 13-1/2" long (242 mm)

1шт.

L33786

KIT

- horn mounting, Includes: Ref. 4 - 8

1шт.

4

NSS

NOT SOLD SEPARAT

PAD - mounting

1шт.

5

NSS

NOT SOLD SEPARAT

ADAPTER - air, Serial Range: line-horn

1шт.

6

NSS

NOT SOLD SEPARAT

WASHER - special

1шт.

7

193-63

LOCK WASHER,Int Tooth, 5/8"

WASHER - lock

1шт.

8

129-127

NUT,5/8"-18, G5

1шт.

9

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

10

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

11

25-104

NUT,1/4"-20, G5

1шт.
