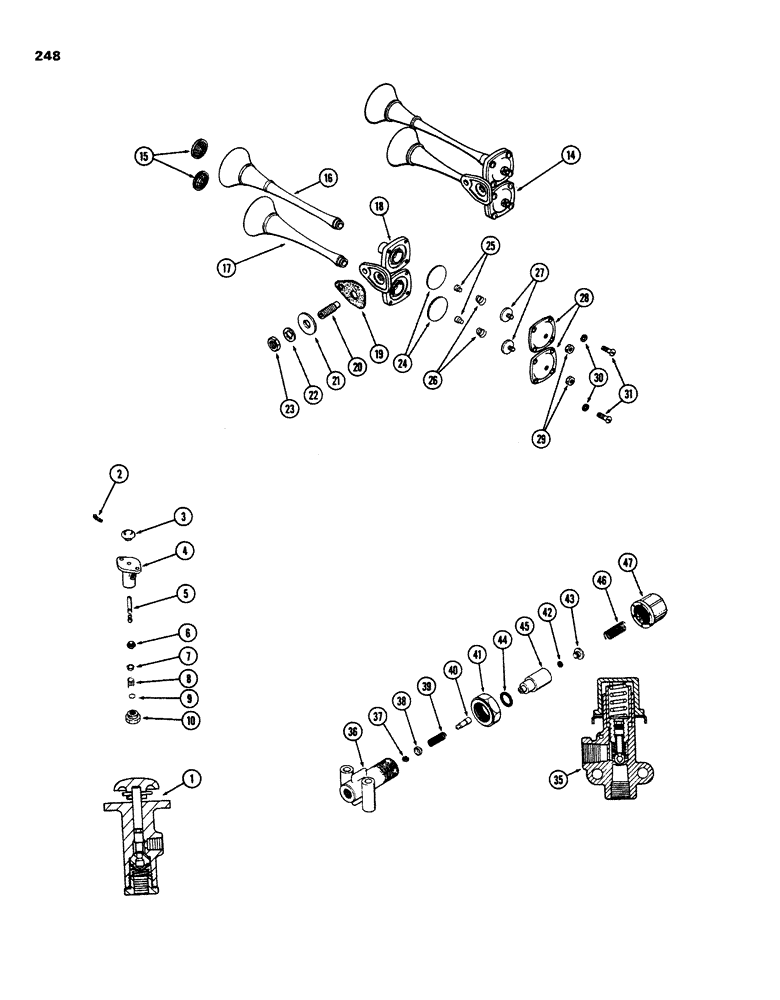

Запчасти Case W26B (248) - BRAKE SYSTEM, L12647 HORN VALVE (07) - BRAKES

1

L12647

VALVE

ASSY. - horn, floor mounted, Includes: Ref. 2 - 10

1шт.

2

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4", Serial Range: button-stem

1шт.

3

P2531301

CONTROL SLIDE

BUTTON - horn valve

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - horn valve, floor mounted

1шт.

5

L31353

STEM

- horn valve

1шт.

6

L31354

VALVE

- inlet, horn valve

1шт.

7

L31355

SEAT

- spring, horn valve

1шт.

8

L35089

SPRING

- horn valve

1шт.

9

L31357

PLATE

- strainer, horn valve

1шт.

10

L31358

PLUG

CAP - horn valve

1шт.

14

L12648

HORN

ASSEMBLY - pneuphonic, L12648, Includes: Ref. 15 - 31

1шт.

15

L31346

SCREEN - bell, pneuphonic horn, L12648

2шт.

16

L31345

BELL - long, pneuphonic horn, L12648

1шт.

17

L31344

BELL - short, pneuphonic horn, L12648

1шт.

18

NSS

NOT SOLD SEPARAT

BODY - horn, pneuphonic, L12648

1шт.

19

L31342

GASKET - pneuphonic horn, L12648

1шт.

20

L31341

COUPLING - mtg. pneuphonic horn, L12648

1шт.

21

L31343

WASHER - pneuphonic horn, L12648

1шт.

22

193-34

LOCK WASHER,Int Tooth, 5/8"

WASHER, LOCK, , Horn mounting locknut, L12648 Int Tooth, 5/8"

1шт.

23

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - hex., jam (5/8" - 18 NF) Mounting stud, L12648 horn

1шт.

24

L31347

DIAPHRAGM

- pneuphonic horn, L12648

2шт.

25

L31348

SWITCH

CONTACT - spring, pneuphonic horn, L12648

2шт.

26

L31349

VALVE SPRING

SPRING - pneuphonic horn, L12648

2шт.

27

L31350

SEAT

- spring, pneuphonic horn, L12648

2шт.

28

NSS

NOT SOLD SEPARAT

COVER - end, pneuphonic horn, L12648

2шт.

29

9635082

NUT,5/16" - 18, Gr 5

- hex., (5/16" - 18 NC) Cover contact spring, L12648

2шт.

30

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Cover to bell, L12648 1/4"

8шт.

31

173-229

RHMS - 1/4" - 32 NC x 7/8" (Horn cover to bells), L12648

8шт.

35

L13530

VALVE

ASSY. - pressure protection, L13530, Includes: Ref. 36 - 47

1шт.

36

NSS

NOT SOLD SEPARAT

BODY - valve, L13530 pressure protection

1шт.

37

L31802

VALVE

- clutch, L13530 pressure protection

1шт.

38

NSS

NOT SOLD SEPARAT

GUIDE - valve, L13530 pressure protection

15шт.

39

L31800

SPRING

- valve, L13530 pressure protection

1шт.

40

NSS

NOT SOLD SEPARAT

STEM - valve, L13530 pressure protection

1шт.

41

131-414

LOCK NUT,PAL, 7/8"-14

PALNUT - hex., (7/8" NF), L13530 pressure protection valve

1шт.

42

L31798

O-RING,1/8" ID x 1/4" OD x 1/16"

"O" RING - valve plug, L13530 pressure protection

1шт.

43

NSS

NOT SOLD SEPARAT

PLUG - piston, L13530 pressure protection valve

1шт.

44

L31797

O-RING,1/2" ID x 11/16" OD x 3/32"

"O"RING - valve, piston, L13530 pressure protection

1шт.

45

NSS

NOT SOLD SEPARAT

PISTON - valve, L13530 pressure protection

1шт.

46

NSS

NOT SOLD SEPARAT

SPRING - valve, L13530 pressure protection

1шт.

47

L32729

CAP - adjusting (When stock is exhausted, order L32931 cap for service), L13530 pressure protection valve

1шт.

47

L32931

CAP - adjusting (When stock is exhausted, order L33316 cap for service), L13530 pressure protection valve

1шт.

47

L33316

CAP

- adjusting, L13530 pressure protection valve

1шт.
