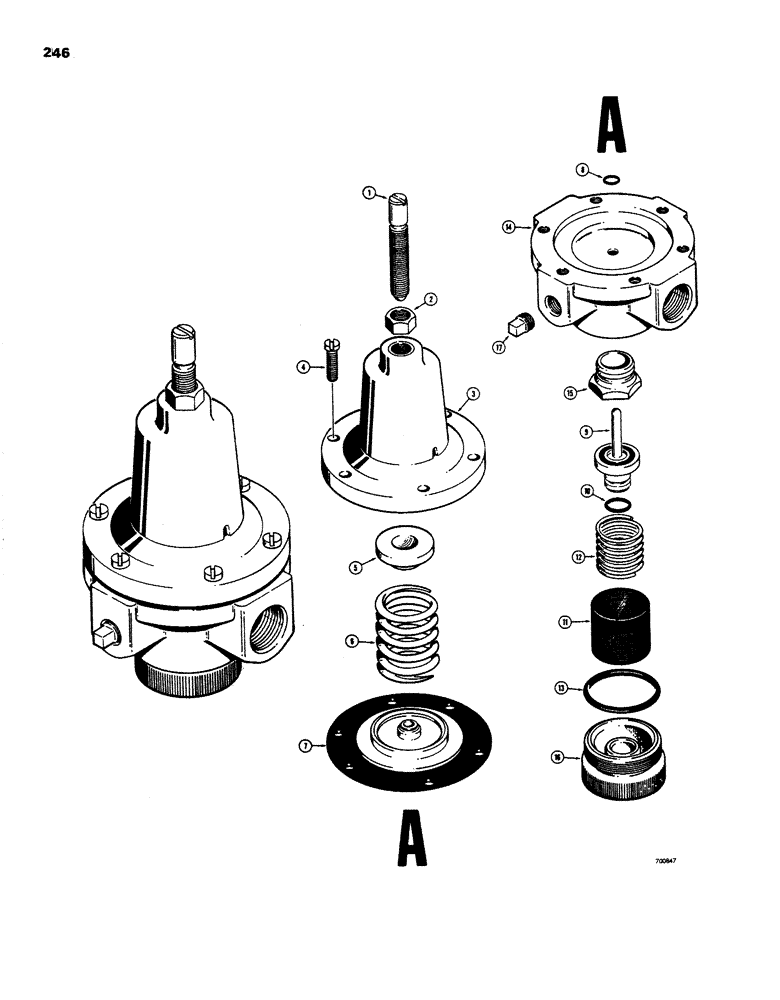

Запчасти Case W26B (246) - BRAKE SYSTEM, L46498 REGULATOR VALVE (07) - BRAKES

L46498

LOCK VALVE

VALVE ASSEMBLY - regulator, Includes: Ref. 1 - 17

1шт.

1

L32932

SCREW

- adjusting, special

1шт.

2

129-164

JAM NUT,Hex, 7/16" - 20, Gr 5

- hex., jam (7/16" - 24 NF)

1шт.

3

NSS

NOT SOLD SEPARAT

BONNET - regulator valve

1шт.

4

169-149

SCREW,Sl Fil Hd, #12 - 24 x 5/8"

- machine, slotted fillister head (#12 - 24 NC x 5/8")

6шт.

5

L32936

REST - spring, upper

1шт.

6

L32937

VALVE SPRING

SPRING - regulating, valve

1шт.

L32938

KIT

- regulator valve repair, Includes: Ref. 7 - 13

1шт.

7

NSS

NOT SOLD SEPARAT

DIAPHRAGM - valve

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - "O" ring, body

1шт.

9

NSS

NOT SOLD SEPARAT

VALVE - regulator

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - "O" ring, valve

1шт.

11

NSS

NOT SOLD SEPARAT

SCREEN - strainer

1шт.

12

NSS

NOT SOLD SEPARAT

SPRING - valve guide

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL - "O" ring, guide plug

1шт.

14

NSS

NOT SOLD SEPARAT

BODY - regulator valve

1шт.

15

L32934

SEAT - valve

1шт.

16

L32935

PLUG - valve guide

1шт.

17

217-76

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF, Brass

PLUG - pipe, square head (1/4" NPT)

1шт.
