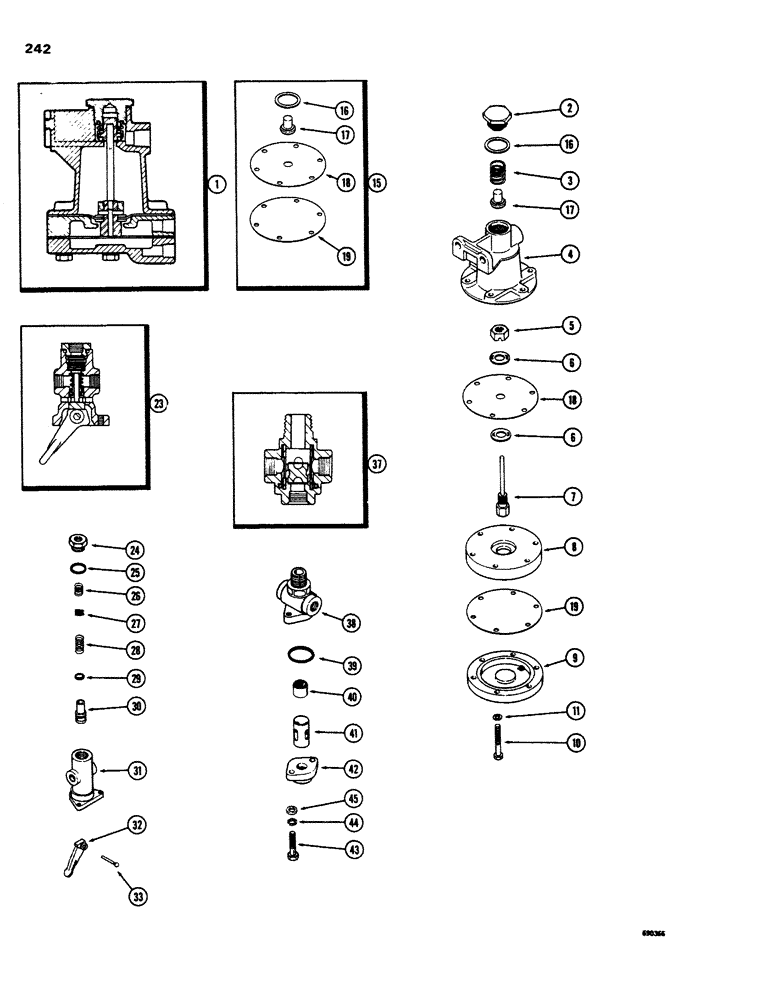

Запчасти Case W26B (242) - BRAKE SYSTEM, L12620 MOISTURE EJECTION VALVE (07) - BRAKES

1

L12620

VALVE

ASSY. - moisture ejection, Includes: Ref. 2 - 19

1шт.

2

L31197

CAP - body

1шт.

3

L31196

SPRING - valve

1шт.

4

L31195

BODY

- main valve

1шт.

5

L31202

NUT - retaining

1шт.

6

L31198

WASHER - diaphragm

2шт.

7

L31191

ROD

- push and valve assy.

1шт.

8

L31193

BODY

- exhaust chamber

1шт.

9

L31194

BODY - valve

1шт.

10

13-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

Valve body Hex, 1/4"-20 x 1 3/4", G5

6шт.

11

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

15

L31203

KIT

- repair, diaphragm, Includes: Ref. 16 - 19

1шт.

16

L31201

GASKET

- cap

1шт.

17

NSS

NOT SOLD SEPARAT

VALVE - inlet and insert assy.

1шт.

18

NSS

NOT SOLD SEPARAT

DIAPHRAGM - valve

1шт.

19

NSS

NOT SOLD SEPARAT

DIAPHRAGM - valve

1шт.

23

L12630

LOCK VALVE

VALVE ASSY. - hand control, L12630 clutch cutout, Includes: Ref. 24 - 33

1шт.

24

L31396

CYLINDER END CAP

CAP NUT - hand control valve, L12630 clutch cutout

1шт.

25

L31397

O-RING,0.549" ID x 0.103" Width

RING - seal, cap nut, L12630 clutch cutout valve

1шт.

26

L31391

VALVE SPRING

SPRING - return, plunger, hand control valve, L12630 clutch cutout

1шт.

27

L31394

LOCK VALVE

VALVE - control (When stock is exhausted, order L36026 valve for service), L12630 clutch cutout

1шт.

27

L36026

VALVE

- control, L12630 clutch cutout

1шт.

28

L31395

VALVE SPRING

SPRING - control valve, L12630 clutch cutout

1шт.

29

L31390

O-RING,5/16" ID x 7/16" OD x 1/16"

"O"RING - valve plunger, hand control, L12630 clutch cutout

1шт.

30

L31389

PLUNGER

- valve, hand control, L12630 clutch cutout

1шт.

31

NSS

NOT SOLD SEPARAT

BODY - valve, hand control, L12630 clutch cutout

1шт.

32

L31392

LEVER

- hand control valve, L12630 clutch cutout

1шт.

33

L31393

RIVET

- hand control valve, L12630 clutch cutout

1шт.

37

L12635

VALVE

ASSY. - check, double, L12635, Includes: Ref. 38 - 45

1шт.

38

NSS

NOT SOLD SEPARAT

BODY - double check valve, L12635

1шт.

39

L31499

O-RING,1" ID x 40546" OD x 3"

"O"RING - double check valve, L12635

1шт.

40

L31498

ROD

SHUTTLE - double check valve, L12635

1шт.

41

L31497

GUIDE

- shuttle, double check valve, L12635

1шт.

42

NSS

NOT SOLD SEPARAT

CAP - double check valve, L12635

1шт.

43

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Cap to body, L12635 double check valve Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

44

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , L12635 double check valve 1/4"

2шт.

45

95-4

WASHER,1/4"

- wrought, (), L12635 double check valve 1/4"

2шт.
