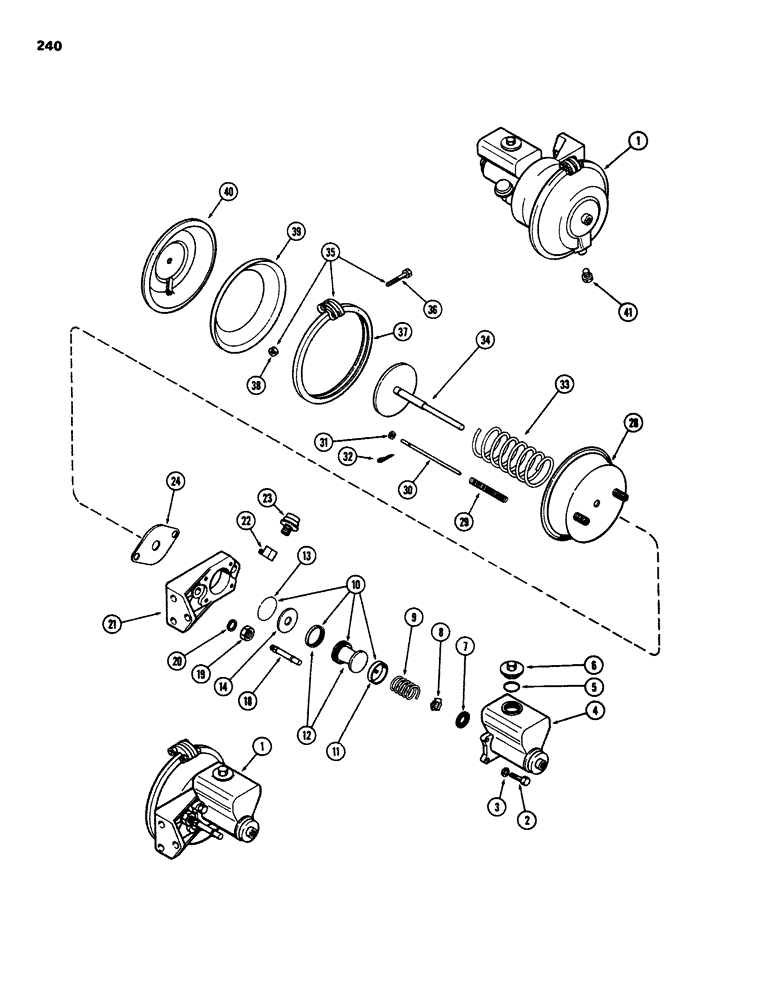

Запчасти Case W26B (240) - BRAKE SYSTEM, L12609 MASTER CYLINDER (07) - BRAKES

1

L12609

CYLINDER

MASTER CYLINDER ASSEMBLY - brake, Includes: Ref. 2 - 41

3шт.

2

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

3

92-5

LOCK WASHER,5/16"

4шт.

L31260

CYLINDER

ASSY. - master, not illustrated, Includes: Ref. 4 - 14

1шт.

4

NSS

NOT SOLD SEPARAT

CYLINDER - body, master

1шт.

5

A19755

GASKET

- cylinder reservoir cap

1шт.

6

L31257

PIPE FITTING

CAP - filler, master cyl. reservoir

1шт.

L31846

VALVE

KIT - check valve and seat, Includes: Ref. 7 and 8

1шт.

7

NSS

NOT SOLD SEPARAT

SEAT - master cylinder valve

1шт.

8

NSS

NOT SOLD SEPARAT

VALVE - check, master cylinder

1шт.

9

A19803

SEAL

SPRING - return, master cylinder

1шт.

10

L31258

KIT

- brake, master cylinder, Includes: Ref. 11 - 13

1шт.

11

A19807

CUPEL

CUP - primary, master cylinder

1шт.

12

NSS

NOT SOLD SEPARAT

PISTON - cylinder, master

1шт.

13

A19760

RING

LOCKWIRE - stop plate, master cyl.

1шт.

14

A19759

PLATE

STOP PLATE - master cylinder

1шт.

18

L31483

SHIELD

- stroke indicator, master cylinder

1шт.

19

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - hex., jam (5/8" - 18 NF)

2шт.

20

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

21

NSS

NOT SOLD SEPARAT

BRACKET - mounting, master cylinder

1шт.

22

NSS

NOT SOLD SEPARAT

ELBOW - reducing, master cylinder

1шт.

23

L31482

BREATHER

- master cylinder

1шт.

24

NSS

NOT SOLD SEPARAT

SHIM - actuator

4шт.

L31398

TANK

CHAMBER ASSY. - brake (Not illustrated), Includes: Ref. 28 - 41

1шт.

28

L31489

PLATE - non-pressure, brake chamber

1шт.

29

L31488

VALVE SPRING

SPRING - indicator, master cylinder

1шт.

30

L31487

INDICATOR

- master cylinder stroke, use D74447

1шт.

30

D74447

INDICATOR

- master cylinder stroke

1шт.

31

195-1007

WASHER - shim, stroke indicator (3/8" O.D. x 11/64" I.D. x 1/32")

1шт.

32

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), (L31487 indicator only) 1/16" x 1/2"

1шт.

33

L31486

VALVE SPRING

SPRING - brake chamber

1шт.

34

L31493

PUSH ROD

- brake chamber

1шт.

35

L31490

RING

ASSY. - clamping, brake chamber assy., Includes: Ref. 36 - 38

1шт.

36

166-527

12 PT SCREW,Flg, 5/16" - 24 x 1 1/2", Gr 8

SCREW - 12 point, clamping ring (5/16" - 24 NF x 1-1/2")

1шт.

37

NSS

NOT SOLD SEPARAT

RING - clamping

1шт.

38

L31492

NUT - clamping ring (5/16" - 24 NF)

1шт.

39

L31485

DIAPHRAGM

- brake chamber

1шт.

40

L31484

PLATE

- air pressure, brake chamber

1шт.

41

221-1662

PLUG

- pipe, press. plate (1/4" hex. hd., plated)

1шт.
