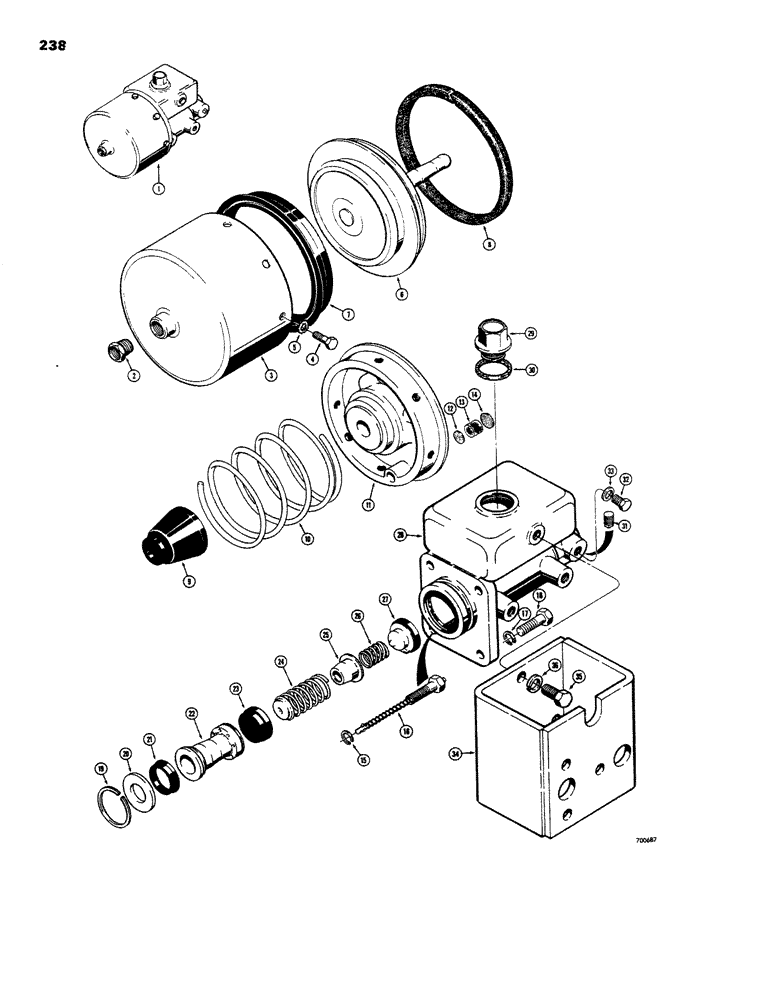

Запчасти Case W26B (238) - BRAKE SYSTEM, L19667 MASTER CYLINDER (07) - BRAKES

1

L19667

CHAMBER

MASTER CYLINDER ASSEMBLY - brake, Includes: Ref. 2 - 33

3шт.

L32772

CLEANER ASSY.

AIR CHAMBER ASSEMBLY - brake, Includes: Ref. 2 - 18

1шт.

2

221-87

REDUCER,1/2" NPT x 1/8" NPT

BUSHING - pipe (3/8" x 1/4")

1шт.

3

L32777

COVER - air chamber assembly

1шт.

4

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

8шт.

5

193-29

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

8шт.

6

L32776

ROD

PISTON AND ROD ASSEMBLY - air chamber

1шт.

7

L32785

SEAL

CUP - piston packing, air chamber

1шт.

Included in L32782 master cylinder repair kit.

1шт.

8

L32784

WIPER

SEAL - piston, air chamber

1шт.

Included in L32782 master cylinder repair kit.

1шт.

9

L32550

BOOT

- piston rod

1шт.

Included in L32782 master cylinder repair kit.

1шт.

10

L32775

VALVE SPRING

SPRING - return, piston

1шт.

L32774

HEAD

ASSEMBLY - air chamber, Includes: Ref. 11 - 14

1шт.

11

NSS

NOT SOLD SEPARAT

HEAD - air chamber

1шт.

12

L32538

SCREEN

- filter

2шт.

13

L32539

FILTER CARTRIDGE

FILTER - air

1шт.

14

L32540

RETAINER

- filter

1шт.

15

92-6

LOCK WASHER,3/8"

1шт.

16

L32773

INDICATOR

- stroke

1шт.

17

92-6

LOCK WASHER,3/8"

3шт.

18

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

3шт.

L32778

CYLINDER BLOCK

CYLINDER ASSEMBLY - master, hydraulic, Includes: Ref. 19 - 31

1шт.

19

A19760

RING

WIRE - lock

1шт.

20

A19759

PLATE

- stop, piston

1шт.

A19810

PISTON

ASSEMBLY - master cylinder, Includes: Ref. 21 and 22

1шт.

21

L32552

CUP

- piston packing

1шт.

Included in L32782 master cylinder repair kit.

1шт.

22

NSS

NOT SOLD SEPARAT

PISTON - master cylinder

1шт.

Included in L32782 master cylinder repair kit.

1шт.

23

A19807

CUPEL

SEAT - piston and spring

1шт.

Included in L32782 master cylinder repair kit.

1шт.

24

A19803

SEAL

SPRING - piston

1шт.

25

L32779

RETAINER

- valve spring

1шт.

26

L32780

VALVE SPRING

SPRING - valve retaining

1шт.

27

L32783

LOCK VALVE

VALVE ASSEMBLY - check

1шт.

Included in L32782 master cylinder repair kit.

1шт.

28

NSS

NOT SOLD SEPARAT

HOUSING - master cylinder

1шт.

29

L32781

CAP

PLUG - filler, special

1шт.

30

D46693

GASKET

- plug

1шт.

31

221-831

PLUG

- pipe, square head (1/8" NPT)

1шт.

32

L32786

PLUG

- special

2шт.

33

A12988

GASKET

- plug

2шт.

34

L17759

BRACKET - master cylinder

3шт.

35

14-714

SCREW,Hex, 7/16" - 20 x 7/8", Gr 5

HHCS - 7/16" - 20 NF x 7/8"

9шт.

36

92-7

LOCK WASHER,7/16"

9шт.
