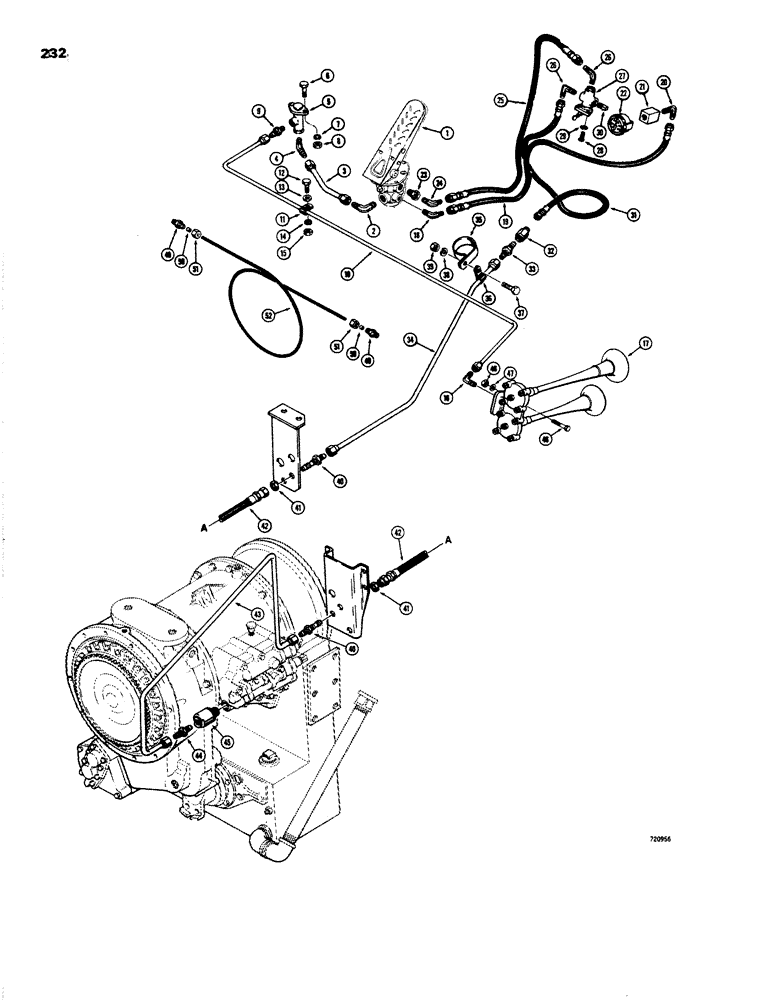

Запчасти Case W26B (232) - BRAKE SYSTEM, VALVE TO HORN, AIR PRESSURE GAUGE, AND CLUTCH CUT-OUT (07) - BRAKES

1

REF

INSTRUCTION

TREADLE AND VALVE ASSEMBLY - L.H. brake and clutch control (Parts list figure 236)

1шт.

2

218-1054

ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/2"-14, NPTF

- male, 90 degrees

1шт.

3

L12645

TUBE,2.25, 2.25" L

- valve to horn control

1шт.

4

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- male, 90 degrees

1шт.

5

L12647

VALVE

- horn control (Parts list figure 248)

1шт.

6

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

7

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

8

25-104

NUT,1/4"-20, G5

2шт.

9

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR - straight, male (W26B models)

1шт.

10

L12646

TUBE

- horn control to horn, rigid tubing (W26B models without rollover protection canopy)

1шт.

10

L50221

TUBE - horn control to horn, rigid tubing (Early production W26B models with rollvoer protection canopy) See reference Nos. 49 thru 52 for optional service 0.25" OD

1шт.

11

49852

PTO SHAFT

- tube

1шт.

12

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

13

95-4

WASHER,1/4"

- plain () 1/4"

1шт.

14

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

15

25-104

NUT,1/4"-20, G5

1шт.

16

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- male, 90 degrees (W26B models)

1шт.

17

L12648

HORN

- air (Parts list figure 248) When stock is exhausted order L50225 horn for service

1шт.

17

L50225

HORN

- air (Parts list figure 250) Not shown

1шт.

18

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

- male, 90 degrees

1шт.

19

L12629

HOSE

- valve to pressure gauge, 51" long (1295 mm)

1шт.

20

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- male, 90 degrees

1шт.

21

L13273

UNION TEE

TEE - air pressure, Serial Range: gauge-hose

1шт.

22

L12141

ELECTRICAL GAUGE

GAUGE - air pressure

1шт.

23

221-88

REDUCER,Hex, 1/2" x 1/4" NPT

BUSHING - reducer

1шт.

24

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

- male, 90 degrees

1шт.

25

L12629

HOSE

- valve to clutch control valve, 51" long (1295 mm)

1шт.

25

L46753

HOSE ASSY.

HOSE - valve to clutch control, 30" long (762 mm) Used with- out clutch cut out control valve

1шт.

26

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- male, 90 degrees

2шт.

27

L12630

LOCK VALVE

VALVE - clutch cut-out control (Parts list figure 242)

1шт.

28

173-61

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

- machine, round head (#6 - 32 NC x 1/2")

2шт.

29

87276

LOCK WASHER,3.58mm ID x 6.35mm OD x 0.79mm Thk

#6

2шт.

30

221-1

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, square head (1/8" NPT)

1шт.

31

L12629

HOSE

- control valve outlet, 51" long (1295 mm) Used only on models with clutch cut-out

1шт.

32

218-1032

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, Fem Pipe

ADAPTER - straight

1шт.

33

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - straight, male

1шт.

34

L12628

TUBE,28.88, 20 mm L

- clutch control, front

1шт.

35

A19037

CLAMP - tube

1шт.

36

49845

CLAMP

- tube

1шт.

37

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

38

92-5

LOCK WASHER,5/16"

1шт.

39

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

40

218-673

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

FIT STL BULKHD .375MJ .375MJ

2шт.

41

25-159

JAM NUT,Jam, 9/16"-18, G5

- hex., jam (9/16" - 18 NF)

2шт.

42

L12625

HOSE

- clutch control, rear, 15-1/4" long (387 mm)

1шт.

43

L40173

TUBE,1.67" OD

- clutch control, rear

1шт.

44

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - straight, male

1шт.

45

L12627

CYLINDER

- transmission clutch cut-out

1шт.

46

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

47

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

48

25-104

NUT,1/4"-20, G5

1шт.

222-5002

HYD CONNECTOR,1/2"-20 x 1/8" NPT, Hi-seal

CONNECTOR ASSY. - straight, flex tube (All W26LF models; and late production W26B models with Roll Over Protection Structures), Includes: Ref. 49 - 51

2шт.

49

NSS

NOT SOLD SEPARAT

CONNECTOR - straight, flex tube

1шт.

50

222-5047

SLEEVE,1/4" Tube

- flex tube

1шт.

51

222-5060

NUT,1/2"-20

NUT - flex tube

1шт.

52

L51498

TUBE,0.25" OD x 46" L

- flex, horn control to horn (All W26LF models; and late production W26B models with Roll Over Protection Structures)

1шт.
