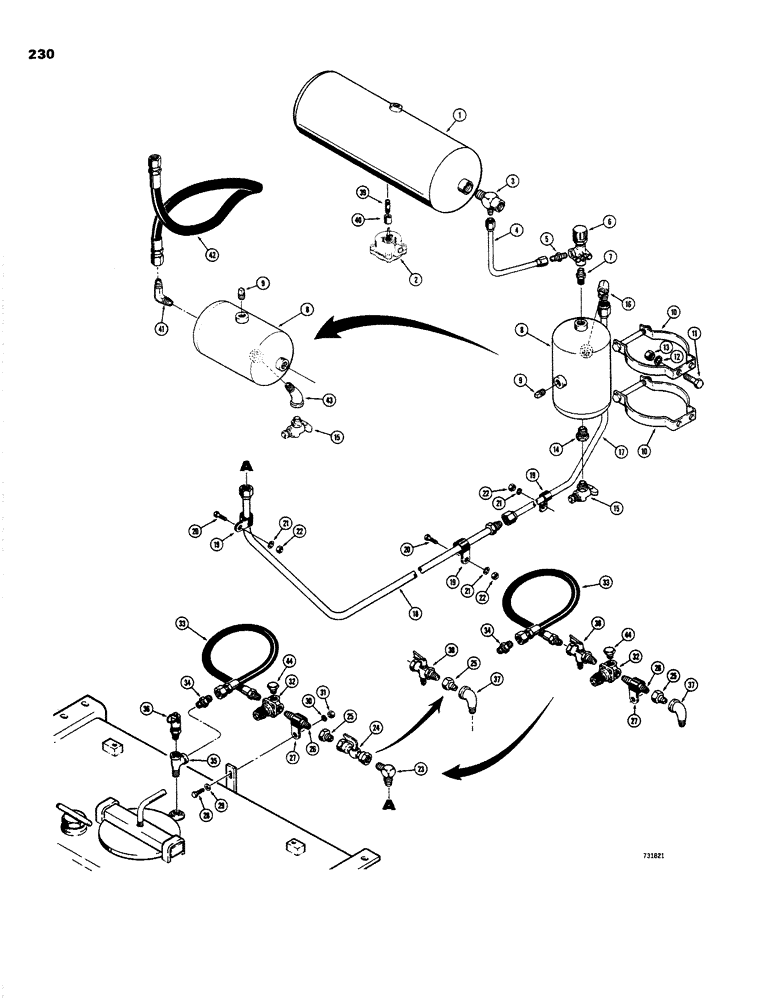

Запчасти Case W26B (230) - BRAKE SYSTEM MOISTURE EJECTION AND HYDRAULIC TANK PRESSURE LINES TRACTOR SN. 9110100 AND AFTER (07) - BRAKES

1

L43018

RESERVOIR

- air, brake system

1шт.

2

L51573

VALVE

ASSEMBLY - moisture ejection (Parts list figure 244)

1шт.

3

L40329

FITTING

- special, 4 - way

1шт.

4

L41254

TUBE - main air reservoir to secondary air reservoir (When stock is exhausted, order L54151 hose for service) 0.375" OD x 7.9, 7.9" L

1шт.

4

L54151

HOSE ASSY.

HOSE - main air reservoir to secondary air reservoir 15-1/2" long (393 mm) Not shown

1шт.

5

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - straight, male

1шт.

6

L13530

VALVE

- pressure protection (Parts list figure 248)

1шт.

7

217-61

STEM,3/8"-18 NPTF x 1/4"-18 NPTF

NIPPLE - reducing, brass (3/8" x 1/4")

1шт.

8

L12631

RESERVOIR

- air, secondary

1шт.

9

221-2

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - pipe, square head (1/4" NPT)

1шт.

10

L12632

BRACKET

- mounting, reservoir

2шт.

11

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

12

92-6

LOCK WASHER,3/8"

4шт.

13

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

14

221-53

BUSHING

- reducer (3/8" x 1/4") If used

1шт.

15

217-101

VALVE

COCK - drain

1шт.

16

218-1057

ELBOW,90 Degree, 7/8"-14, 37 Degree x 3/8"-18, NPTF

- male, 90 degrees

1шт.

17

L40126

TUBE ASSY.,0.625" OD

TUBE - tank to air regulator valve (Front)

1шт.

18

L40347

TUBE,25.62, 10.9" L

- tank to air regulator valve (Rear)

1шт.

19

NLS

NO LONGER SERVICED

- tube

3шт.

20

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

21

92-6

LOCK WASHER,3/8"

3шт.

22

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

3шт.

23

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (Used with L50463 valve only)

1шт.

24

L50463

VALVE

- shutoff (Two 1/2" NPT female ports) If used

1шт.

25

221-88

REDUCER,Hex, 1/2" x 1/4" NPT

BUSHING - reducer (1/2" X 1/4")

1шт.

26

221-147

NIPPLE, LUBE

NIPPLE - pipe (1/4" x 7")

1шт.

27

49778

CLAMP

- tube

1шт.

28

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

29

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (5/16")

1шт.

30

92-5

LOCK WASHER,5/16"

1шт.

31

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

32

L53292

VALVE

- air pressure regulator

1шт.

33

L48026

HOSE

- air regulator valve, 16" long (406 mm)

1шт.

34

218-1023

HYD CONNECTOR,1/2"-20, 37 Degree x 1/4"-18, NPTF

CONNECTOR - male, straight

1шт.

35

221-691

TEE

- straight, 1/4" pipe

1шт.

36

L53291

VALVE

- pressure relief

1шт.

The replacement part does not have ring to relieve pressure. To relieve pressure, loosen the main cap.

1шт.

37

218-515

ELBOW,90 Degree, 7/8"-14, 37 Degree x 1/2"-14, NPTF

- street, 90 degrees (5/8" male tube to 1/2" female pipe) Used with L53739 valve only

1шт.

38

L53739

VALVE

- shut off (1 male and 1 female 1/4" ports) If used

1шт.

39

221-1130

PIPE,Nipple, 1/4" NPT x 7/8"

NIPPLE - pipe (1/4" NPT x 7/8")

1шт.

40

221-1327

X

COUPLING - pipe (1/4" NPT)

1шт.

41

218-1057

ELBOW,90 Degree, 7/8"-14, 37 Degree x 3/8"-18, NPTF

- pipe, 90 degrees (3/8" pipe to 5/8" JIC) If used

1шт.

42

L54564

HOSE

- tank to air regulator valve (If used)

1шт.

43

221-402

ELBOW,45 Degree, 1/4"-27, NPT

- street, 45 degrees (If used)

1шт.

44

221-651

PLUG,Hex Hd, 1/8"-27

- hex. head pipe (1/8" NPT)

1шт.
