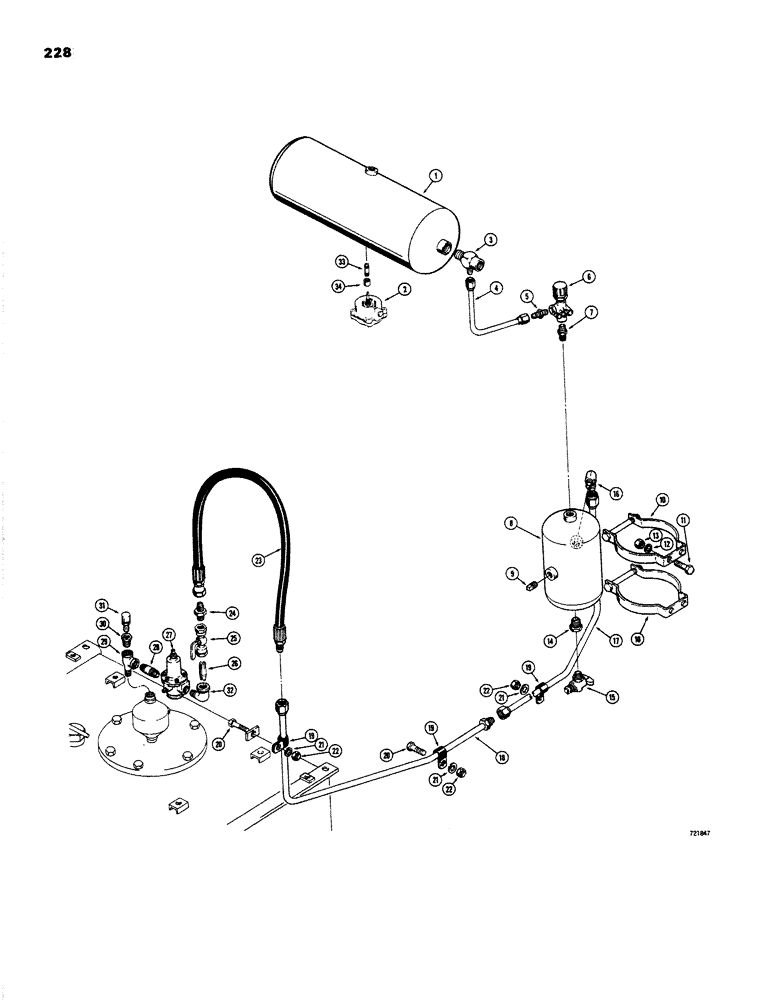

Запчасти Case W26B (228) - BRAKE SYSTEM, MOISTURE EJECTION AND HYDRAULIC TANK PRESSURE LINES TRACTOR SN. 9109992 THRU 9110100 (07) - BRAKES

1

L43018

RESERVOIR

- air, brake system

1шт.

2

L51573

VALVE

ASSEMBLY - moisture ejection (Parts list figure 244)

1шт.

3

L40329

FITTING

- special, 4 - way

1шт.

4

L41254

TUBE - main air reservoir to secondary air reservoir (When stock is exhausted, order L54151 hose for service) 0.375" OD x 7.9, 7.9" L

1шт.

4

L54151

HOSE ASSY.

HOSE - main air reservoir to secondary air reservoir, 15-1/2" long (393 mm) Not shown

1шт.

5

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - straight, male

1шт.

6

L13530

VALVE

- pressure protection (Parts list figure 248)

1шт.

7

217-61

STEM,3/8"-18 NPTF x 1/4"-18 NPTF

NIPPLE - reducing, brass (3/8" x 1/4")

1шт.

8

L12631

RESERVOIR

- air, secondary

1шт.

9

221-653

PLUG - pipe, square head (1/4" NPT)

1шт.

10

L12632

BRACKET

- mounting, reservoir

2шт.

11

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

12

92-6

LOCK WASHER,3/8"

4шт.

13

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

14

221-53

BUSHING

- reducer (3/8" x 1/4")

1шт.

15

217-101

VALVE

COCK - drain

1шт.

16

218-1057

ELBOW,90 Degree, 7/8"-14, 37 Degree x 3/8"-18, NPTF

- male, 90 degrees

1шт.

17

L40126

TUBE ASSY.,0.625" OD

TUBE - tank to air regulator valve (Front)

1шт.

18

L40347

TUBE,25.62, 10.9" L

- tank to air regulator valve (Rear)

1шт.

19

49885

CLAMP

- tube

3шт.

20

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

21

92-6

LOCK WASHER,3/8"

3шт.

22

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

3шт.

23

L43040

HOSE

- air regulator valve 18-1/4" long (463 mm)

1шт.

24

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - hose to shutoff valve

1шт.

25

L50463

VALVE

- air shutoff

1шт.

26

221-1185

FITTING

NIPPLE - shutoff, Serial Range: valve-elbow

1шт.

27

L46498

LOCK VALVE

VALVE - air pressure regulator (Parts list figure 246)

1шт.

28

221-1185

FITTING

NIPPLE - pipe (1/2" NPT x 1-1/8")

1шт.

29

221-1693

TEE,Street, 1/2" NPT

- street, 90 degrees (1/2" NPT)

1шт.

30

221-1054

BUSHING

- reducing (1/2" NPT x 1/8" NPT)

1шт.

31

D38663

VENT

VALVE - relief

1шт.

32

221-414

FITTING,90 Degree, 1/2"-14, NPT

ELBOW - street, 90 degrees

1шт.

33

221-1130

PIPE,Nipple, 1/4" NPT x 7/8"

NIPPLE - pipe (1/2" NPT x 7/8" long) If used

1шт.

34

221-1327

X

COUPLING - pipe (1/4" NPT) If used

1шт.
