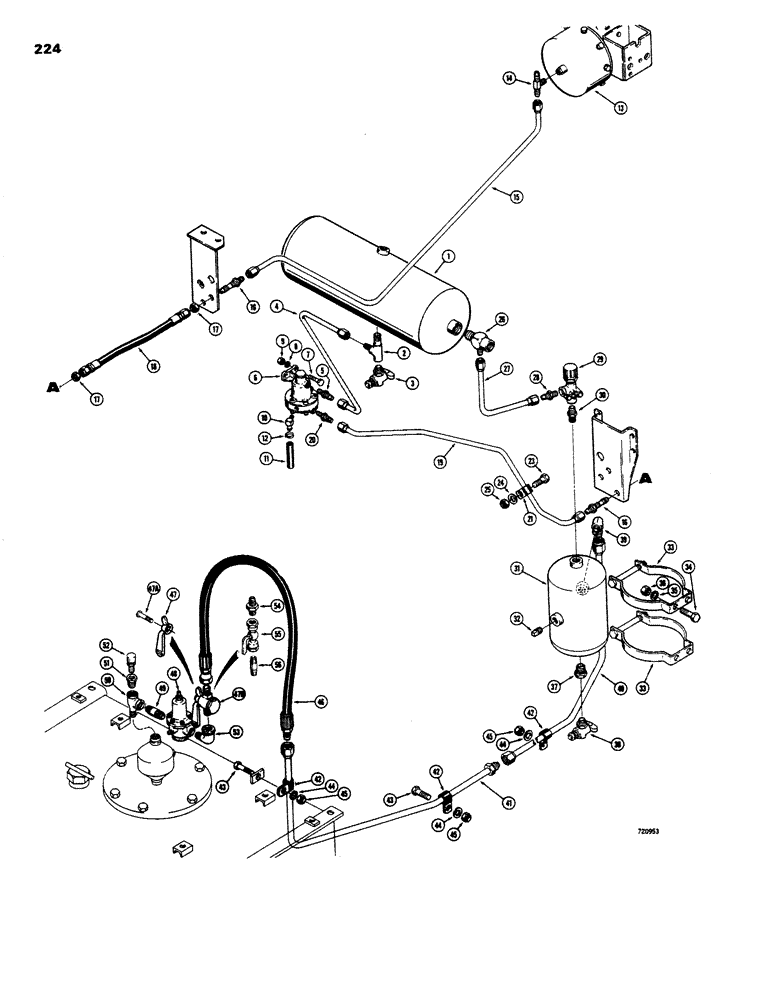

Запчасти Case W26B (224) - BRAKE SYSTEM, MOISTURE EJECTION AND HYDRAULIC TANK, PRESSURE LINES BEFORE TRACTOR SN. 9109992 (07) - BRAKES

1

L43018

RESERVOIR

- air, brake system

1шт.

2

L40338

FITTING - air, 3 - way

1шт.

3

E71648

VALVE

COCK - drain

1шт.

4

L41258

TUBE

- reservoir to moisture ejection valve

1шт.

5

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - straight, male

1шт.

6

L12620

VALVE

- moisture ejection (Parts list figure 242)

1шт.

7

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

8

92-5

LOCK WASHER,5/16"

2шт.

9

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

10

217-130

ELBOW,90 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

FITTING - valve to drain hose

1шт.

11

L43592

HOSE - drain, moisture valve

1шт.

12

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

1шт.

13

REF

INSTRUCTION

MASTER CYLINDER - brake, R.H. front (See figures 238 and 240 for proper cylinder)

1шт.

14

218-553

TEE,9/16"-18, 37 Degree x 1/4"-18, NPTF Br

- master cylinder to moisture ejection line

1шт.

15

L12626

TUBE - moisture ejection, front

1шт.

16

218-673

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

FIT STL BULKHD .375MJ .375MJ

2шт.

17

25-159

JAM NUT,Jam, 9/16"-18, G5

- hex., jam (9/16" - 18 NF)

2шт.

18

L12625

HOSE

- moisture ejection, 15-1/4" long (387 mm)

1шт.

19

L40098

TUBE - moisture ejection, rear 0.375" OD

1шт.

20

218-453

HYD CONNECTOR,9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR, HYD., , Straight, male 9/16"-18, 37º x 1/8"-27, NPTF

1шт.

21

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- tube, upper

1шт.

23

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

24

92-6

LOCK WASHER,3/8"

1шт.

25

25-106

NUT,3/8"-16, G5

- hex (3/8" - 16 NC)

1шт.

26

L40329

FITTING

- special, 4 - way

1шт.

27

L54151

HOSE ASSY.

HOSE - main air reservoir to secondary air reservoir, 15-1/2" long (393 mm) Not shown

1шт.

28

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - straight, male

1шт.

29

L13530

VALVE

- pressure protection (Parts list figure 248)

1шт.

30

217-61

STEM,3/8"-18 NPTF x 1/4"-18 NPTF

NIPPLE - reducing, brass (3/8" x 1/4")

1шт.

31

L12631

RESERVOIR

- air, secondary

1шт.

32

221-2

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - pipe, square head (1/4" NPT)

1шт.

33

L12632

BRACKET

- mounting, reservoir

2шт.

34

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

35

92-6

LOCK WASHER,3/8"

4шт.

36

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

37

221-53

BUSHING

- reducer (3/8" x 1/4")

1шт.

38

217-101

VALVE

COCK - drain

1шт.

39

218-1057

ELBOW,90 Degree, 7/8"-14, 37 Degree x 3/8"-18, NPTF

- male, 90 degrees

1шт.

40

L40126

TUBE ASSY.,0.625" OD

TUBE - tank to air regulator valve (Front)

1шт.

41

L40347

TUBE,25.62, 10.9" L

- tank to air regulator valve (Rear)

1шт.

42

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- tube

3шт.

43

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

44

92-6

LOCK WASHER,3/8"

3шт.

45

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

3шт.

46

L43040

HOSE

- air regulator valve, 18-1/4" long (463 mm)

1шт.

L12643

SHUT-OFF VALVE

VALVE - air shutoff (For service order L50463 valve 218-445 connectior and 221-1185 nipple, listed below), Includes: Ref. 47 - 47B

1шт.

47

L32300

HANDLE - valve

1шт.

47a

175-463

SCREW - machine, truss head (#10 - 24 NC x 1/2")

1шт.

47b

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

48

L46498

LOCK VALVE

VALVE - air pressure regulator (Parts list figure 246)

1шт.

49

221-1185

FITTING

NIPPLE - pipe (1/2" NPT x 1-1/8")

1шт.

50

221-1693

TEE,Street, 1/2" NPT

- street, 90 degrees (1/2" NPT)

1шт.

51

221-1054

BUSHING

- reduching (1/2" NPT x 1/8" NPT)

1шт.

52

D38663

VENT

VALVE - relief

1шт.

53

221-414

FITTING,90 Degree, 1/2"-14, NPT

ELBOW - street, 90 degrees

1шт.

54

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - hose to shutoff valve (Used with L50463 valve only)

1шт.

55

L50463

VALVE

- air shutoff

1шт.

56

221-1185

FITTING

NIPPLE - shutoff valve to elbow (Used with L50463 valve only)

1шт.
