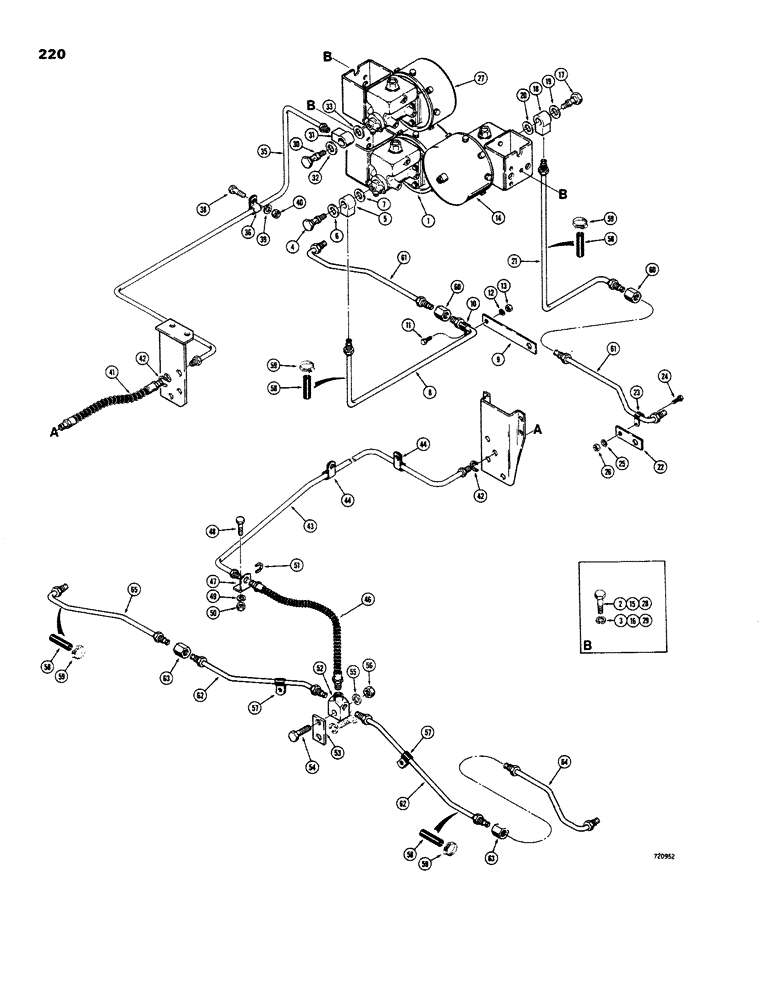

Запчасти Case W26B (220) - BRAKE SYSTEM, BRAKE MASTER CYLINDERS TO WHEEL CYLINDERS (07) - BRAKES

1

REF

INSTRUCTION

MASTER CYLINDER - brake, L.H. front (See figures 238 and 240 for proper cylinder)

1шт.

2

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

3

92-6

LOCK WASHER,3/8"

3шт.

4

A12864

BOLT

- connector, swivel to master cylinder

1шт.

5

L12636

CONNECTOR, ELEC

CONNECTOR - swivel, brake line

1шт.

6

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - copper (Outer)

1шт.

7

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- copper (Inner)

1шт.

8

L51136

TUBE,0.312" OD

- master cylinder to L.H. front wheel cylinder

1шт.

9

L16752

SUPPORT - brake tube clamp, L.H.

1шт.

10

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

- brake tube

1шт.

11

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

12

92-6

LOCK WASHER,3/8"

1шт.

13

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

14

REF

INSTRUCTION

MASTER CYLINDER - brake, R.H. front (See figures 238 and 240 for proper cylinder)

1шт.

15

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

16

92-6

LOCK WASHER,3/8"

3шт.

17

A12864

BOLT

- connector, swivel to master cylinder

1шт.

18

L12636

CONNECTOR, ELEC

CONNECTOR - swivel, brake line

1шт.

19

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - copper (Outer)

1шт.

20

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- copper (Inner)

1шт.

21

L51138

TUBE,0.312" OD

- master cylinder to R.H. front wheel cylinder

1шт.

22

L16753

SUPPORT - brake tube clamp, R.H.

1шт.

23

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

- brake tube

1шт.

24

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

25

92-6

LOCK WASHER,3/8"

1шт.

26

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

27

REF

INSTRUCTION

MASTER CYLINDER - brake, rear (See figures 238 and 240 for proper cylinder)

1шт.

28

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

29

92-6

LOCK WASHER,3/8"

3шт.

30

A12864

BOLT

- connector, swivel to master cylinder

1шт.

31

A18531

FITTING

CONNECTOR - swivel, rear brake line

1шт.

32

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - copper (Outer)

1шт.

33

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- copper (Inner)

1шт.

35

L12614

TUBE

- master cylinder to rear brake cylinders (Front)

1шт.

36

51200191

CLAMP

CLIP - tube

1шт.

38

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

39

92-6

LOCK WASHER,3/8"

1шт.

40

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

41

L40335

HOSE ASSY.

HOSE - master cylinder to rear brake cylinder (Front) 16-5/8" long (422 mm)

1шт.

42

A12628

WASHER

RETAINER -, Serial Range: hose-bracket

2шт.

43

L40337

TUBE,0.25" OD

- rear brake cylinder (Rear)

1шт.

44

51200191

CLAMP

CLIP - tube

2шт.

46

L40334

HOSE ASSY.

HOSE - rear brake cylinder (Rear) 12-1/4" long (311 mm)

1шт.

47

L12617

BRACKET - hose support

1шт.

48

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

49

92-6

LOCK WASHER,3/8"

1шт.

50

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

51

A12628

WASHER

RETAINER -, Serial Range: hose-bracket

1шт.

52

A13100

TEE

- brake line

1шт.

53

L12611

BRACKET

- tee mounting

1шт.

54

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

55

92-8

LOCK WASHER,1/2"

1шт.

56

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

1шт.

57

L48478

CLIP - tube

2шт.

58

L51446

HOSE ASSY.

HOSE - protection, brake line

4шт.

59

214-251

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP - hose

4шт.

60

222-1054

HYD CONNECTOR,5/16" Inv Fl

CONNECTOR - tube, brass (5/16") Front brakes

2шт.

61

L51140

TUBE,0.312" OD x 18, 2.4" L

- master cylinder to front wheel cylinders, at wheel cylinders

2шт.

62

L51146

TUBE,0.25" OD x 21, 5.3" L

- master cylinder to rear wheel cylinders at tee

2шт.

63

222-1053

HYD CONNECTOR,1/4" Inv Fl

CONNECTOR - tube, brass (1/4") Rear brakes

2шт.

64

L51142

TUBE - reara brake line, R.H. (At wheel cylinder) 0.25" OD x 12.8, 3.2" L

1шт.

65

L51144

TUBE,0.25" OD

- rear brake line, L.H. (At wheel cylinder)

1шт.
