Запчасти Case W26B (206) - ALCOHOL EVAPORATOR (07) - BRAKES

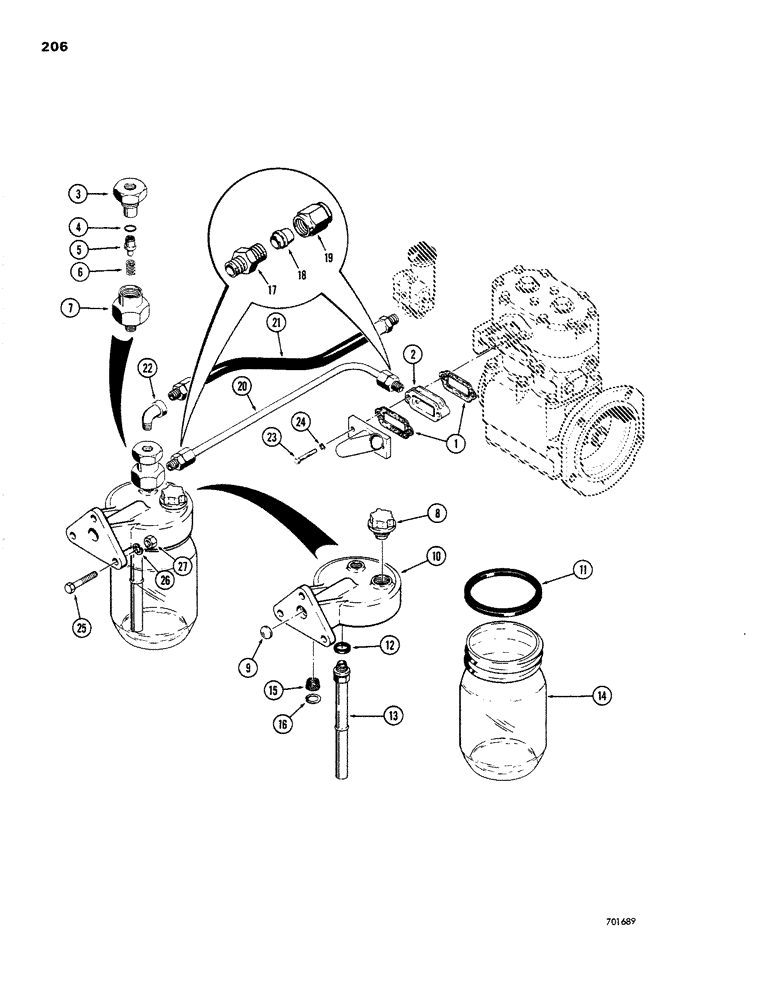

Схема запчастей Case W26B - (206) - ALCOHOL EVAPORATOR (07) - BRAKES

Артикул

Название

Примечание

Количество

L48232

KIT

EVAPORATOR ASSEMBLY - alcohol

1шт.

L46372

KIT

- alcohol evaporator, Includes: Ref. 1 - 27

1шт.

1

L31457

GASKET

- adapter

2шт.

2

L32930

ADAPTER

- compressor

1шт.

L33157

VALVE

ASSEMBLY - check, at evaporator, Includes: Ref. 3 - 7

1шт.

3

L33162

NUT

- cap

1шт.

4

L33161

O-RING,0.299" ID x 0.072" Width

GROMMET - valve

1шт.

5

L33160

VALVE

- check

1шт.

6

L33159

SPRING

- valve

1шт.

7

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

L33145

EVAPORATOR

ASSEMBLY - alcohol, Includes: Ref. 8 - 16

1шт.

8

L33151

PLUG

- filler

1шт.

9

L33155

PLUG

- expansion, steel (1/2" dia.)

1шт.

10

L33146

BODY

- alcohol evaporator

1шт.

11

L33153

SEALING RING

-, Serial Range: housing-jar

1шт.

12

L33156

RING

- sealing, evaporator tube

1шт.

13

L33152

TUBE,0.25" ID x 0.33" OD x 4.87" L

- evaporator

1шт.

14

L33154

RESERVOIR

JAR - alcohol evaporator, plastic

1шт.

15

L33150

FILTER

- air intake

1шт.

16

A58439

RETAINER

RING - retaining filter

1шт.

222-5002

HYD CONNECTOR,1/2"-20 x 1/8" NPT, Hi-seal

CONNECTOR ASSEMBLY - flex tube (1/4" tube), Includes: Ref. 17 - 19

2шт.

17

NSS

NOT SOLD SEPARAT

CONNECTOR - flex tube (1/4" tube)

1шт.

18

222-5047

SLEEVE,1/4" Tube

- 1/4" Tube

1шт.

19

222-5060

NUT,1/2"-20

NUT - 1/4" tube

1шт.

20

L16535

TUBE,0.25" OD x 20.5" L

- alcohol evaporator to compressor

1шт.

21

F65689

HOSE,317.00 mm

- check valve to governor 317.00 mm

1шт.

22

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street 90º, 1/8"-27, NPT

1шт.

23

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- 5/16"-18 NC x 1-1/2" (Compressor adapter mounting)

2шт.

24

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

25

13-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5, Full Thd

(Alcohol evaporator mounting) Hex, 1/4"-20 x 7/8", G5, Full Thd

3шт.

26

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

27

25-104

NUT,1/4"-20, G5

3шт.

Выбрано товаров: 32
