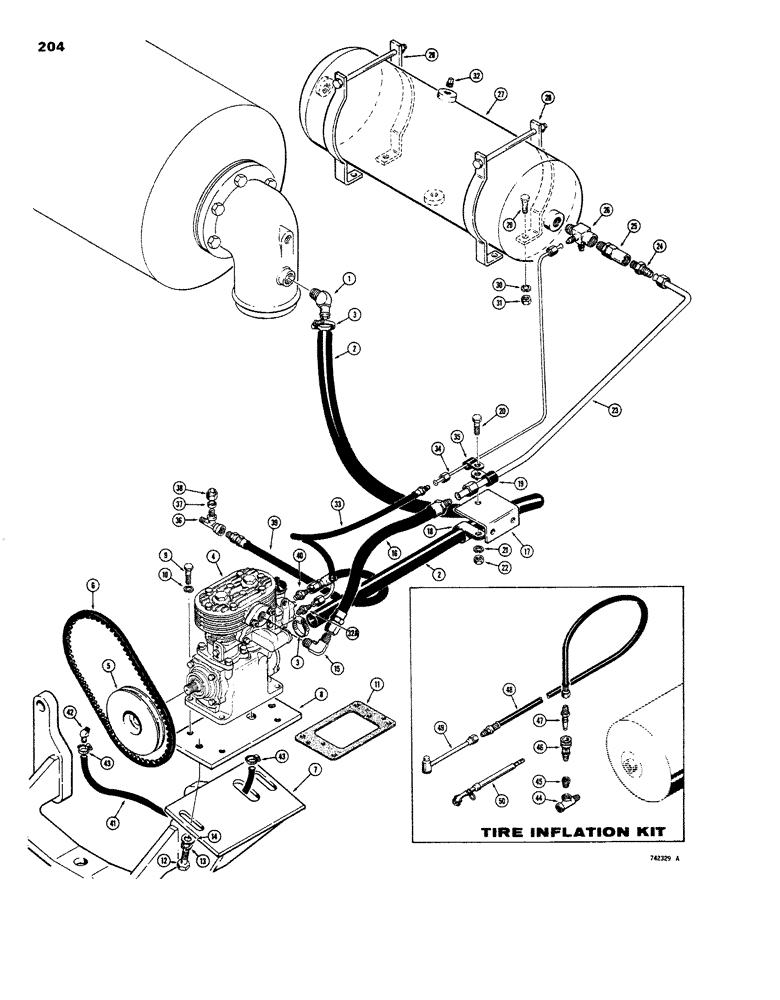

Запчасти Case W26B (204) - BRAKE SYSTEM, AIR COMPRESSOR AND RELATED PARTS (06) - POWER TRAIN

1

217-145

ELBOW,45 Degree Elbow, 3/4" Hose Barb x 3/4" Male NPTF

- 45 degrees, air cleaner to inlet hose

1шт.

2

L45766

HOSE

- inlet, air compressor, 45" long (1143 mm)

1шт.

3

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

4

L17683

COMPRESSOR

- air (Parts list figure 208)

1шт.

5

L50045

PULLEY

- air compressor

1шт.

6

L45826

V-BELT,0.50" W x 51.50" L

Compressor drive 0.50" W x 51.50" L

1шт.

7

L45624

BRACKET

- compressor mounting

1шт.

8

L47115

PLATE

-, Serial Range: compressor-bracket

1шт.

9

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

10

92-6

LOCK WASHER,3/8"

4шт.

11

L32918

GASKET

- compressor

1шт.

12

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

13

92-8

LOCK WASHER,1/2"

2шт.

14

95-8

WASHER,1/2"

plain 1/2"

2шт.

15

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degrees, compressor to outlet hose

1шт.

16

L54443

HOSE ASSY.

HOSE - air compressor outlet, 30-1/4" long (788 mm)

1шт.

17

L40322

BRACKET - compressor line clamp

1шт.

18

D39138

CLAMP

- inlet hose

1шт.

19

49771

CLAMP

- compressor outlet line

1шт.

20

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

21

92-5

LOCK WASHER,5/16"

1шт.

22

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

23

L40132

TUBE,0.625" OD

- compressor to check valve

1шт.

24

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - male, straight

1шт.

25

L12586

VALVE

CHECK VALVE - air reservoir

1шт.

26

L40329

FITTING

- special, 4-way

1шт.

27

L43018

RESERVOIR

- air, brake system

1шт.

28

L12588

BRACKET

- mounting, reservoir, Includes hardware

2шт.

29

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

30

92-6

LOCK WASHER,3/8"

4шт.

31

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

32

221-1013

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - pipe, square head (3/8" NPT)

1шт.

32a

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR - male, straight

1шт.

33

L45768

HOSE ASSY.

HOSE - compressor governor to reservoir, 24-5/16" (617 mm) long

1шт.

34

L40172

TUBE,0.25" OD x 22.6, 8.1" L

- compressor govenor to reservoir

1шт.

35

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- tube to bracket

1шт.

222-82

TEE,1/2"-12 Male x 1/8 NPT Fem Run x 1/8 NPT Br

ASSEMBLY - flex tube, 1/4" tube, Includes: Ref. 36 - 38

1шт.

36

NSS

NOT SOLD SEPARAT

TEE - flex tube, 1/4" tube

1шт.

37

222-102

SLEEVE,1/4" Tube

1шт.

38

87017024

TUBE NUT,1/2"-24

NUT - flex tube, 1/4" tube

1шт.

39

L40303

HOSE

- compressor lubrication, inlet, 15-1/2" long (393 mm)

1шт.

HOSE MEASURES 12.25

1шт.

40

218-442

HYD CONNECTOR,1/2" - 20 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR - male, straight

1шт.

41

L47116

HOSE

- lubrication, return, 20" long (508 mm)

1шт.

42

217-144

45 ELBOW,45 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

Male 45º, 5/8" Hose x 1/2" NPTF Beaded

1шт.

43

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

44

217-1064

TEE,1/2" - 14 Female x 1/2" - 14 Male Run

- pipe, tire inflation kit

1шт.

45

217-44

REDUCER,1/2" - 14 NPT x 3/8" - 18 NPT

Bushing, Tire inflation kit 1/2"-14 NPTF x 3/8"-18 Fem NPTF

1шт.

46

L13978

VALVE

CHECK - air, tire inflation kit

1шт.

47

L13979

COUPLING

COUPLER - adapter, tire inflation kit

1шт.

48

L15274

HOSE

- inflation, tire kit

1шт.

49

L13983

FAN

CHUCK - air, tire inflation kit

1шт.

50

L13977

GAUGE ASSY.

GAUGE - tire pressure, inflation kit

1шт.
