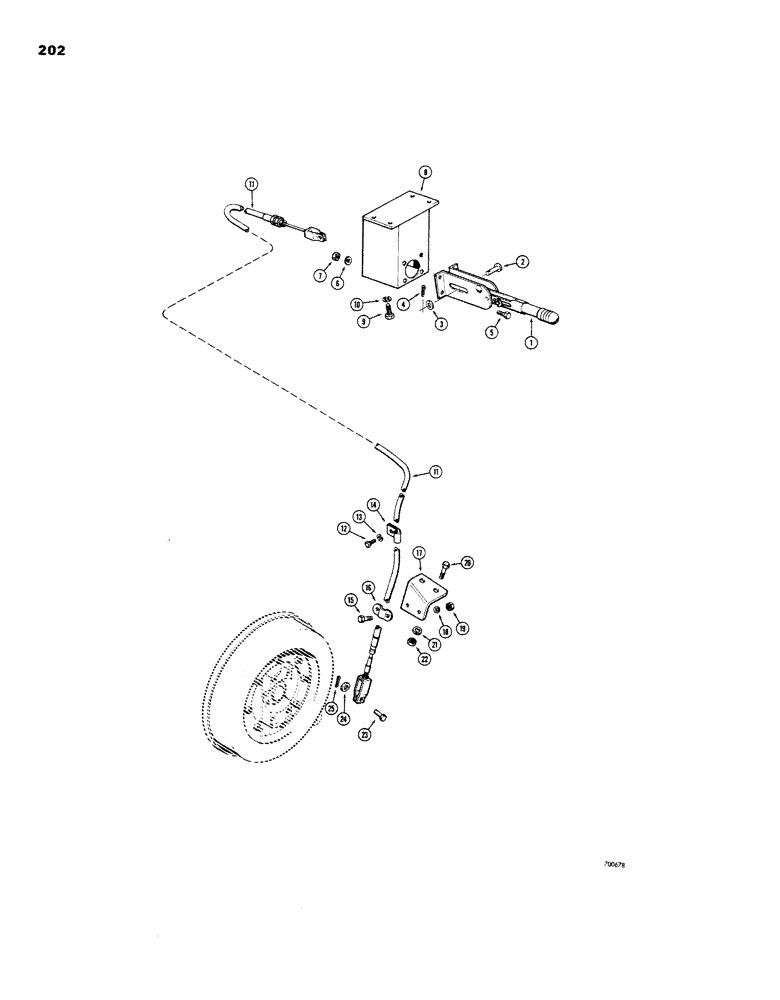

Запчасти Case W26B (202) - BRAKE SYSTEM, PARKING BRAKE (06) - POWER TRAIN

A17214

LEVER

ASSEMBLY - hand brake, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

LEVER - hand brake

1шт.

2

L30975

AXLE PIN,7.82mm OD x 39.69mm L

PIN - clevis

1шт.

3

95-5

WASHER,3/8" x 7/8" x .083"

- plain (5/16")

1шт.

4

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

5

15-616

BOLT (MACHINE)

HHCS - 3/8" - 16 NC x 1"

4шт.

6

92-6

LOCK WASHER,3/8"

4шт.

7

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

8

L12651

BRACKET - cable and lever mounting

1шт.

9

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

10

92-6

LOCK WASHER,3/8"

4шт.

11

L12650

CABLE

- parking brake lever to brake shoe

1шт.

12

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

13

92-6

LOCK WASHER,3/8"

1шт.

14

A26696

NO LONGER SERVICED

CLIP -, Serial Range: cable-bracket

1шт.

15

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

16

A55980

CLAMP

-, Serial Range: cable-bracket

1шт.

17

L12655

BRACKET - cable, parking brake

1шт.

18

92-6

LOCK WASHER,3/8"

2шт.

19

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

20

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

2шт.

21

92-6

LOCK WASHER,3/8"

2шт.

22

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

23

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Cable to parking brake 3/8" x 1.060"

1шт.

24

95-5

WASHER,3/8" x 7/8" x .083"

- plain (5/16")

1шт.

25

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.
