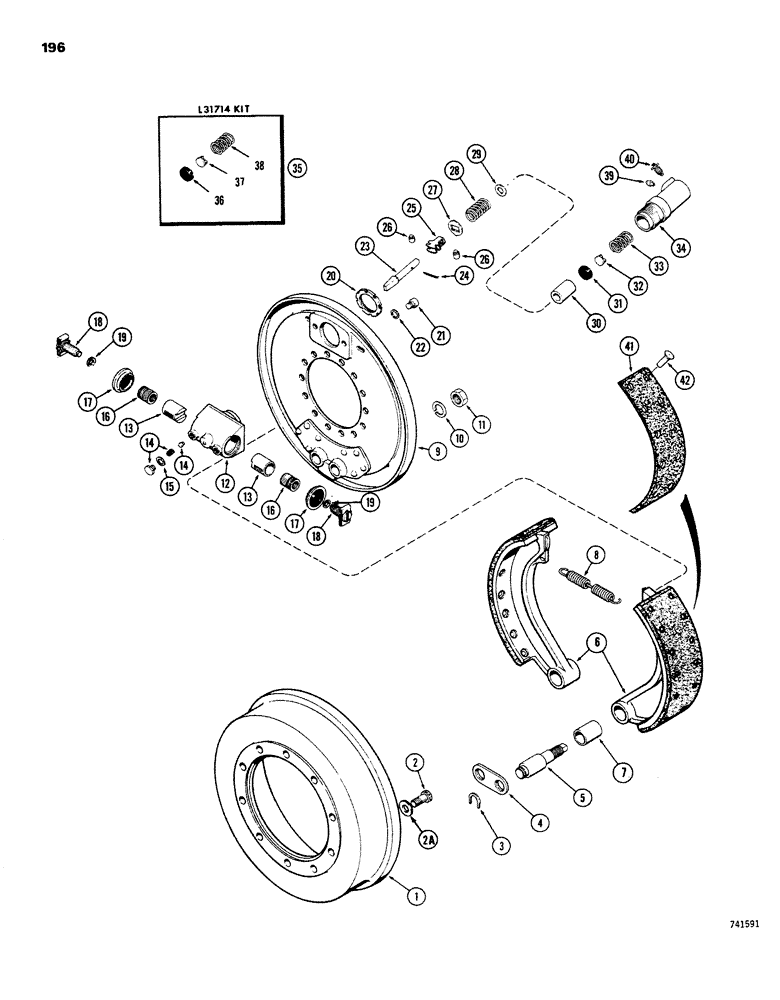

Запчасти Case W26B (196) - L58803 REAR AXLE BRAKES (06) - POWER TRAIN

1

L31611

BRAKE

DRUM - brake, wheel

2шт.

2

26-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

- mounting, brake drum to hub

20шт.

2a

L30737

WASHER

- 5/8" hardened

20шт.

L35903

BRAKE ASSEMBLY - articulated loader, Includes: Ref. 3 - 19

2шт.

3

A13126

RING, SNAP,22.23mm ID x 33.34mm OD x 2.278mm Thk

"C" WASHER - anchor pin, rear brake

2шт.

4

A15009

ROD

LINK - anchor pin

1шт.

5

L31645

AXLE PIN

PIN - brake anchor

2шт.

6

L31621

BRAKE

SHOE ASSEMBLY - brake with lining, Includes: Ref. 7

2шт.

7

A15004

BUSHING

- brake shoe

1шт.

8

L31644

VALVE SPRING

SPRING - brake return

1шт.

9

L32963

LARGE PLATE

PLATE - backing, brake

1шт.

10

192-119

LOCK WASHER

WASHER - lock (7/8")

2шт.

11

25-1114

NUT,7/8"-14, G5

- hex., anchor pin (7/8" NF)

2шт.

L35904

ACTUATOR

ASSEMBLY - automatic brake adjusting, Includes: Ref. 12 - 18

1шт.

12

L35905

HOUSING

- automatic adjuster

1шт.

13

L35906

PLUNGER

- adjustment

2шт.

14

L35909

GUIDE - pawl

2шт.

15

L31634

GASKET

- plunger guide

2шт.

L35907

ACTUATOR

- automatic adjusting, Includes: Ref. 16 - 19

2шт.

16

NSS

NOT SOLD SEPARAT

ACTUATOR - adjusting

1шт.

17

L31632

SEAL

- actuator

1шт.

18

L35908

BOLT

- adjusting

1шт.

19

L35910

RING - lock

1шт.

20

L31811

NUT

- spacer, brake

1шт.

21

L31646

BOLT (SPREADER)

BOLT - backing plate to actuator housing

2шт.

22

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 1/2"

2шт.

23

L31622

WEDGE

- brake

1шт.

24

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4", brake wedge

1шт.

25

L31624

RETAINER

- roller cage

1шт.

26

L31623

ROLLER

- brake wwedge

2шт.

27

L31625

WASHER

- wedge retainer

1шт.

28

L31626

SPRING

- wedge return

1шт.

29

L31627

WASHER

- brake wedge

1шт.

L31638

CYLINDER

ASSEMBLY - wheel brake (Not illustrated), Includes: Ref. 30 - 38

2шт.

30

L31640

PISTON - Stopmaster brake cylinder

1шт.

31

NSS

NOT SOLD SEPARAT

CUP - Stopmaster brake cylinder

1шт.

32

NSS

NOT SOLD SEPARAT

PLUG - Stopmaster brake cylinder

1шт.

33

NSS

NOT SOLD SEPARAT

SPRING - Stopmaster brake cylinder

1шт.

34

NSS

NOT SOLD SEPARAT

BODY - Stopmaster brake cylinder

1шт.

35

L31714

CYLINDER

KIT - brake rebuild (1-1/4" dia.), Includes: Ref. 36 - 38

1шт.

36

NSS

NOT SOLD SEPARAT

CUP - wheel cylinder

1шт.

37

NSS

NOT SOLD SEPARAT

PLUG - wheel cylinder

1шт.

38

NSS

NOT SOLD SEPARAT

SPRING - wheel cylinder

1шт.

39

L31648

SEAT

- tube, brake cylinder

1шт.

40

L31647

BLEED SCREW

SCREW - bleeder, brake cylinder

1шт.

L32958

BRAKE LINE

BRAKE KIT - riveted lining for one wheel (Use with L31621 brake shoes), Includes: Ref. 41 and 42

1шт.

41

NSS

NOT SOLD SEPARAT

LINING - brake shoe

2шт.

42

NSS

NOT SOLD SEPARAT

RIVET - brake lining mounting

50шт.
