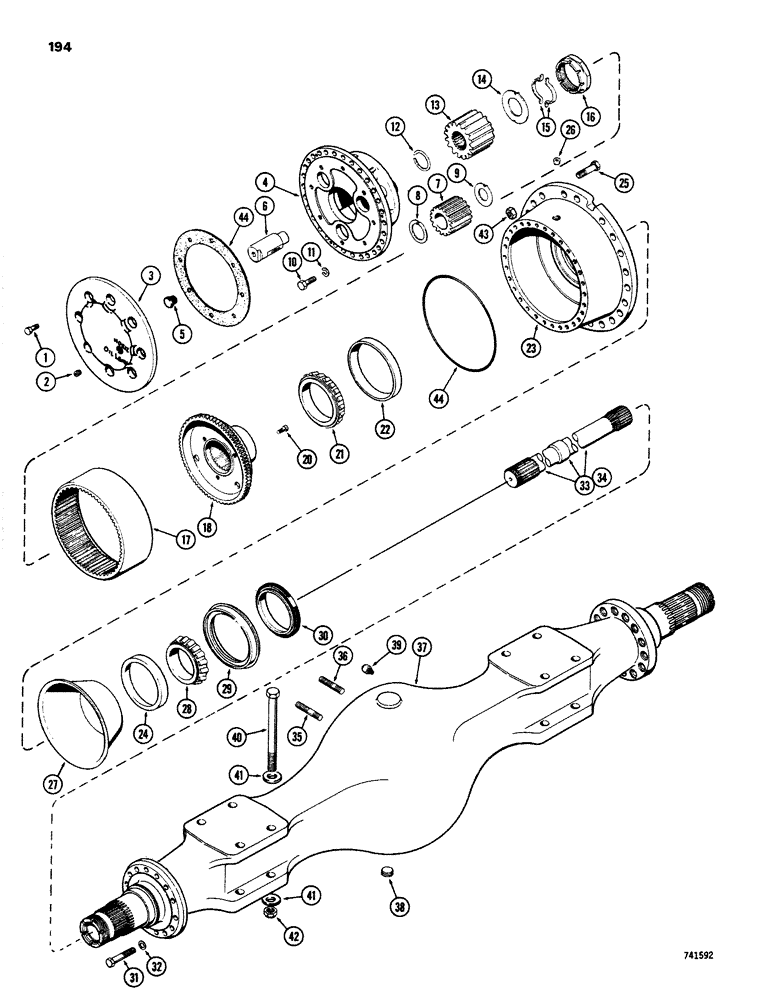

Запчасти Case W26B (194) - L58803 REAR AXLE AND PLANETARIES (06) - POWER TRAIN

1

L34034

BOLT

- planetary spider cover

16шт.

2

221-31

DRAIN PLUG,Sq Soc, 1/4"-18 NPTF

PLUG - pipe, planetary oil filler (1/4" sq. socket head)

2шт.

3

L36114

COVER

- planetary gear spider

2шт.

L36138

U-JOINT SPIDER

SPIDER AND BUTTON - planetary, Includes: Ref. 4 and 5

2шт.

4

NSS

NOT SOLD SEPARAT

SPIDER - planetary

2шт.

5

L36117

BUTTON

- thrust, planetary

6шт.

6

A19885

SHAFT

- planetary

6шт.

7

A14977

GEAR

PINION - planetary

6шт.

8

A14967

WASHER

- thrust, outer

6шт.

9

A19886

WASHER

- thrust, inner

6шт.

10

26-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

60шт.

11

D47366

WASHER

- 1/2" hardened

60шт.

12

A14969

RING, SNAP

SNAP RING - retaining, axle shaft

2шт.

13

A14976

GEAR

- sun, planetary (20 teeth)

2шт.

14

L36118

WASHER

- sun gear, planetary

2шт.

15

L36119

LOCK ASSY

LOCK - hub bearing nut

4шт.

16

L36120

BEARING LOCK NUT

- hub bearing

2шт.

17

L36134

GEAR WHEEL

GEAR - ring, planetary

2шт.

18

L36139

FLANGE

ASSEMBLY - planetary ring gear

2шт.

20

L36124

SCREW,3/8" - 16 x 3/4", Gr 8

- lock

4шт.

21

A14960

BEARING

- cone, outer (Hub)

2шт.

L31614

HUB CAP

HUB ASSEMBLY - wheel (Not illustrated), Includes: Ref. 22 - 24

2шт.

22

A14961

BEARING CUP

CUP - cone bearing, outer (Hub)

1шт.

23

NSS

NOT SOLD SEPARAT

HUB - wheel

1шт.

24

A14985

BEARING CUP

CUP - cone bearing, inner (Hub)

1шт.

25

A13112

STUD

STUD - wheel hub

46шт.

26

221-678

DRAIN PLUG,Sq Soc, 3/4" NPT

PLUG - pipe, planetary drive oil drain (3/4" magnetic)

2шт.

27

A14980

SLINGER

- oil, wheel hub

2шт.

28

A14984

ROLLER BEARING

BEARING - cone, wheel hub (Inner)

2шт.

29

L36141

SLEEVE

- wear

2шт.

30

L36140

OIL SEAL

- oil

2шт.

31

26-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

HHCS - 5/8" - 11 NC x 1-1/2" (Brake mounting)

16шт.

31a

26-1026

BOLT,Hex, 5/8" - 11 x 1-5/8", Gr 8

HHCS - 5/8" - 11 NC x 1-5/8"

12шт.

32

L30737

WASHER

- brake mounting

28шт.

33

L31617

SHAFT

- axle drive, L.H.

1шт.

34

L31616

SHAFT - axle drive, R.H. (Not illustrated)

1шт.

L36136

HOUSING ASSEMBLY - axle, Includes: Ref. 35 - 38

1шт.

35

L30676

STUD

- short, Serial Range: carrier-housing

10шт.

36

L30677

STUD

- long, Serial Range: carrier-housing

4шт.

37

NSS

NOT SOLD SEPARAT

HOUSING - axle

1шт.

38

221-27

DRAIN PLUG,Sq Soc, 1 1/4"-11 1/2, NTPF

PLUG - pipe, sq. socket head (1-1/4" NPT) Housing drain

1шт.

39

A12928

BREATHER

- air, axle housing

1шт.

40

L57180

BOLT

HHCS - 1" - 14 NF x 11", Serial Range: (Axle-trunnion)

8шт.

41

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- special, Serial Range: axle-trunnion

16шт.

42

131-188

LOCK NUT,1"-14, GB

NUT - hex., lock (1" - 14 NF)

8шт.

43

A12522

WHEEL NUT

- wheel hub stud

46шт.

44

M20704

ADHESIVE

GASKET MATERIAL - form in place

1шт.
