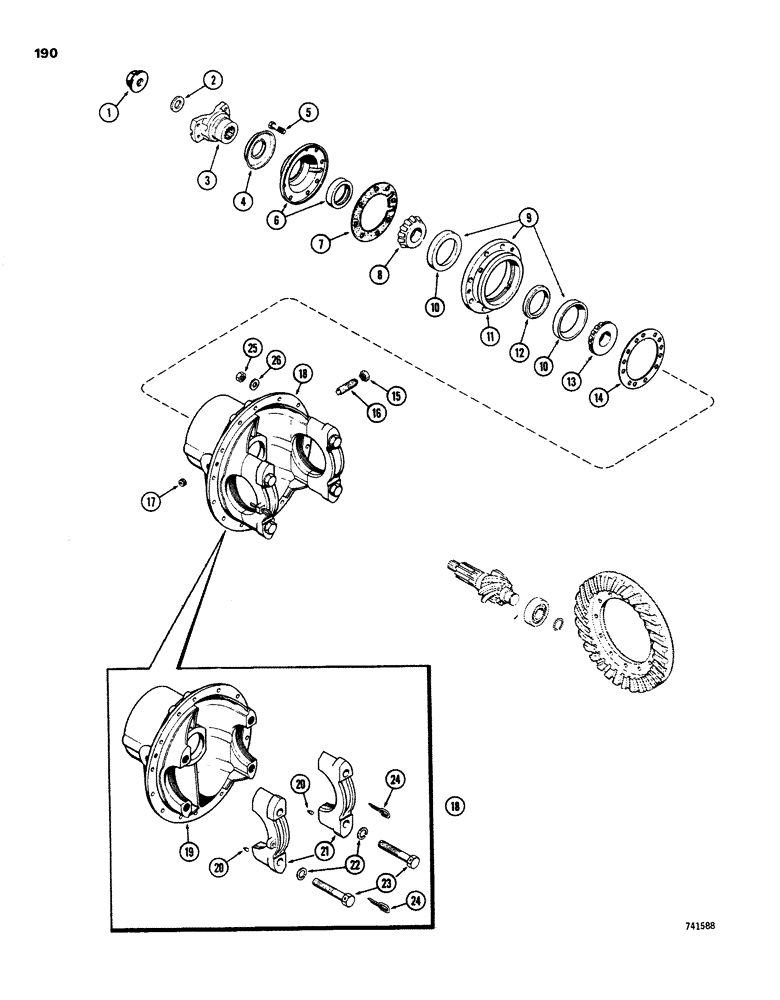

Запчасти Case W26B (190) - L58803 REAR AXLE DIFFERENTIAL, DRIVE SHAFT YOKE, CAGE AND CARRIER (06) - POWER TRAIN

L50231

DIFFERENTIAL

ASSEMBLY - 5-2/7 to 1 ratio (Includes companion flange but not the carrier to housing gasket studs & washer), Includes: Ref. 1 - 24

1шт.

1

L35091

NUT

NUT - companion yoke (Included in L36003 gear set)

1шт.

2

L30787

WASHER

- companion yoke

1шт.

3

L30802

YOKE

- companion, with slinger, Includes: Ref. 4

1шт.

4

NSS

NOT SOLD SEPARAT

SLINGER - oil, companion yoke

1шт.

5

26-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 8

HHCS - 1/2" - 13 NC x 1-1/2" (Cover to bearing cage)

8шт.

6

L30799

COVER ASSY

COVER - pinion cage, forward bearing (With oil seal)

1шт.

7

L30794

GASKET

- cover, pinion cage (Forward bearing)

1шт.

8

L30832

ROLLER BEARING

- cone, outer (Forward bearing pinion cage)

1шт.

9

L30820

CAGE

ASSEMBLY - pinion forward bearing, Includes: Ref. 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

CUP - forward bearing pinion cage

2шт.

11

NSS

NOT SOLD SEPARAT

CAGE - pinion bearing

1шт.

12

L30803

SPACER

- bearing, .248" (6.2 mm)

1шт.

12

L30804

SPACER

- bearing, .248" (6.32 mm)

1шт.

12

L30805

SPACER

- bearing, .250" (6.35 mm)

1шт.

12

L30807

- bearing, .251" (6.37 mm)

1шт.

12

L30808

SPACER

- bearing, .252" (6.4 mm)

1шт.

12

L30809

SPACER

- bearing, .253" (6.42 mm)

1шт.

12

L30810

SPACER

- bearing, .259" (6.57 mm)

1шт.

12

L30811

SPACER

- bearing, .265" (6.73 mm)

1шт.

12

L30812

SPACER

- bearing, .271" (6.88 mm)

1шт.

12

L30813

SPACER

- bearing, .277" (7.03 mm)

1шт.

12

L30814

SPACER

- bearing, .283" (7.18 mm)

1шт.

13

L30832

ROLLER BEARING

- cone, inner (Forward bearing pinion cage)

1шт.

14

L30791

SHIM

- pinion bearing cage, .005" (0.12 mm)

1шт.

14

L30892

PLUG

SHIM - pinion bearing cage, .010" (0.25 mm)

1шт.

14

L30793

SHIM

- pinion bearing cage, .003" (0.07 mm)

1шт.

15

A15428

NUT

- thrust block adjusting screw

1шт.

16

L31659

BOLT,7/8" x 3 5/8"

SCREW - adjusting, thrust block (Drive gear)

1шт.

17

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

- pipe, sq. socket head (3/4" NPT) Carrier oil inspection

1шт.

18

L31656

CARRIER

ASSEMBLY - differential with caps, Includes: Ref. 19 - 24

1шт.

19

NSS

NOT SOLD SEPARAT

CARRIER - differential

1шт.

20

A15443

DOWEL

- differential, Serial Range: cap-carrier

4шт.

21

NSS

NOT SOLD SEPARAT

CAP - differential carrier

2шт.

22

A16782

WASHER

- differential, Serial Range: cap-carrier

4шт.

23

26-1488

BOLT,Hex, 7/8" - 9 x 5-1/2", Gr 8

- differential cap to carrier

4шт.

24

L30029

PIN

COTTER PIN - differential bearing, adjusting ring lock

2шт.

25

131-1236

LOCK NUT,5/8"-18, GC

NUT - hex., lock (5/8" - 18 NF) Carrier to housing stud

14шт.

26

L30678

WASHER

-, Serial Range: carrier-housing

14шт.
