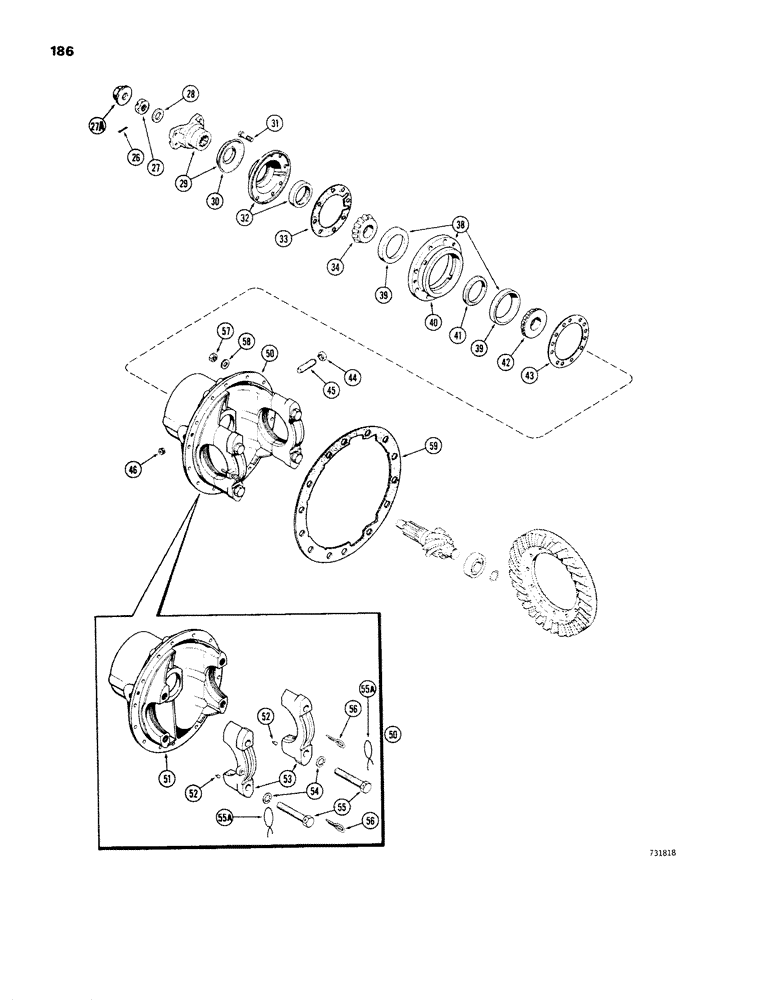

Запчасти Case W26B (186) - L50578 REAR AXLE DIFFERENTIAL, DRIVE SHAFT YOKE, CAGE AND CARRIER (06) - POWER TRAIN

L50231

DIFFERENTIAL

ASSY. - 5-2/7 to 1 ratio (Includes companion flange but not the carrier to hsg. gasket, studs & washers), Includes: Ref. 26 - 56

1шт.

26

132-58

COTTER PIN

- yoke nut (1/8" x 2-1/4") If used

1шт.

27

L30790

NUT - companion yoke (If used)

1шт.

27a

L35901

NUT

- special, lock (If used)

1шт.

28

L30787

WASHER

- companion yoke

1шт.

29

L30802

YOKE

- companion, w/slinger, Includes: Ref. 30

1шт.

30

NSS

NOT SOLD SEPARAT

SLINGER - oil, companion yoke

1шт.

31

26-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 8

HHCS - 1/2" - 13 NC x 1-1/2" (Cover to brg. case)

8шт.

32

L30799

COVER ASSY

COVER - pinion cage, forward bearing (W/oil seal)

1шт.

33

L30794

GASKET

- cover, pinion cage (Forward bearing)

1шт.

34

L30832

ROLLER BEARING

- cone, outer (Fwd. brg. pinion cage)

1шт.

38

L30820

CAGE

ASSY. - pinion forward bearing, Includes: Ref. 39 and 40

1шт.

39

NSS

NOT SOLD SEPARAT

CUP - forward bearing, pinion cage

2шт.

40

NSS

NOT SOLD SEPARAT

CAGE - pinion bearing

1шт.

41

L30803

SPACER

- bearing, .248" (6.2 mm)

1шт.

41

L30804

SPACER

- bearing, .249" (6.32 mm)

1шт.

41

L30805

SPACER

- bearing, .250" (6.35 mm)

1шт.

41

NLS

NO LONGER SERVICED

- bearing, .251" (6.37 mm)

1шт.

41

L30808

SPACER

- bearing, .252" (6.4 mm)

1шт.

41

L30809

SPACER

- bearing, .253" (6.42 mm)

1шт.

41

L30810

SPACER

- bearing, .259" (6.57 mm)

1шт.

41

L30811

SPACER

- bearing, .265" (6.73 mm)

1шт.

41

L30812

SPACER

- bearing, .271" (6.88 mm)

1шт.

41

L30813

SPACER

- bearing, .277" (7.03 mm)

1шт.

41

L30814

SPACER

- bearing, .283" (7.18 mm)

1шт.

42

L30832

ROLLER BEARING

- cone, inner (Fwd. brg.) pinion cage, 2.6875 I.D.

1шт.

43

L30791

SHIM

- pinion bearing cage, .005" (0.12 mm)

1шт.

43

L30792

SHIM

- pinion bearing cage, .010" (0.25 mm)

1шт.

43

L30793

SHIM

- pinion bearing cage, .003" (0.07 mm)

1шт.

44

A15428

NUT

- thrust block adj. screw

1шт.

45

L31659

BOLT,7/8" x 3 5/8"

SCREW - adj., thrust block (Drive gear)

1шт.

46

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

- pipe, sq. socket head (3/4" NPT) Carrier oil inspection

1шт.

50

L31656

CARRIER

ASSY. - differential w/caps, Includes: Ref. 51 - 56

1шт.

51

NSS

NOT SOLD SEPARAT

CARRIER - differential

1шт.

52

A15443

DOWEL

- diff., Serial Range: cap-carrier

4шт.

53

NSS

NOT SOLD SEPARAT

CAP - differential carrier

2шт.

54

A16782

WASHER

- diff., Serial Range: cap-carrier

4шт.

55

A16781

SCREW,7/8" - 9 x 5 1/2", Gr 8

BOLT - diff. brg. cap (Used with lockwire) When stock is exhausted, order 26-1488 bolt for service

4шт.

55

26-1488

BOLT,Hex, 7/8" - 9 x 5-1/2", Gr 8

- 7/8" - 9 NC x 5-1/2" (Used without lockwire) When replacing A16781 bolt, (2) 26-1488 bolts must be ordered for each differential cap

4шт.

55a

391-623

WIRE - lock, cap to carrier bolts (If used)

2шт.

56

L30029

PIN

COTTER PIN - diff. brg. adj. ring lock

2шт.

57

131-1236

LOCK NUT,5/8"-18, GC

NUT - hex., lock (5/8" - 18 NF) Carrier to housing stud

14шт.

58

L30737

WASHER

-, Serial Range: carrier-housing

14шт.

59

A15460

GASKET

-, Serial Range: carrier-housing

1шт.
