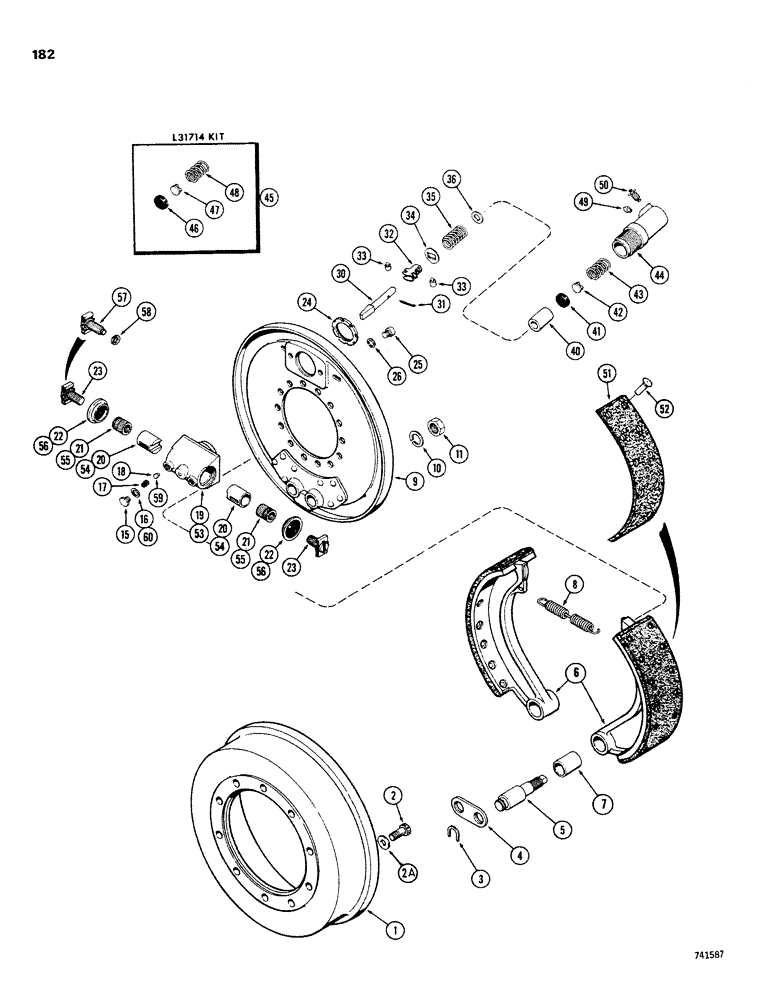

Запчасти Case W26B (182) - L40081 AND L50578 REAR AXLE BRAKES (06) - POWER TRAIN

1

L31611

BRAKE

DRUM - brake, wheel

2шт.

2

26-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

- mounting, brake drum to hub (5/8" - 11 NC x 1-1/2") Grade 8, the service bolt does not have holes

20шт.

2a

L30737

WASHER

- drum to hub (5/8")

20шт.

3

A13126

RING, SNAP,22.23mm ID x 33.34mm OD x 2.278mm Thk

"C" WASHER - anchor pin, rear brake

4шт.

4

A15009

ROD

LINK - anchor pin

2шт.

5

L31645

AXLE PIN

PIN - brake anchor

4шт.

6

L31621

BRAKE

SHOE ASSY. - brake w/lining, Includes: Ref. 7

4шт.

7

A15004

BUSHING

- brake shoe

1шт.

8

L31644

VALVE SPRING

SPRING - brake return

2шт.

9

L32963

LARGE PLATE

PLATE - backing, brake

2шт.

10

192-119

LOCK WASHER

WASHER - lock (7/8")

4шт.

11

25-1114

NUT,7/8"-14, G5

- hex., anchor pin (7/8" NF)

4шт.

L31650

ACTUATOR

ASSY - automatic brake adj. (Used before axle Sn. 5-73-0001) For service order L35904 actuator assembly, ref. nos. 53 thru 60, Includes: Ref. 15 - 23

2шт.

15

L31635

SCREW,9/16" - 12 x 7/16"

- plug

2шт.

16

L31634

GASKET

- plunger guide

2шт.

17

L31636

SPRING

- plunger

2шт.

18

L31633

GUIDE

- automatic adj. plunger

2шт.

19

L31628

HOUSING

- actuator, automatic adj.

1шт.

20

L35906

PLUNGER

- adjustment, auto. adjusting actuator

2шт.

21

L31630

ACTUATOR

- flat end to bolt use D73682 actuator

2шт.

22

L31632

SEAL

- auto. adj., Serial Range: hsg.-bolt

2шт.

23

L31631

BOLT

BOLT - L31630 actuator

2шт.

24

L31811

NUT

- spacer, brake

2шт.

25

L31646

BOLT (SPREADER)

BOLT - backing plate to actuator hsg.

4шт.

26

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 1/2"

4шт.

30

L31622

WEDGE

- brake

2шт.

31

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

32

L31624

RETAINER

- roller cage

2шт.

33

L31623

ROLLER

- brake wedge

4шт.

34

L31625

WASHER

- wedge retainer

2шт.

35

L31626

SPRING

- wedge return

2шт.

36

L31627

WASHER

- brake wedge

2шт.

L31638

CYLINDER

ASSY. - wheel brake (Not illustrated), Includes: Ref. 40 - 48

2шт.

40

L31640

PISTON - Stopmaster brake cyl.

1шт.

41

NSS

NOT SOLD SEPARAT

CUP - Stopmaster brake cyl.

1шт.

42

NSS

NOT SOLD SEPARAT

PLUG - Stopmaster brake cyl.

1шт.

43

NSS

NOT SOLD SEPARAT

SPRING - Stopmaster brake cyl.

1шт.

44

NSS

NOT SOLD SEPARAT

BODY - Stopmaster brake cyl.

1шт.

45

L31714

CYLINDER

KIT - brake rebuild (1-1/4" dia.), Includes: Ref. 46 - 48

1шт.

46

NSS

NOT SOLD SEPARAT

CUP - wheel cylinder

1шт.

47

NSS

NOT SOLD SEPARAT

PLUG - wheel cylinder

1шт.

48

NSS

NOT SOLD SEPARAT

SPRING - wheel cylinder

1шт.

49

L31648

SEAT

- tube, brake cylinder

2шт.

50

L31647

BLEED SCREW

SCREW - bleeder, brake cylinder

2шт.

L32958

BRAKE LINE

BRAKE KIT - riveted lining for one rear wheel (Use with L31621 brake shoes), Includes: Ref. 51 and 52

2шт.

51

NSS

NOT SOLD SEPARAT

LINING - brake shoe

2шт.

52

NSS

NOT SOLD SEPARAT

RIVET - brake lining mounting

50шт.

L35904

ACTUATOR

ASSY - automatic brake adj. (Axle Sn. 5-73-0001 and after), Includes: Ref. 53 - 58

2шт.

53

L35905

HOUSING

- actuator, auto adj.

1шт.

54

L35906

PLUNGER

- adjustment, auto adj. act

2шт.

L35907

ACTUATOR

ADJUSTER ASSEMBLY - flat end to bolt use D73682 actuator assembly, Includes: Ref. 55 - 58

2шт.

55

NSS

NOT SOLD SEPARAT

ACTUATOR - auto adj. actuator

1шт.

56

L31632

SEAL

- auto adj., Serial Range: housing-bolt

1шт.

57

L35908

BOLT

- auto. adj. actuator

1шт.

58

L35910

RING - lock, auto. adj. actuator

1шт.

D73682

ACTUATOR

ASSEMBLY - beveled end to bolt, Includes: Ref. 55 - 60

2шт.

55

D73683

ACTUATOR

1шт.

56

L31632

SEAL

1шт.

57

L35908

BOLT

1шт.

59

L35909

GUIDE - pawl, auto. adj.

2шт.

60

L31634

GASKET

- plunger guide

2шт.
