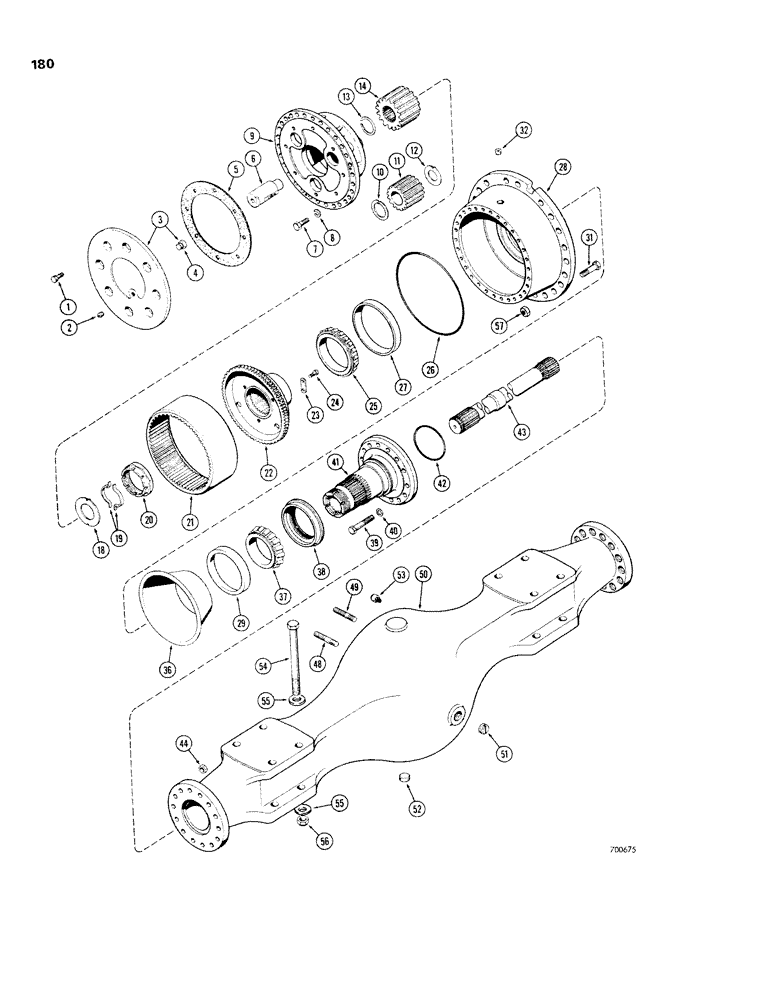

Запчасти Case W26B (180) - L40081 AND L50578 REAR AXLE PLANETARIES (06) - POWER TRAIN

1

L30675

SCREW

BOLT - planetary spider cover

16шт.

2

221-31

DRAIN PLUG,Sq Soc, 1/4"-18 NPTF

PLUG - pipe, planetary drive oil filler (1/4" sq. sckd. hd.)

2шт.

3

L34025

COVER ASSY

COVER - planetary gear spider, Includes: Ref. 4

2шт.

4

A12980

BUTTON

- thrust, drive point

1шт.

5

A14971

GASKET

- planetary gear spider cover

2шт.

6

M35408

RIVET

- planetary pinion

6шт.

7

26-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 8

HHCS - 1/2" - 13 NC x 1-5/8" (Planetary spider to hub)

60шт.

8

D47366

WASHER

- med. sect. lock (1/2"), Serial Range: Spider-hsg.

60шт.

9

L31618

U-JOINT SPIDER

SPIDER - planetary gear

2шт.

10

A14967

WASHER

- thrust, outer (Planetary pinion)

6шт.

11

A14977

GEAR

PINION - planetary, 16 teeth

6шт.

12

A19886

WASHER

- thrust, inner (Planetary pinion)

6шт.

13

A14969

RING, SNAP

SNAP RING - retaining, axle shaft

2шт.

14

A14976

GEAR

- sun, planetary (20 teeth)

2шт.

18

A14966

WASHER

- sun gear, planetary

2шт.

19

A14970

LOCK ASSY

LOCK - hub bearing nut

4шт.

20

A14965

NUT

- hub bearing

2шт.

21

A14975

GEAR

- ring, planetary (52 teeth)

2шт.

22

A14978

HUB

ASSY. - planetary ring gear w/sleeve

2шт.

23

A14964

LOCK ASSY

LOCK - planetary ring gear

8шт.

24

26-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- planetary ring gear (3/8" - 16 NC x 3/4") G8

16шт.

25

A14960

BEARING

- cone, outer (Hub)

2шт.

26

A19887

O-RING,11.5" ID x 11.68" OD x 0.103"

"O" RING - plan. gear spider to hub

2шт.

L31614

HUB CAP

HUB ASSY. - wheel (Not illustrated), Includes: Ref. 27 - 29

2шт.

27

A14961

BEARING CUP

CUP - cone bearing, outer (Hub)

1шт.

28

NSS

NOT SOLD SEPARAT

HUB - wheel

1шт.

29

A14985

BEARING CUP

CUP - cone bearing, inner (Hub)

1шт.

31

A13112

STUD

STUD - wheel hub

46шт.

32

221-678

DRAIN PLUG,Sq Soc, 3/4" NPT

PLUG - pipe, plan. drive oil drain (3/4" magnetic)

2шт.

36

A14980

SLINGER

- oil, wheel hub

2шт.

37

A14984

ROLLER BEARING

BEARING - cone, wheel hub (Inner)

2шт.

38

A14989

CAP

RETAINER ASSY. - oil seal, wheel hub (With seal) When stock is exhausted, order L34030 retainer for service

2шт.

38

L34030

OIL SEAL

RETAINER ASSY. - oil seal, wheel hub (Presealed)

2шт.

39

26-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8

HHCS - 5/8" - 11 NC x 2-3/4" (Spindle mounting)

28шт.

40

A16783

WASHER

- spindle to hsg. bolt

28шт.

41

A14983

SPINDLE

- wheel bearing

2шт.

42

A14986

O-RING,5" ID x 1 /8"

SEAL - ring, spindle to housing

2шт.

43

L31617

SHAFT

- axle drive, L.H.

1шт.

43

L31616

SHAFT - axle drive, R.H. (Not illustrated)

1шт.

L32731

HOUSING ASSEMBLY - axle, Includes: Ref. 48 - 52

1шт.

48

L30676

STUD

- short, Serial Range: carrier-housing

10шт.

49

L30677

STUD

- long, Serial Range: carrier-housing

4шт.

50

NSS

NOT SOLD SEPARAT

HOUSING - axle

1шт.

51

221-7

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

PLUG - pipe, square head (1-1/4" NPT) Housing, oil filler

1шт.

52

221-27

DRAIN PLUG,Sq Soc, 1 1/4"-11 1/2, NTPF

PLUG - pipe, sq. socket head (1-1/4" NPT) Housing drain

1шт.

53

A12928

BREATHER

- air, axle hsg.

1шт.

54

L57180

BOLT

BOLT - Special (Axle mounting)

16шт.

55

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- special, Serial Range: axle-trunnion

16шт.

56

131-1253

LOCK NUT,1"-14, GC

NUT, LOCK, 1"-14, GC

16шт.

57

A12522

WHEEL NUT

- wheel hub stud

46шт.
