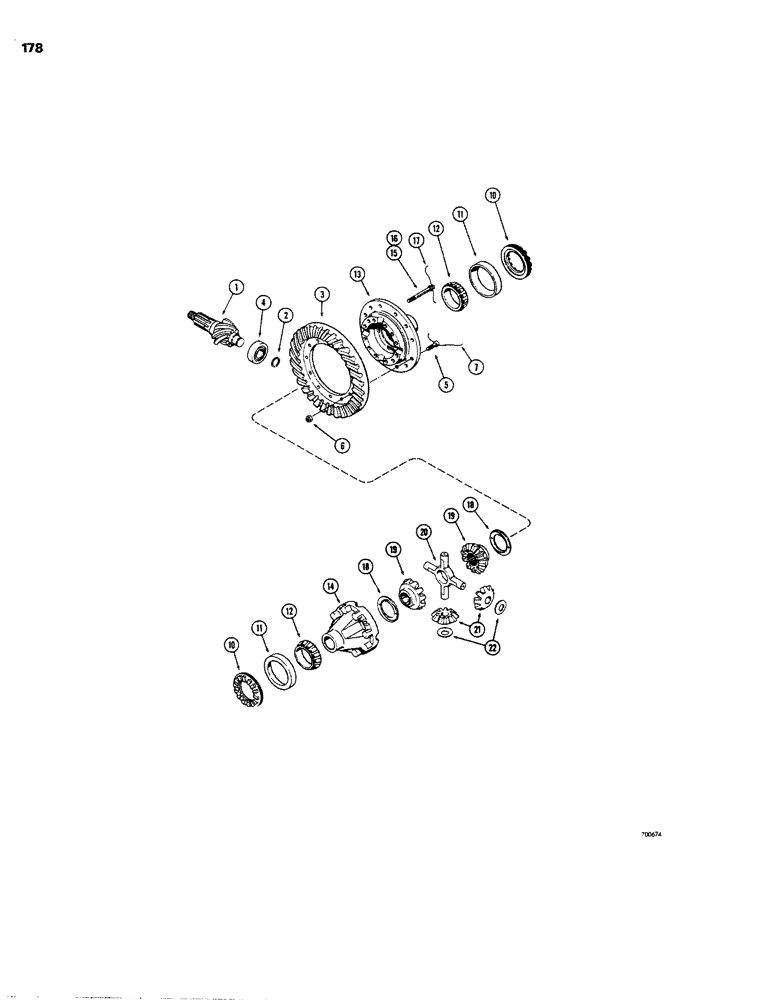

Запчасти Case W26B (178) - L40081 REAR AXLE DIFFERENTIAL, PINION, RING GEAR AND DIFFERENTIAL CASE (06) - POWER TRAIN

T39439

DIFFERENTIAL ASSY. - service, 5-2/7 to 1 ratio (Includes companion flange but not the carrier to hsg. gasket, studs and washers), Includes: Ref. 1 - 22

1шт.

T39438

RING GEAR

GEAR SET - pinion shaft & ring gear (Not illustrated), Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

PINION - drive

1шт.

2

A15442

LOCK

RING - pinion drive

1шт.

3

NSS

NOT SOLD SEPARAT

RING GEAR - pinion drive

1шт.

4

A15438

BALL BEARING,1.378" ID x 3.1436" OD x 0.8868"

BEARING - rear, drive pinion

1шт.

5

A16438

BOLT

- mtg., ring gear

12шт.

6

129-283

NUT

- mtg. bolt, ring gear (5/8" NC thick slotted)

12шт.

7

391-618

ELECTRICAL WIRE

WIRE - lock, ring gear mounting bolts

6шт.

10

A15465

RING

- adj., diff. bearing

2шт.

11

A15434

CUP

- bearing, diff. case

2шт.

L32865

DIFFERENTIAL

ASSEMBLY - 2-1/8" (54 mm) spline with bearing cage, Includes: Ref. 12 - 22

1шт.

12

A27024

ROLLER BEARING,3.25" ID x 1.3125"

CONE - bearing, differential case

2шт.

L32863

SHAFT, PLANETARY CAR

CASE ASSY. - differential (Not illustrated), Includes: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

CASE - diff. plain half

1шт.

14

NSS

NOT SOLD SEPARAT

CASE - diff., flange half

1шт.

15

L33887

BOLT (SPREADER)

BOLT - diff. case halves (1/2" NF, long) Used with lockwire (When stock is exhausted, order L35918 bolt for service)

8шт.

15

L35918

SCREW,12 Pt Hd, 1/2" - 13 x 3.50", Gr 8

BOLT - diff. case halves (Long) Used without lock- wire (Not shown)

8шт.

16

L33886

BOLT - diff. case halves (1/2" NF, short) Used with lockwire (When stock is exhausted, order L34063 bolt for service)

4шт.

16

L34063

BOLT

- diff. case halves (Short) Used without lock- wire (Not shown)

4шт.

17

391-620

LOCK,#16 Ga x 12"

WIRE - lock, diff. case bolts (If used)

4шт.

18

A15439

WASHER

- thrust, diff. side gear

2шт.

19

A15463

GEAR

- differential side

2шт.

20

A15471

U-JOINT SPIDER

SPIDER - differential

1шт.

21

A15462

GEAR

PINION - differnetial

4шт.

22

A15440

WASHER

- thrust, diff. pinion

4шт.
