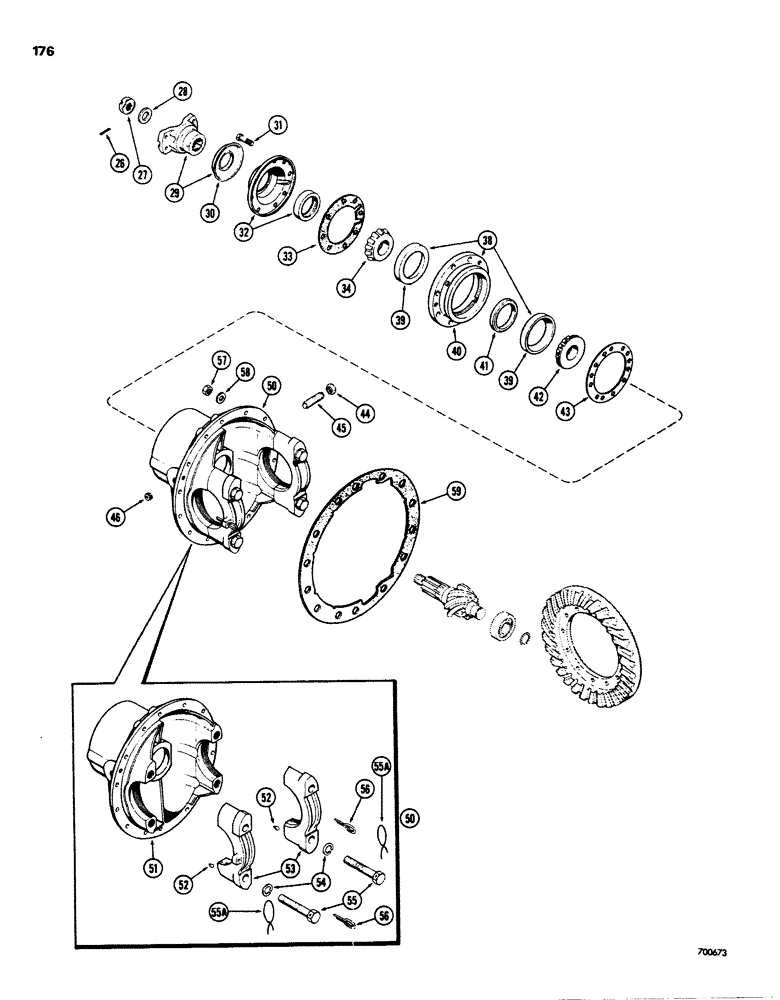

Запчасти Case W26B (176) - L40081 REAR AXLE DIFFERENTIAL, DRIVE SHAFT YOKE, CAGE AND CARRIER (06) - POWER TRAIN

T39439

DIFFERENTIAL ASSY. - 5-2/7 to ratio (Includes companion flange but not the carrier to hsg. gasket studs & washers), Includes: Ref. 26 - 56

1шт.

26

132-58

COTTER PIN

- companion yoke nut (1/8" x 2-1/4")

1шт.

27

D46765

LOCK NUT

NUT - companion yoke

1шт.

28

A15441

WASHER

- companion yoke

1шт.

29

L31606

JAW

YOKE - companion, w/slinger, Includes: Ref. 30

1шт.

30

A15464

SLINGER

- oil, companion yoke

1шт.

31

113-404

CAPSCREW

HHCS - 1/2" - 13 NC x 1-1/2" (Cover to brg. cage)

8шт.

32

A15470

COVER

- pinion cage, forward bearing (W/oil seal)

1шт.

33

A15461

GASKET

- cover, pinion cage (Forward bearing)

1шт.

34

A15435

ROLLER BEARING,2.125" ID x 1.3085"

BEARING - cone, outer (Fwd., brg., pinion cage)

1шт.

38

A15468

CAGE

ASSY. - pinion forward bearing, Includes: Ref. 39 and 40

1шт.

39

A15437

BEARING, CUP,63.525 mm ID x 140.055 mm OD x 23.52, 36.71 mm

CUP - forward bearing, pinion cage

2шт.

40

NSS

NOT SOLD SEPARAT

CAGE - pinion bearing

1шт.

41

A15448

SPACER

- bearing .220" (5.58 mm)

1шт.

41

A15449

SPACER

- bearing, .221" (5.61 mm)

1шт.

41

A15450

SPACER

- bearing, .222" (5.63 mm)

1шт.

41

A15451

SPACER

- bearing, .223" (5.66 mm)

1шт.

41

A15452

SPACER

- bearing, .224" (5.68 mm)

1шт.

41

A15453

SPACER

- bearing, .225" (5.71 mm)

1шт.

41

A15454

SPACER

- bearing, .231" (5.86 mm)

1шт.

41

A15455

SPACER

- bearing, .237" (6.01 mm)

1шт.

41

A15456

SPACER

- bearing, .243" (6.17 mm)

1шт.

41

A15457

SPACER

- bearing, .249" (6.32 mm)

1шт.

41

A15458

SPACER - bearing, .255" (6.47 mm)

1шт.

42

A15436

ROLLER BEARING,2.25" ID x 1.3085"

BEARING - cone, inner, pinion cage

1шт.

43

A15445

SHIM

- pinion bearing cage, .005" (0.12 mm)

1шт.

43

A15446

SHIM

- pinion bearing cage, .010" (0.25 mm)

1шт.

43

A15459

SHIM

- pinion bearing cage, .003" (0.07 mm)

1шт.

44

A15428

NUT

- thrust block adj. screw

1шт.

45

L31659

BOLT,7/8" x 3 5/8"

SCREW - adj., thrust block (Drive gear)

1шт.

46

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

- pipe, sq. socket head (3/4" NPT) Carrier oil inspection

1шт.

50

L31600

CARRIER

ASSY. - differential w/caps, Includes: Ref. 51 - 56

1шт.

51

NSS

NOT SOLD SEPARAT

CARRIER - differential

1шт.

52

A15443

DOWEL

- diff., Serial Range: cap-carrier

4шт.

53

NSS

NOT SOLD SEPARAT

CAP - differential carrier

2шт.

54

A16782

WASHER

- diff., Serial Range: cap-carrier

4шт.

55

A16781

SCREW,7/8" - 9 x 5 1/2", Gr 8

BOLT - diff. cap to carrier (Used with lockwire) When stock is exhausted, order 26-1488 bolt for service

4шт.

55

26-1488

BOLT,Hex, 7/8" - 9 x 5-1/2", Gr 8

- 7/8" - 9 NC x 5-1/2" (Used without lockwire) When ordered to replace A16781 bolt, (2) 26-1488 bolts must be ordered for each diff. cap

4шт.

55a

391-623

WIRE - lock, cap to carrier bolts (If used)

2шт.

56

A18196

HARDWARE

COTTER PIN - diff. brg. adj. ring lock

2шт.

57

131-1236

LOCK NUT,5/8"-18, GC

NUT - hex., lock (5/8" - 18 NF) Carrier to housing stud

14шт.

58

L30737

WASHER

-, Serial Range: carrier-housing

14шт.

59

A15460

GASKET

-, Serial Range: carrier-housing

1шт.
