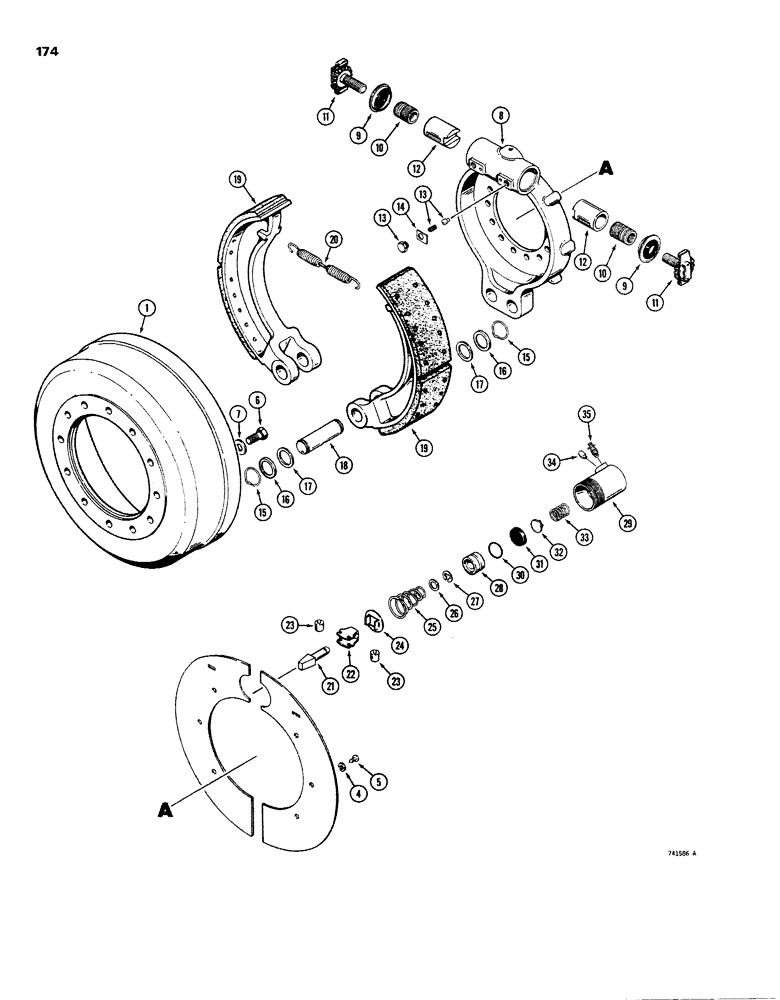

Запчасти Case W26B (174) - L58460 AND L73825 FRONT AXLE BRAKES (06) - POWER TRAIN

1

L31705

BRAKE

DRUM - brake, wheel

2шт.

L33900

LINING

KIT - brake, for 2 front wheels (Linings and rivets)

1шт.

3

L31637

SHIELD

- dust

4шт.

4

92-6

LOCK WASHER,3/8"

12шт.

5

26-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 8

HHCS - 3/8" - 16 NC x 1/2" (Dust shield to spider)

12шт.

6

26-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

HHCS - 5/8" - 11 NC x 1-3/4"

24шт.

7

L30737

WASHER

- 5/8", special hardened

24шт.

8

L36129

SPIDER - brake

1шт.

9

L31667

SEAL

- brake (Used in L58460 axle)

2шт.

10

L31669

ACTUATOR

- brake (Used in L58460 axle)

2шт.

11

L35763

BOLT

- adjusting (Used in L58460 axle)

2шт.

9

D73678

SEAL - brake (Used in L73825 axle)

2шт.

10

D73679

ACTUATOR - brake (Used in L73825 axle)

2шт.

11

D73680

BOLT

- adjusting (Used in L73825 axle)

2шт.

12

L31671

PLUNGER

- brake

2шт.

13

L35765

GUIDE

- brake (Includes a bolt, spring and pawl)

2шт.

14

L31675

LOCK

- bolt

2шт.

15

L31691

VALVE SPRING

SPRING - anchor pin, Stopmaster brakes

4шт.

16

L31690

RETAINER

- seal, anchor pin, Stopmaster brakes

4шт.

17

L31689

FELT

- anchor pin, stopmaster brakes

4шт.

18

L31688

PIN

- anchor, stopmaster brakes

2шт.

19

L33901

BRAKE

SHOE - brake with lining (Use L33900 kit)

2шт.

20

L36094

VALVE SPRING

SPRING - shoe return

1шт.

21

L31678

WEDGE

- brake

1шт.

22

L31679

CAGE

- brake wedge roller retainer

1шт.

23

L31680

ROLLER

- brake wedge

2шт.

24

L31684

WASHER

- brake wedge

1шт.

25

L31681

VALVE SPRING

SPRING - brake wedge return

1шт.

26

L31682

WASHER

- brake wedge

1шт.

27

A27785

CIRCLIP,#62, .480" Dia, E-Type

"E" WASHER - brake wedge

1шт.

L31685

CYLINDER

ASSEMBLY - brake wheel. front (Not illustrated), Includes: Ref. 28 - 33

1шт.

28

L31713

PISTON ASSY.

PISTON - wheel cylinder

1шт.

29

NSS

NOT SOLD SEPARAT

BODY - cylinder wheel brake

1шт.

L31716

GASKET KIT

CYLINDER KIT - rebuild, front brake (Not illustrated), Includes: Ref. 30 - 33

1шт.

30

NSS

NOT SOLD SEPARAT

O-RING - piston, wheel cylinder

1шт.

31

NSS

NOT SOLD SEPARAT

CUP - wheel cylinder

1шт.

32

NSS

NOT SOLD SEPARAT

PLUG - wheel cylinder brake

1шт.

33

NSS

NOT SOLD SEPARAT

SPRING - wheel cylinder brake

1шт.

34

L31692

FITTING

- tube seat, Stopmaster brakes

1шт.

35

L31693

BLEEDER,Bleeder

SCREW - bleeder, Stopmaster brakes

1шт.
