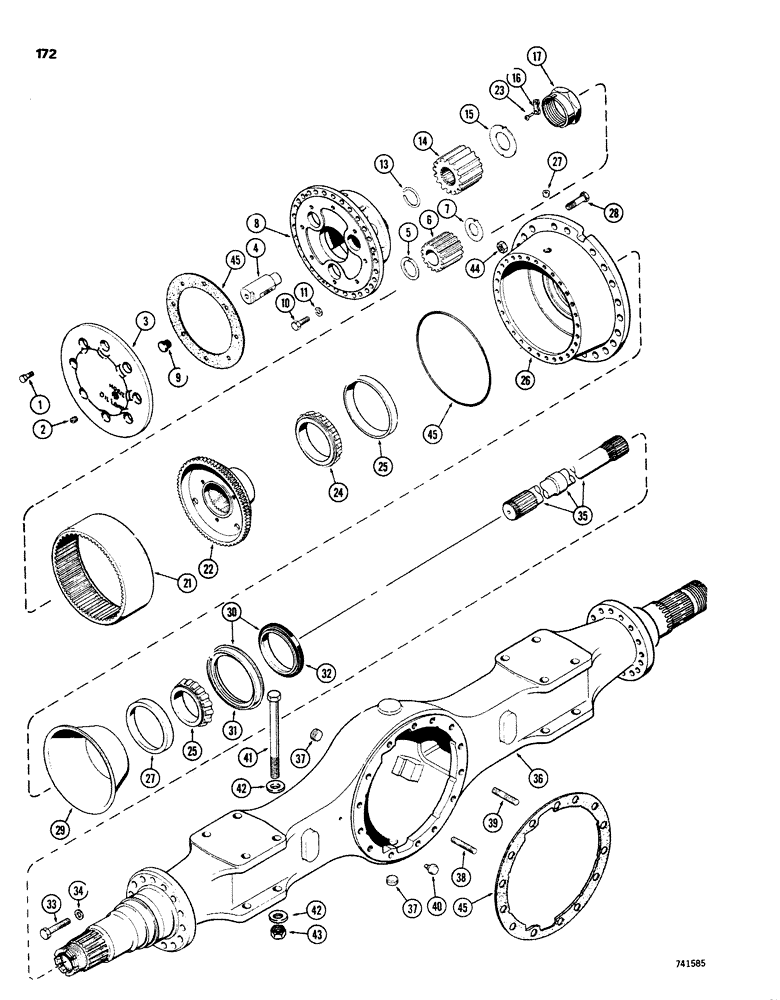

Запчасти Case W26B (172) - L58460 AND L73825 FRONT AXLE AND PLANETARY (06) - POWER TRAIN

1

L34034

BOLT

- planetary spider cover

16шт.

2

221-31

DRAIN PLUG,Sq Soc, 1/4"-18 NPTF

PLUG - pipe, planetary drive oil filler (1/4" square socket head)

2шт.

3

L36114

COVER

- planetary gear spider

2шт.

L36115

SPIDER ASSY.

SPIDER ASSEMBLY - planetary, Includes: Ref. 4 - 9

2шт.

4

L32837

SHAFT

- planetary pinion

3шт.

5

A14967

WASHER

- thrust, outer, planetary pinion

3шт.

6

L30854

GEAR

PINION - planetary, 16 teeth

3шт.

7

A19886

WASHER

- thrust, inner planetary pinion

3шт.

L36116

U-JOINT SPIDER

SPIDER AND BUTTON - planetary, Includes: Ref. 8 and 9

1шт.

8

L30862

U-JOINT SPIDER

SPIDER - planetary gear

1шт.

9

L36117

BUTTON

- thrust

3шт.

10

26-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

HHCS - 1/2"-13 NC x 2-1/2" (Planetary spider to hub)

60шт.

11

D47366

WASHER

- special (1/2")

60шт.

13

L30848

RING, SNAP

SNAP RING - retaining, axle shaft

2шт.

14

L30855

GEAR

- sun, planetary, 20 teeth

2шт.

15

L36118

WASHER

- sun gear, planetary

2шт.

16

L36119

LOCK ASSY

LOCK - hub bearing nut

2шт.

17

L36120

BEARING LOCK NUT

- hub bearing

2шт.

21

L36121

GEAR WHEEL

GEAR - ring, planetary

2шт.

22

L36122

HUB CAP

HUB - planetary ring gear

2шт.

23

L36124

SCREW,3/8" - 16 x 3/4", Gr 8

- lock

4шт.

24

L31699

TAPERED BEARING

- cone, hub, inner & outer

4шт.

L31696

HUB

ASSEMBLY - wheel (Not illustrated), Includes: Ref. 25 and 26

2шт.

25

L31698

BEARING CUP

CUP - cone bearing, wheel hub, 7-3/16 OD x 1-15/16 inch wide (183 x 49 MM)

2шт.

26

NSS

NOT SOLD SEPARAT

HUB - wheel

1шт.

27

221-678

DRAIN PLUG,Sq Soc, 3/4" NPT

PLUG - pipe, planetary drive oil drain (3/4")

2шт.

28

A13112

STUD

STUD - wheel hub

46шт.

29

L31709

SLINGER

- oil, wheel hub

2шт.

30

L33893

SEAL

RETAINER ASSEMBLY - oil seal, hub with seal, Includes: Ref. 31 and 32

2шт.

31

L36125

SLEEVE CYLINDER

SLEEVE - wear

1шт.

32

NSS

NOT SOLD SEPARAT

OIL SEAL - hub bearing

1шт.

33

26-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

(Brake mounting) Hex, 3/4"-10 x 2", G8

28шт.

34

L36067

WASHER

- brake mounting

28шт.

35

L31704

SHAFT

- axle drive, R.H. & L.H.

2шт.

L36126

HOUSING ASSEMBLY - axle (Not illustrated), Includes: Ref. 36 - 39

1шт.

36

NSS

NOT SOLD SEPARAT

HOUSING - axle

1шт.

37

221-27

DRAIN PLUG,Sq Soc, 1 1/4"-11 1/2, NTPF

PLUG - pipe, sq. socket head (1-1/4" NPT) Housing drain

2шт.

38

L30677

STUD

- long, Serial Range: carrier-housing

4шт.

39

L30676

STUD

- short, Serial Range: carrier-housing

10шт.

40

A12928

BREATHER

- air, axle housing

1шт.

41

L57180

BOLT

HHCS - 1" - 14 NF x 11", Serial Range: (Axle-frame)

8шт.

42

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- special

16шт.

43

131-188

LOCK NUT,1"-14, GB

NUT - hex., lock (1" - 14NF) Special

8шт.

44

A12522

WHEEL NUT

- stud, wheel hub

46шт.

45

M20704

ADHESIVE

GASKET MATERIAL - form in place

1шт.
