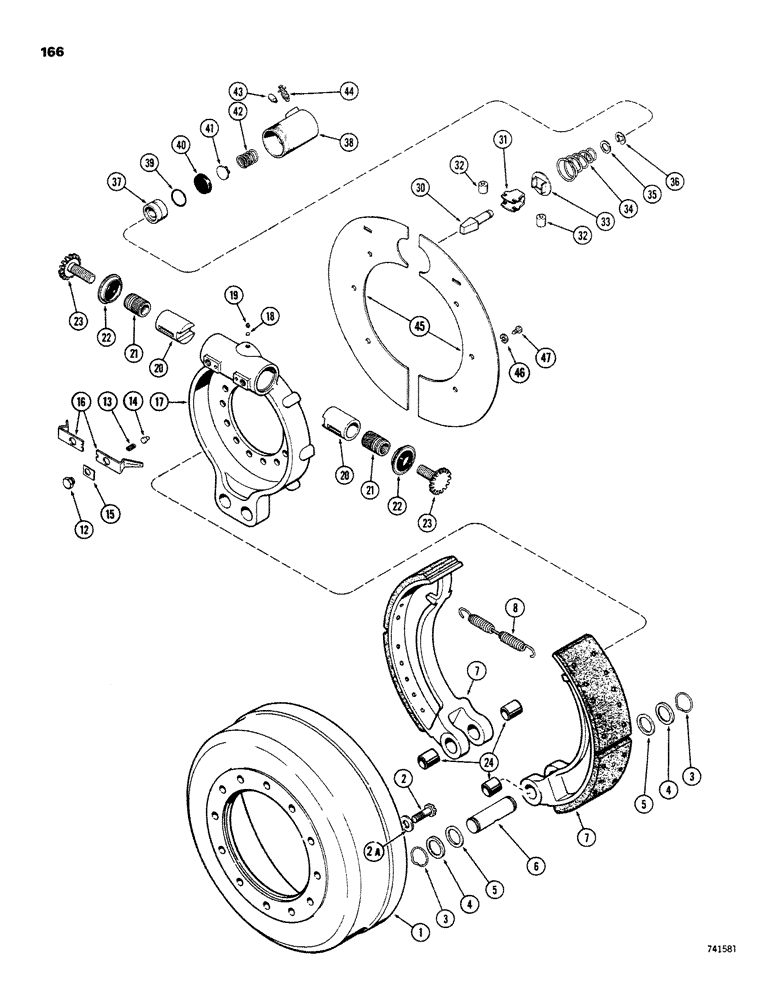

Запчасти Case W26B (166) - L40080 FRONT AXLE BRAKES (06) - POWER TRAIN

1

L31705

BRAKE

DRUM - brake, wheel

2шт.

2

26-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

- brake drum to hub (5/8" - 11 NC x 1-1/2") Grade 8

24шт.

2a

L30737

WASHER

-, Serial Range: drum-hub

24шт.

3

L31691

VALVE SPRING

SPRING - anchor pin, Stopmaster brakes

8шт.

4

L31690

RETAINER

- seal, anchor pin, Stopmaster brakes

8шт.

5

L31689

FELT

- anchor pin, Stopmaster brakes

8шт.

6

L31688

PIN

- anchor, Stopmaster brakes

4шт.

7

L31677

SHOE

- brake w/lining (Reline kit L31710)

4шт.

L33900

LINING

KIT - brake, for 2 front wheels (Use with L33901 brakes shoes) Riveted lining

1шт.

7

L33901

BRAKE

SHOE - brake w/lining (Riveted lining) Reline kit L33900

4шт.

L31710

LINING

KIT - brake, for one front wheel (Use with L31677 brake shoes) Bolt on lining (Not illustrated)

2шт.

8

L36094

VALVE SPRING

SPRING - stopmaster brake return

2шт.

12

L31676

BOLT

- stop master brake (Before axle Sn. 8-22-0001)

4шт.

13

L31674

SPRING - stop master brake (Before axle Sn. 8-22-0001)

4шт.

14

L31673

GUIDE

- stopmaster brake (Before axle Sn. 8-22-0001)

4шт.

L35765

GUIDE

ASSEMBLY - pawl (Axle Sn. 8-22-0001 and after), Includes: Ref. 12 - 14

4шт.

12

NSS

NOT SOLD SEPARAT

BOLT - brake

1шт.

13

NSS

NOT SOLD SEPARAT

SPRING - brake

1шт.

14

NSS

NOT SOLD SEPARAT

GUIDE - pawl

1шт.

15

L31675

LOCK

- brake

4шт.

16

L31672

DETENT - stopmaster brake (Before axle Sn. 8-22-001 only)

4шт.

17

L31666

SPIDER ASSY.

SPIDER - brake (Before axle SN. 8-22-0001)

2шт.

17

L35764

SPIDER ASSY.

SPIDER - brake (Axle Sn. 8-22-0001 and after)

2шт.

18

L31687

PLUG

- Stopmaster brakes

2шт.

19

181-443

SCREW - set, sq. hd. oval point (3/8" - 16 NC x 1/2")

2шт.

20

L31671

PLUNGER

- Stopmaster brake auto adjusting

4шт.

21

L31669

ACTUATOR

- auto, adj. brake

4шт.

22

L31667

SEAL

- brake, Stopmaster

4шт.

23

L31670

BOLT

- stop master auto adj. actuator (Before axle Sn. 8-22-0001)

4шт.

23

L35763

BOLT

- auto adj. auctuator (Axle Sn. 8-22-0001 and after)

4шт.

24

L32259

BUSHING

- brake shoe

8шт.

30

L31678

WEDGE

- brake

2шт.

31

L31679

CAGE

- brake wedge roller retainer

2шт.

32

L31680

ROLLER

- brake wedge

4шт.

33

L31684

WASHER

- brake wedge

2шт.

34

L31681

VALVE SPRING

SPRING - brake wedge return

2шт.

35

L31682

WASHER

- brake wedge

2шт.

36

A27785

CIRCLIP,#62, .480" Dia, E-Type

"E" WASHER - brake wedge

2шт.

L31685

CYLINDER

CYL. ASSY. - brake wheel, front (Not illustrated), Includes: Ref. 37 - 42

2шт.

37

L31713

PISTON ASSY.

PISTON - wheel cylinder

1шт.

38

NSS

NOT SOLD SEPARAT

BODY - cyl. wheel brake

1шт.

L31716

GASKET KIT

CYLINDER KIT - rebuild front brake (Not illustrated), Includes: Ref. 39 - 42

1шт.

39

NSS

NOT SOLD SEPARAT

"O" RING - piston, wheel cylinder

1шт.

40

NSS

NOT SOLD SEPARAT

CUP - wheel cylinder

1шт.

41

NSS

NOT SOLD SEPARAT

PLUG - wheel cyl. brake

1шт.

42

NSS

NOT SOLD SEPARAT

SPRING - wheel cyl. brake

1шт.

43

L31692

FITTING

- tube seat, Stopmaster brakes

2шт.

44

L31693

BLEEDER,Bleeder

SCREW - bleeder, Stopmaster brakes

2шт.

45

L31637

SHIELD

- dust

4шт.

46

92-6

LOCK WASHER,3/8"

12шт.

47

26-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 8

HHCS - 3/8" - 16 NC x 1/2" (Dust shield to spider)

12шт.
