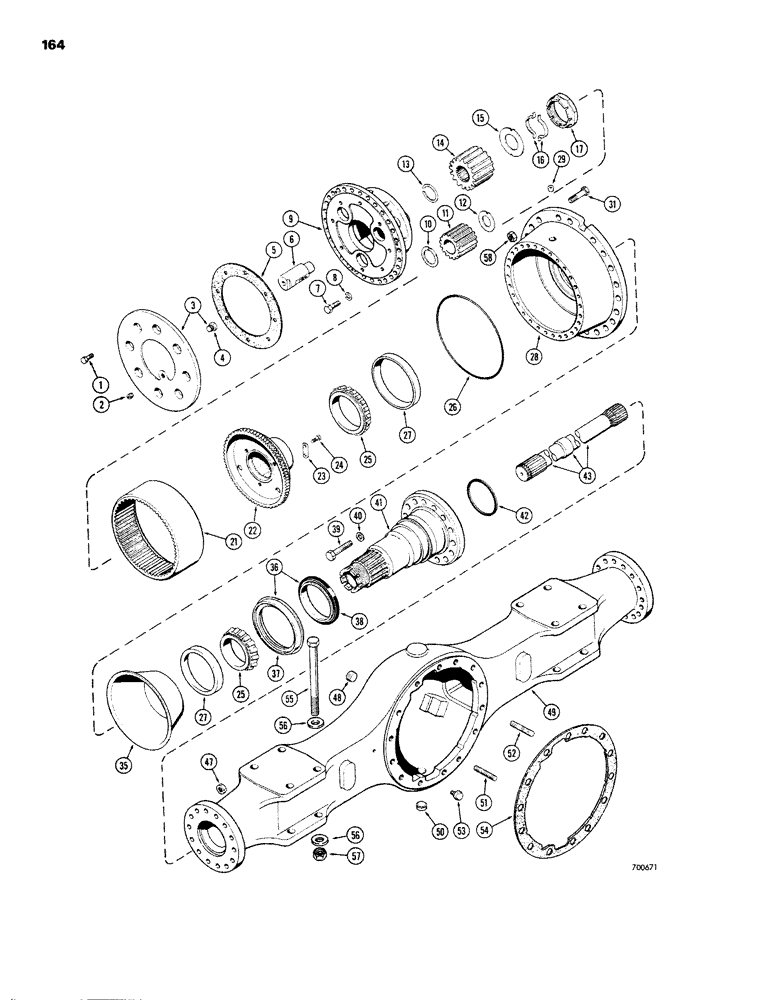

Запчасти Case W26B (164) - L40080 FRONT AXLE AND PLANETARY (06) - POWER TRAIN

1

L30675

SCREW

BOLT - planetary spider cover, Includes: Ref. 2

16шт.

2

221-31

DRAIN PLUG,Sq Soc, 1/4"-18 NPTF

PLUG - pipe, planetary drive oil filler (1/4" sq. sckt. hd.)

2шт.

3

L34025

COVER ASSY

COVER - planetary gear spider, Includes: Ref. 4

2шт.

4

A12980

BUTTON

- thrust, drive joint

1шт.

5

A14971

GASKET

- planetary gear spider cover

2шт.

6

L32837

SHAFT

- planetary pinion

6шт.

REPLACED BY N6191

1шт.

7

26-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 8

HHCS - 1/2" - 13 NC x 1-5/8" (Planetary spider to hub)

60шт.

8

D47366

WASHER

- special (1/2"), Serial Range: Spider-hsg.

60шт.

9

L30862

U-JOINT SPIDER

SPIDER - planetary gear

2шт.

10

A14967

WASHER

- thrust, outer, planetary pinion

6шт.

11

L30854

GEAR

PINION - planetary, 16 teeth

6шт.

12

A19886

WASHER

- thrust, inner, planetary pinion

6шт.

13

L30848

RING, SNAP

SNAP RING - retaining, axle shaft

2шт.

14

L30855

GEAR

- sun, planetary, 20 teeth

2шт.

15

L30847

WASHER

- sun gear, planetary

2шт.

WASHER MEASURES ABOUT 3.50 O.D. & I.D. 2.28

1шт.

16

A14970

LOCK ASSY

LOCK - hub bearing nut

4шт.

17

A14965

NUT

- hub bearing

2шт.

21

L30856

GEAR

- ring, planetary, 52 teeth

2шт.

22

L31707

HUB CAP

HUB - planetary ring gear

2шт.

23

A14964

LOCK ASSY

LOCK - planetary ring gear

8шт.

24

26-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- planetary ring gear (3/8" - 16 NC x 3/4") G8

16шт.

25

L31699

TAPERED BEARING

- cone, hub, inner & outer

4шт.

26

A19887

O-RING,11.5" ID x 11.68" OD x 0.103"

"O" RING - planetary gear spider to hub

2шт.

L31696

HUB

ASSY. - wheel (Not illus.), Includes: Ref. 27 and 28

2шт.

27

L31698

BEARING CUP

CUP - cone bearing, wheel hub, 7-3/16 OD x 1-15/16 inch wide (183 x 49 MM)

2шт.

28

NSS

NOT SOLD SEPARAT

HUB - wheel

1шт.

29

221-678

DRAIN PLUG,Sq Soc, 3/4" NPT

PLUG - pipe, planetary drive oil drain (3/4")

2шт.

31

A13112

STUD

STUD - wheel hub

46шт.

35

L31709

SLINGER

- oil, wheel hub

2шт.

36

L31700

RETAINER

ASSY. - oil seal, hub with seal (When stock is exhausted, order L33893 retainer for service)

2шт.

36

L33893

SEAL

RETAINER ASSY. - oil seal, hub with seal, Includes: Ref. 37 and 38

2шт.

Both of these numbers at one time subbed to S222368. This replacement was a one piece design. Wear sleeve from old two piece design should be discarded before using the one piece design. Current p/n is 185275a1 8/96 mg

1шт.

37

NSS

NOT SOLD SEPARAT

RETAINER - hub oil seal

1шт.

38

NSS

NOT SOLD SEPARAT

OIL SEAL - hub bearing

1шт.

39

28-1262

BOLT,Hex, 3/4" - 16 x 3-7/8", Gr 8

HHCS - 3/4" - 16 NF x 3-7/8" (Hub brg. spindle to hsg.)

28шт.

40

L36067

WASHER

-, Serial Range: spindle-housing

28шт.

41

L31708

SPINDLE - wheel bearing

2шт.

42

A14986

O-RING,5" ID x 1 /8"

SEAL - ring, spindle to housing

2шт.

43

L31704

SHAFT

- axle drive, R. H. & L.H.

2шт.

47

232-46112

LOCK NUT,3/4"-16, GC

NUT - hex., lock (3/4" - 16 NF) Spindle to housing

28шт.

L31694

HOUSING

ASSY. - axle (Not illust.), Includes: Ref. 48 - 52

1шт.

48

221-7

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

PLUG - pipe, sq. head (1-1/4" NPT) hsg. filler

1шт.

49

NSS

NOT SOLD SEPARAT

HOUSING - axle

1шт.

50

221-27

DRAIN PLUG,Sq Soc, 1 1/4"-11 1/2, NTPF

PLUG - pipe, sq. socket head (1-1/4" NPT) hsg. drain

1шт.

51

L30677

STUD

- long, Serial Range: carrier-housing

4шт.

52

L30676

STUD

- short, Serial Range: carrier-housing

10шт.

53

A12928

BREATHER

- air, axle hsg.

1шт.

54

A15460

GASKET

-, Serial Range: carrier-hsg.

1шт.

55

L57180

BOLT

BOLT - special

8шт.

56

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- special

16шт.

57

131-1253

LOCK NUT,1"-14, GC

NUT, LOCK, 1"-14, GC

8шт.

58

A12522

WHEEL NUT

- stud, wheel hub

46шт.
