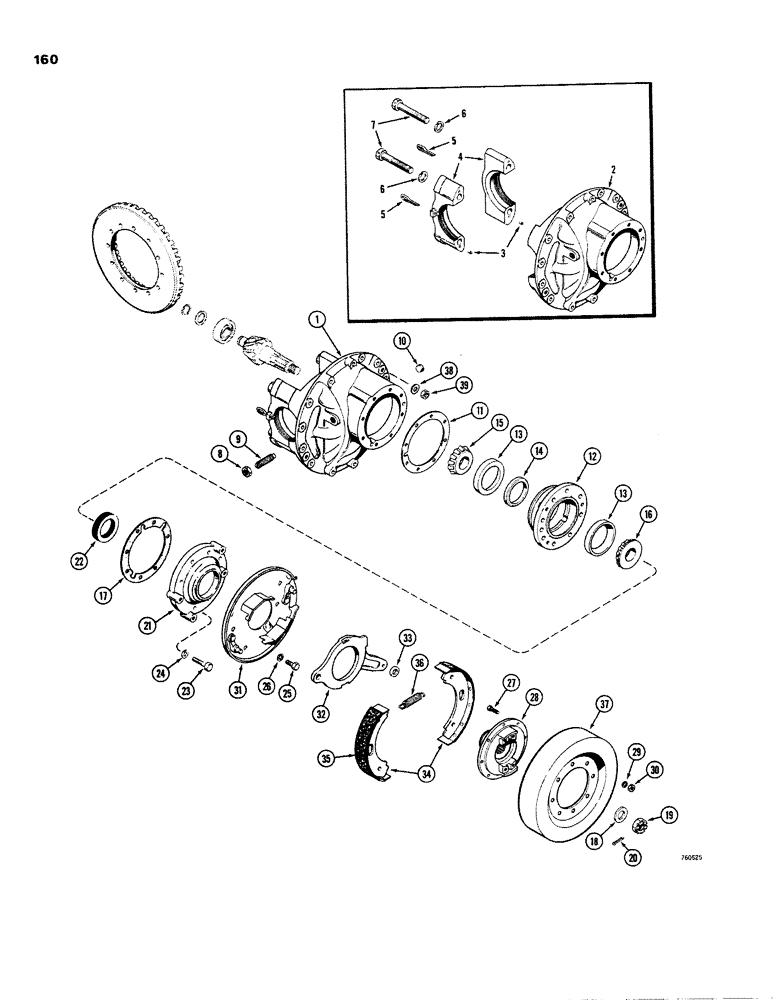

Запчасти Case W26B (160) - L40080 FRONT AXLE DIFFERENTIAL, DRIVE SHAFT FLANGE, PARKING BRAKE, CASE AND CARRIER (06) - POWER TRAIN

L32857

DIFFERENTIAL

ASSY. - service, 5-2/7 to 1 ratio (Doesn't include carrier to hsg. gasket, studs and washers) Must order and replace L30793 shim and L31651 cap when rebuilding, Includes: Ref. 1 - 20

1шт.

1

L31656

CARRIER

ASSEMBLY - differential with caps, Includes: Ref. 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

CARRIER - differential

1шт.

3

A15443

DOWEL

- differential bearing cap

4шт.

4

NSS

NOT SOLD SEPARAT

CAP - differential, carrier bearing assembly

2шт.

5

L30029

PIN

COTTER PIN - adjusting ring lock

2шт.

6

A16782

WASHER

- bolt, differential bearing cap

4шт.

7

A16781

SCREW,7/8" - 9 x 5 1/2", Gr 8

BOLT - differential bearing cap (Used with lockwire) When stock is exhausted, order 26-1488 bolt for service

4шт.

7

26-1488

BOLT,Hex, 7/8" - 9 x 5-1/2", Gr 8

- 7/8" - 9 NC x 5-1/2" (Used without lockwire) When ordered to replace A16781 bolt, (2) 26-1488 bolts must be ordered for each differential cap

4шт.

8

A15428

NUT

- locking, drive gear thrust block

1шт.

9

L31659

BOLT,7/8" x 3 5/8"

- drive gear thrust block

1шт.

10

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

- pipe, carrier filler (3/4" sq. socket head)

1шт.

11

L30791

SHIM

- pinion bearing cage .005" (.12 mm)

1шт.

11

L30792

SHIM

- pinion bearing. cage. .010" (.25 mm)

1шт.

11

L30793

SHIM

- pinion bearing cage. .003" (.07 mm)

1шт.

12

L30820

CAGE

- pinion bearing with cup assembly, Includes: Ref. 13

1шт.

13

L30821

BEARING CUP

- bearing, cage

2шт.

14

L30803

SPACER

- differential pinion cage, 248" (6.2 mm)

1шт.

14

L30804

SPACER

- differential pinion cage, .249" (6.32 mm)

1шт.

14

L30805

SPACER

- differential pinion cage, .250" (6.35 mm)

1шт.

14

NLS

NO LONGER SERVICED

- differential pinion cage, .251" (6.37 mm)

1шт.

14

L30808

SPACER

- differential pinion cage, .252" (6.4 mm)

1шт.

14

L30809

SPACER

- differential pinion cage, .253" (6.42 mm)

1шт.

14

L30810

SPACER

- differential pinion cage, .259" (6.57 mm)

1шт.

14

L30811

SPACER

- differential pinion cage, .265" (6.73 mm)

1шт.

14

L30812

SPACER

- differential pinion cage, .271" (6.88 mm)

1шт.

14

L30813

SPACER

- differential pinion cage, .277" (7.83 mm)

1шт.

14

L30814

SPACER

- differential pinion cage, .283" (7.18 mm)

1шт.

15

L30831

ROLLER BEARING

BEARING - cone, bevel pinion (Outer)

1шт.

THE I.D. OF BEARING IS 2.6875

1шт.

16

L30832

ROLLER BEARING

- cone, bevel pinion (Inner)

1шт.

17

L30794

GASKET

- pinion bearing cage cap

1шт.

18

L30787

WASHER

- pinion bearing

1шт.

19

L30790

NUT - pinion (Slotted) When stock is exhausted, order L35901 nut for service

1шт.

19

L35901

NUT

- pinion (Self locking) Not shown

1шт.

20

132-58

COTTER PIN

PIN - cotter (1/8" dia. x 2-1/4") If used

1шт.

21

L31651

CYLINDER END CAP

CAP - bearing, bevel pinion, Includes: Ref. 22

1шт.

22

A25153

OIL SEAL

- oil, bearing cap

1шт.

23

26-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 8

HHCS - 1/2" - 13 NC x 2-1/2"

8шт.

24

92-8

LOCK WASHER,1/2"

8шт.

25

26-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 8

HHCS - 1/2" - 13 NC x 1-3/8"

4шт.

26

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Brake assembly to carrier 1/2"

4шт.

27

L31720

BOLT (SPREADER)

BOLT - brake, Serial Range: drum-yoke

8шт.

28

L31652

YOKE - companion flange

1шт.

29

92-6

LOCK WASHER,3/8"

brake drum to yoke 3/8"

8шт.

30

129-524

NUT,3/8"-24, G8

- hex., acorn (3/8" - 24 NF)

8шт.

31

L30865

PLATE

- pawl & brake backing assembly

1шт.

32

L30870

LEVER

- parking brake operating cam

1шт.

33

A16642

WASHER

ROLLER - parking brake cam lever

1шт.

34

A12780

BRAKE SHOE

SHOE - parking brake with lining

2шт.

35

A12843

PACKAGE

LINING KIT - parking brake

1шт.

36

A12778

SPRING

- return, parking brake

2шт.

37

L30871

DRUM

- parking brake

1шт.

38

L30737

WASHER

-, Serial Range: carrier-housing

14шт.

39

131-1236

LOCK NUT,5/8"-18, GC

NUT - hex., lock (5/8" - 18 NC)

14шт.
