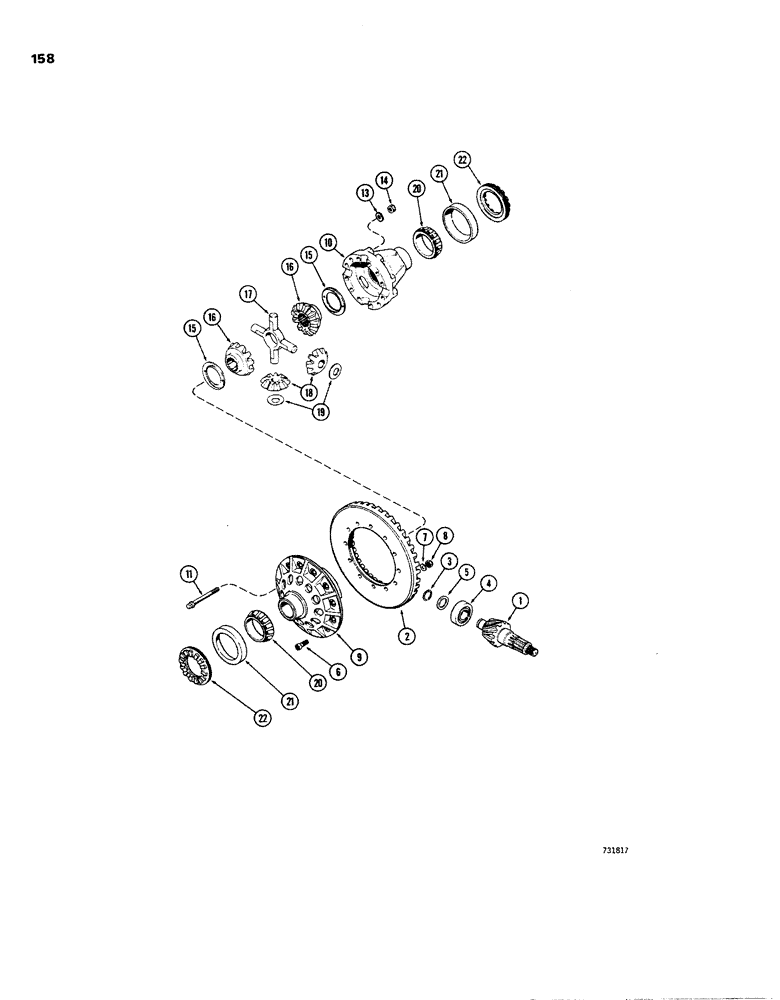

Запчасти Case W26B (158) - L40080 FRONT AXLE DIFFERENTIAL, PINION, RING GEAR AND DIFFERENTIAL CASE (06) - POWER TRAIN

L32857

DIFFERENTIAL

ASSY. - service, 5-2/7 to 1 ratio (Doesn't include carrier hsg. gasket, studs and washers) Must order and replace L30793 shim and L31651 cap when rebuilding, Includes: Ref. 1 - 22

1шт.

L36003

KIT

- gear set, Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

PINION - drive

1шт.

2

NSS

NOT SOLD SEPARAT

GEAR - ring

1шт.

3

B18206

SNAP RING,#87, Ext

Ring, Snap, , spigot bearing #87, Ext

1шт.

4

L30784

ROLLER BEARING

- spigot

1шт.

5

L30788

RETAINER

- spigot bearing

1шт.

6

L35920

BOLT (SPREADER)

BOLT - special

12шт.

7

L30737

WASHER

- special

12шт.

8

131-1137

NUT,5/8"-11, GC

- hex. (5/8" - 11 NC) Self-locking

12шт.

L31658

CABLE

DIFFERENTIAL ASSEMBLY - 2-1/4" (57 mm) - 23 splines, Mouse trap design (Not illustrated) Order L33897 differential for service, Includes: Ref. 9 - 19

1шт.

L33897

DIFFERENTIAL ASSEMBLY - 2-1/4" (57 mm) - 23 splines. Ribbed design (Not illustrated)., Includes: Ref. 9 - 19

1шт.

L31660

DIFFERENTIAL

CASE ASSEMBLY - differential (Not illustrated) Mouse trad design (When stock is exhausted, order L33896 case assy., (8) L33899 bolts and (4) L33898 bolts for service), Includes: Ref. 9 and 10

1шт.

L33896

DIFFERENTIAL

CASE ASSEBLY - differential (Not illustrated) Ribbed design, Includes: Ref. 9 and 10

1шт.

9

NSS

NOT SOLD SEPARAT

CASE - diff., plain half (Mouse trap design illustrated)

1шт.

10

NSS

NOT SOLD SEPARAT

CASE - diff., flange half (Mouse trap design illustrated)

1шт.

11

L30782

BOLT (SPREADER)

BOLT - long, diff, case (Used on mouse trap design models)

8шт.

11

L33899

BOLT

BOLT - long, diff. case (Used on ribbed design models) When stock is exhausted, order 26-1060 bolt for service

8шт.

11

26-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 8

- 5/8" - 11 NC x 3-3/4" (Used on ribbed design models)

8шт.

11

L30783

BOLT - short, diff. case (Used on mouse trap designed models)

4шт.

11

L33898

BOLT

- short, diff. case (Used on ribbed design models) When stock is exhausted, order 26-1044 bolt for service

4шт.

11

26-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8

- 5/8" - 11 NC x 2-3/4" (Used on ribbed design models)

4шт.

12

391-620

LOCK,#16 Ga x 12"

WIRE - #16 x 12" (If used) Not shown

4шт.

13

L30737

WASHER

- diff. case

12шт.

14

129-283

NUT

- hex., sltotted (5/8" - 18 NF) If used

12шт.

15

L30786

WASHER

- diff. side gear

2шт.

16

L30797

GEAR WHEEL

GEAR - side, differential

2шт.

17

L31665

DIFF. SPIDER

SPIDER - differential

1шт.

18

L31663

PINION

- differential

4шт.

19

L31664

WASHER

- thrust, diff. pinion gear

4шт.

20

L30834

ROLLER BEARING

CONE - diff. bearing

2шт.

21

F65706

BEARING CUP

CUP - bearing, diff. case

2шт.

22

L30795

RING

- adj. diff. bearing

2шт.
