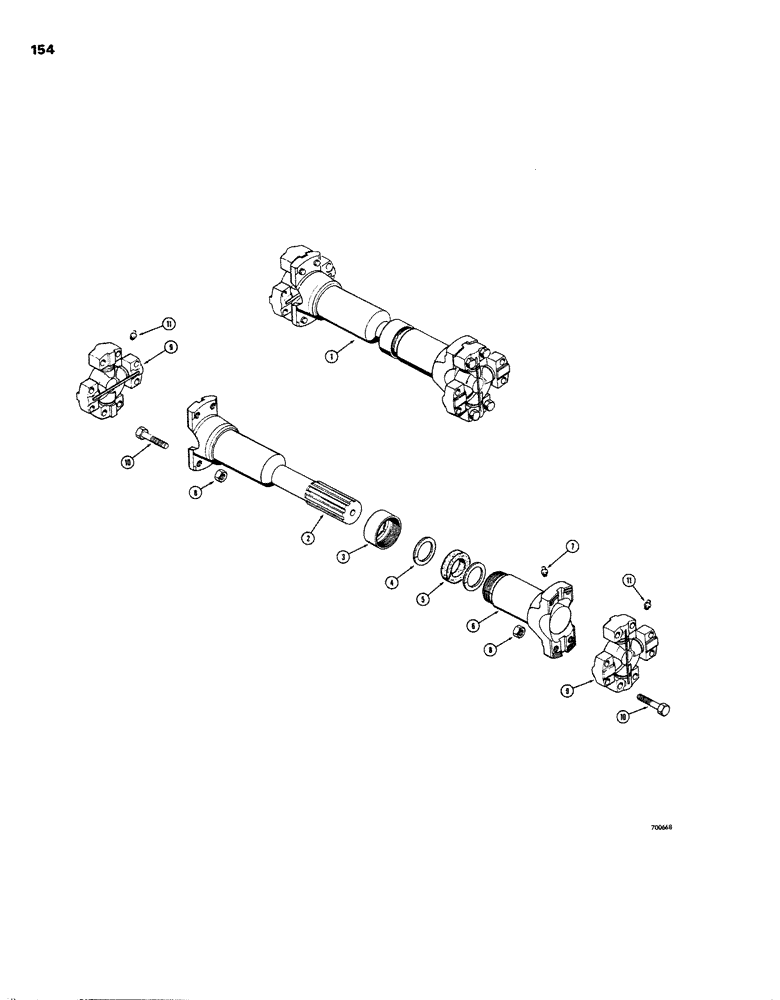

Запчасти Case W26B (154) - REAR AXLE DRIVE SHAFT (06) - POWER TRAIN

1

L40071

SHAFT

ASSEMBLY - drive, rear axle (Used before tractor Sn. 9107461), Includes: Ref. 2 - 11

1шт.

1

L48986

SHAFT

ASSEMBLY - drive, rear axle (Tractor Sn. 9107461 and after as production item, prior to Sn. 9107461 as service replacement) When stock is exhausted, order L54455 driveshaft for service, Includes: Ref. 2 - 11

1шт.

1

L54455

SHAFT

ASSEMBLY - drive, rear axle (Tractor Sn. 9107461 and after as production item, prior to Sn. 9107461 as service replacement), Includes: Ref. 2 - 11

1шт.

2

L32828

YOKE

- splined (L40071 drive shaft only)

1шт.

2

L33842

FORK

YOKE - splined (L48986 or L54455 drive shaft only)

1шт.

L32434

KIT

- replacement, dust cap, Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

DUST CAP - shaft

1шт.

4

L31792

WASHER

- dust cap retainer

2шт.

5

L31791

WASHER

- split, felt

1шт.

6

L31789

YOKE

- slip

1шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

L31782

BALL JOINT

KIT - replacement, universal joint, Includes: Ref. 8 - 11

2шт.

8

25-158

JAM NUT,Jam, 1/2"-20, G5

- hex, jam (1/2" - 13 NC)

8шт.

9

NSS

NOT SOLD SEPARAT

JOINT - universal

1шт.

10

L31788

BOLT

- special, universal joint

8шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.
