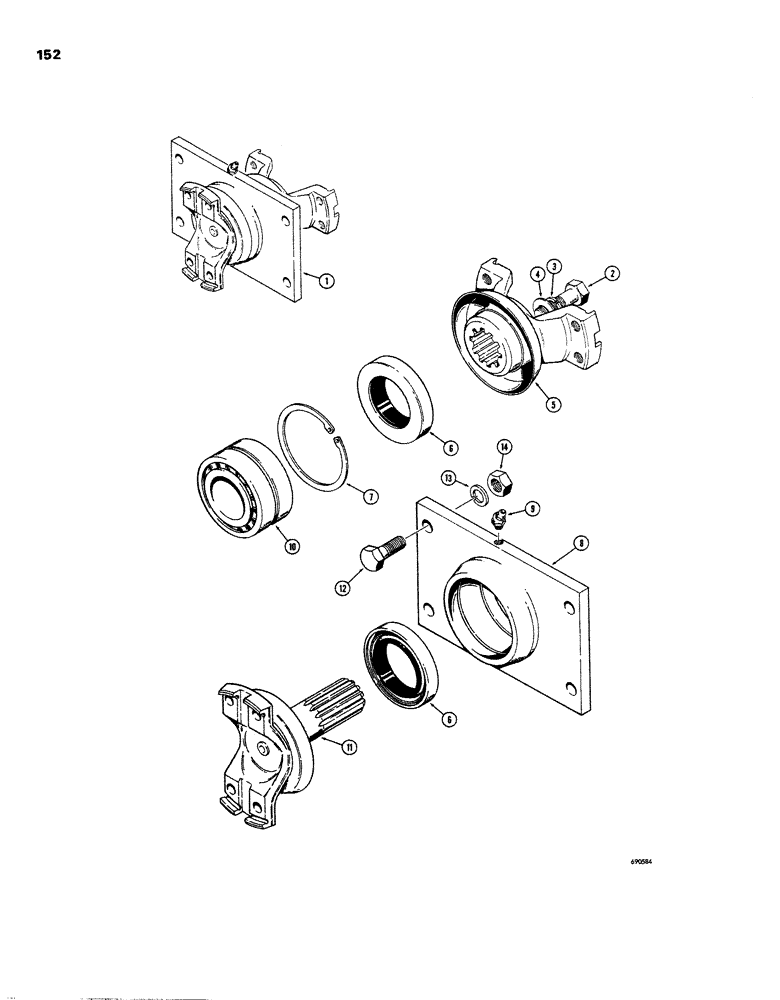

Запчасти Case W26B (152) - L13899 FRONT DRIVE CENTER BEARING (06) - POWER TRAIN

1

L13899

CYLINDER END CAP

CENTER BEARING ASSEMBLY - front drive shaft, Includes: Ref. 2 - 11

1шт.

2

16-1428

BOLT

HHCS - 7/8" - 14 NF x 1-3/4"

1шт.

3

192-29

LOCK WASHER,7/8"

7/8"

1шт.

4

L15601

WASHER

- special

1шт.

5

L13906

YOKE

FLANGE - drive shaft (Front)

1шт.

6

L13902

SEAL

- oil

2шт.

7

L13903

SNAP RING,3.562", Int, #354

Ring, Snap, , brg 3.562", Int, #354

1шт.

8

L13900

HOUSING

- center bearing

1шт.

9

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 45 degrees (1/4" NPT)

1шт.

10

L13901

BEARING ASSY

- center, roller type

1шт.

11

L13905

YOKE

FLANGE - drive shaft, splined (Rear)

1шт.

12

14-1036

BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 5

(Center bearing to front frame) Hex, 5/8"-18 x 2 1/4", G5

4шт.

13

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

14

25-1110

NUT,5/8"-18, G5

- hex. (5/8" - 18 NF)

4шт.
