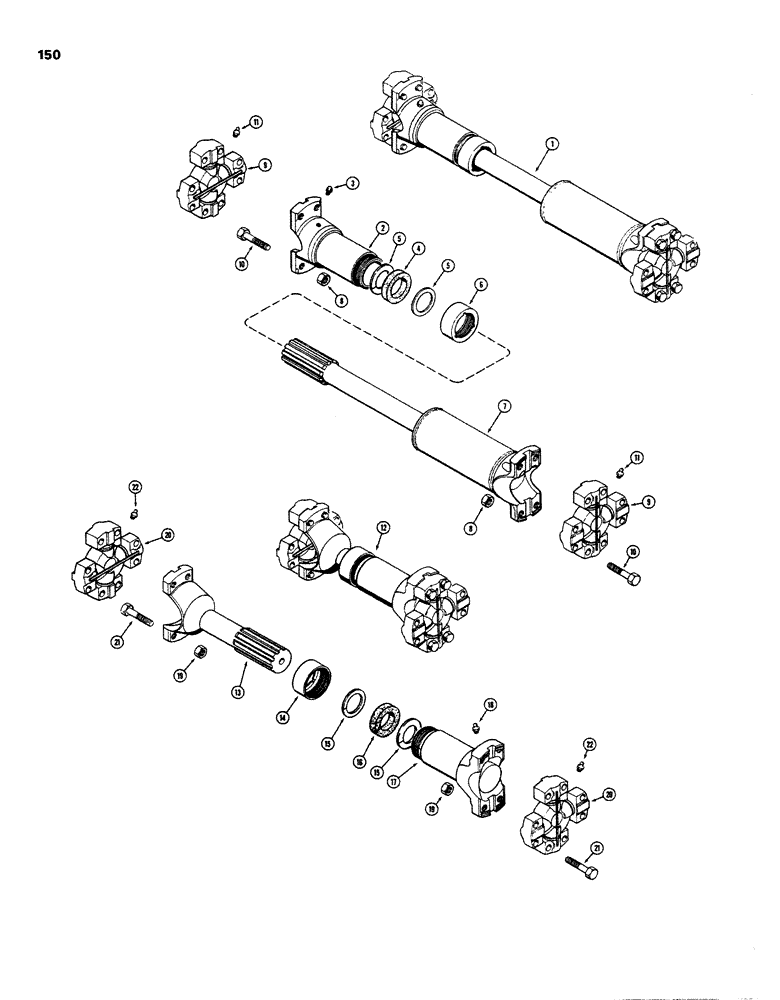

Запчасти Case W26B (150) - FRONT AXLE DRIVE SHAFT (AXLE END) (06) - POWER TRAIN

1

13909

SHAFT ASSEMBLY - drive, front axle (When stock is ex- hausted, order L54456 drive shaft for service), Includes: Ref. 2 - 11

1шт.

1

L54456

SHAFT

ASSEMBLY - drive, front axle, Includes: Ref. 2 - 11

1шт.

2

L31789

YOKE

- slip

1шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

L32434

KIT

- repair, dust cap, Includes: Ref. 4 - 6

1шт.

4

L31791

WASHER

- split, felt

1шт.

5

L31792

WASHER

- dust cap retainer

2шт.

6

L31790

DUST CAP

- shaft

1шт.

7

L31794

YOKE

- splined tube

1шт.

L31782

BALL JOINT

KIT - replacement, universal joint, Includes: Ref. 8 - 11

2шт.

8

25-158

JAM NUT,Jam, 1/2"-20, G5

- hex, jam (1/2" - 13 NC)

8шт.

9

NSS

NOT SOLD SEPARAT

JOINT - universal

1шт.

10

L31788

BOLT

- special, universal joint

8шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

12

L13932

SHAFT

ASSEMBLY - drive, front axle, L13932, Includes: Ref. 13 - 22

1шт.

13

L31793

YOKE

- splined, L13932 front axle drive shaft

1шт.

14

L31790

DUST CAP

- shaft, L13932 front axle drive

1шт.

15

L31792

WASHER

- dust cap retainer, L13932 front axle drive shaft

2шт.

16

L31791

WASHER

- split, felt, L13932 front axle drive shaft

1шт.

17

L31789

YOKE

- slip, L13932 front axle drive shaft

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT), L13932 front axle drive shaft

1шт.

L31782

BALL JOINT

KIT - replacesment, universal joint, L13932 front axle drive shaft, Includes: Ref. 19 - 22

2шт.

19

25-158

JAM NUT,Jam, 1/2"-20, G5

- hex, jam (1/2" - 13 NC), L13932 front axle drive shaft

8шт.

20

NSS

NOT SOLD SEPARAT

JOINT - universal, L13932 front axle drive shaft

1шт.

21

L31788

BOLT

- special, universal joint, L13932 front axle drive shaft

8шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT), L13932 front axle drive shaft

1шт.
