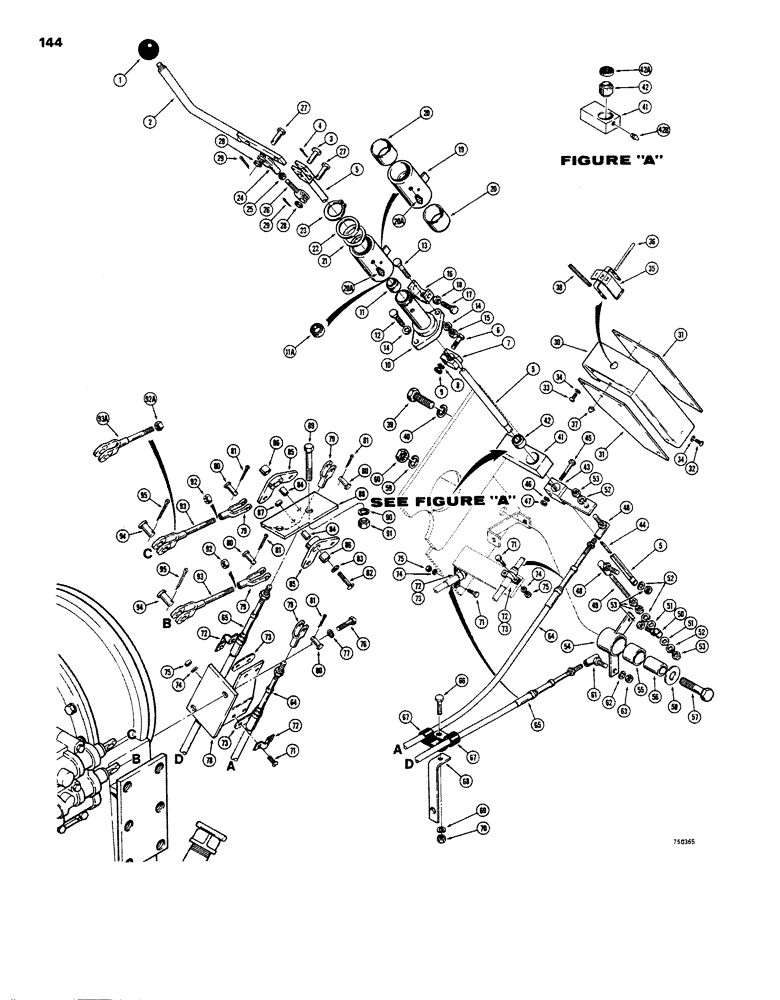

Запчасти Case W26B (144) - TRANSMISSION CONTROL PARTS, TRACTOR SN. 9113570 AND AFTER (06) - POWER TRAIN

1

A23885

KNOB

- transmission shift lever

1шт.

2

L46921

LEVER - transmission shift control

1шт.

3

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

4

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

5

L46931

SHAFT

- transmission control

1шт.

6

13-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"-20 x 1 1/2", G5

1шт.

7

L43647

CAM - neutral start switch

1шт.

8

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

9

25-104

NUT,1/4"-20, G5

1шт.

L51990

FUNNEL

POST ASSEMBLY - shift collar and control shaft support, Includes: Ref. 10 - 11A

1шт.

10

NSS

NOT SOLD SEPARAT

POST - shift collar and control shaft

1шт.

11

L51991

CYLINDER END CAP

BUSHING - self-alignment, control shaft

1шт.

11a

L51984

SEAL

SEAL - collar

1шт.

12

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

13

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- 5/16"-18 NC x 1-1/2"

1шт.

14

92-5

LOCK WASHER,5/16"

2шт.

15

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

16

L43503

BRACKET - stop, shift lever

1шт.

17

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

HHCS - 5/16" - 24 NF x 1" (Shift lever stop)

2шт.

18

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex, jam (5/16" - 24 NF)

2шт.

L50664

COLLAR

ASSEMBLY - shift lever, Includes: Ref. 19 and 20

1шт.

19

NSS

NOT SOLD SEPARAT

COLLAR - shift lever

1шт.

20

L43507

CYLINDER END CAP

BUSHING - shift collar

2шт.

20a

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight (1/4" - 28 NF)

1шт.

21

VT3996

SHIM - shift collar. .010" (.25 mm)

1шт.

21

VT3997

SHIM,.010" Thk

- shift collar. .050" (1.2 mm)

1шт.

22

L43506

WASHER - shift collar

1шт.

23

L32161

SNAP RING,#131, Ext

Ring, Snap, , shift collar #131, Ext

1шт.

L46923

LINK ASSEMBLY - shift lever to collar, Includes: Ref. 24 - 26

1шт.

24

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - shift lever

1шт.

25

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam (3/8" - 24 NF)

1шт.

26

VR2694

YOKE - rod end (3/8")

1шт.

27

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

2шт.

28

95-6

WASHER,3/8"

- plain () If used (14 gauge) 3/8"

2шт.

29

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

30

L50660

COVER

- shift indicator

1шт.

31

L50661

LARGE PLATE

PLATE - side, shift indicator cover

2шт.

32

173-75

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

- machine, round head (#8 - 32 NC x 3/8")

3шт.

33

187-20

SCREW - self-tapping (#8 - 32 NC)

4шт.

34

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

7шт.

35

L47033

PLATE

- mounting, shift decal

1шт.

36

L47029

PIN - pivot, decal plate

1шт.

37

131-419

NUT - acorn, push-on

2шт.

38

L47153

VALVE SPRING

SPRING - return, decal plate

1шт.

39

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

40

92-8

LOCK WASHER,1/2"

1шт.

L51988

BLOCK ASSY.

- mtg., control shaft (1-1/8" O.D. bushing), Includes: Ref. 41 - 42A

1шт.

41

NSS

NOT SOLD SEPARAT

BLOCK - mounting, control shaft

1шт.

42

L51991

CYLINDER END CAP

BUSHING - self-alignment, control shaft (1-1/8" O.D.)

1шт.

42a

L51984

SEAL

SEAL - collar

1шт.

42b

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight (1/4" - 28 NF) If used

1шт.

43

L46930

LEVER - control, forward-reverse

1шт.

44

F65828

KEY

- control, Serial Range: lever-shaft

1шт.

45

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- 5/16"-18 NC x 1-1/2"

1шт.

46

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

47

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

48

A10329

BALL JOINT,1/4" - 28 x 1"

JOINT - ball, bellcrank and cable to control shaft

2шт.

49

L43850

ROD

- connecting, upper to lower joint

1шт.

50

L43672

JOINT TURNING

JOINT - ball, control shaft to bellcrank (Lower)

1шт.

51

95-4

WASHER,1/4"

- plain () 1/4"

2шт.

52

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

5шт.

53

25-154

JAM NUT,Jam, 1/4"-28, G5

- hex, jam (1/4"-28 NF)

6шт.

L43227

BELLCRANK ASSEMBLY - range control, Includes: Ref. 54 and 55

1шт.

54

NSS

NOT SOLD SEPARAT

BELLCRANK - range control

1шт.

55

F53645

BEARING

BUSHING - pivot

1шт.

56

L43225

SPACER

- bellcrank

1шт.

57

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

1шт.

58

95-8

WASHER,1/2"

plain 1/2"

1шт.

59

92-8

LOCK WASHER,1/2"

1шт.

60

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

1шт.

61

A10329

BALL JOINT,1/4" - 28 x 1"

JOINT - ball, Serial Range: bellcrank-cable

1шт.

62

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

63

25-154

JAM NUT,Jam, 1/4"-28, G5

- hex, jam (1/4"-28 NF)

1шт.

64

L54070

CABLE PULLING GRIP

CABLE- control, transmission forward-reverse

1шт.

65

L54069

CABLE PULLING GRIP

CALBE - control, transmission range

1шт.

66

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

67

49838

CLAMP

- cable

2шт.

68

L46709

BRACKET - mounting, clamp

1шт.

69

92-6

LOCK WASHER,3/8"

1шт.

70

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

71

169-102

SCREW,Sl Fil Hd, #10 - 24 x 1"

- machine, slotted head (#10 - 24 NC x 1")

8шт.

72

L40314

CLAMP

- cable

4шт.

73

L40315

SHIM,5.55mm ID x 12.7mm OD x 2.28mm Thk

SPACER - cable clamp

4шт.

74

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

8шт.

75

129-7

NUT,Hex, #10 - 24

- hex. (#10 - 24 NC)

8шт.

76

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

2шт.

77

92-6

LOCK WASHER,3/8"

2шт.

78

L54072

BRACKET - shift control (At transmission)

1шт.

79

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

YOKE - cable end to bellcrank

4шт.

80

141-2

CLEVIS PIN,1/4" x .770"

PIN - clevis (1/4")

4шт.

81

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

4шт.

82

77-424

SCREW

- machine, truss head (1/4" - 20 NC x 1-1/2")

2шт.

83

95-4

WASHER,1/4"

- standard wrot () 1/4"

2шт.

84

L54059

SPACER

- bellcrank

2шт.

85

L54058

ARM ASSY.

BELLCRANK - shift control, rear, Includes: Ref. 86

2шт.

86

A35428

CRANKSHAFT BEARING,0.504" ID x 0.6285" OD x 5"

BUSHING - bellcrank

1шт.

87

131-2

NUT,1/4"-20, GB

NUT - hex., lock (1/4" - 20 NC)

2шт.

88

L54039

BRACKET - mounting, bellcrank

1шт.

89

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

2шт.

90

92-8

LOCK WASHER,1/2"

2шт.

91

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

2шт.

92

25-144

JAM NUT,Jam, 1/4"-20, G5

- hex., jam (1/4" - 20 NC ) Used with L54038 rod

2шт.

92a

25-154

JAM NUT,Jam, 1/4"-28, G5

- hex, jam (1/4" - 28 NF), Used with L57558

2шт.

93

L54038

ROD

- without backup alarm

2шт.

93a

L57558

ROD

- with backup alarm and as service replacement on other models

2шт.

94

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis, (1/2") connecting rod to control valve

2шт.

95

132-26

COTTER PIN

PIN - cotter, 1/8" dia. x 1"

2шт.
